Lamello 125254 Clamex S-20 Drilling And Alignment Jig

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Clamex S-20 is a detachable connector for the Lamello system for material thicknesses from 16 mm and is fastened in the groove with screws. The symmetric 4 mm grooves can be created with any biscuit joiner. Clamex S-20 is connected to the counterpart with a lever and has a lateral installation tolerance. It requires no adhesive, enables aesthetic connections at all angles and is ideal for fixed or detachable connections.

  • Open the connection time and time again with the rotating lever
  • Use with any biscuit joiner
  • Narrow connector allows installation into the edge in materials from 8 mm

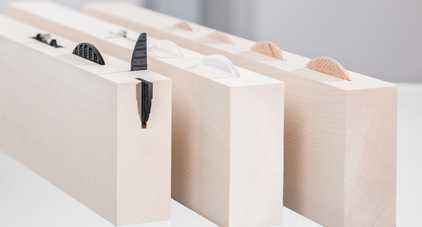

  Versatile A cutting principle for many different joining elements.

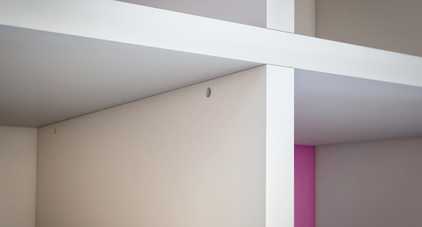

  Very aesthetic Only a small, barely visible tool opening of 6mm is used to open and close the connector.



  Technical Information

  • Size (mm): 59 × 12 × 3.9 mm
  • Cutter: Ø 100 × 4 × 22 mm
  • Material connector: Fiberglass reinforced plastic
  • Material lever: Zinc die cast
  • Installation tolerance: Long. ± 1 mm/radial ± 0 mm
  • Tensile strength (N) MDF: 620 N
  • Tensile strength (N) Particle board: 490 N
  • Tensile strength (N) Beech: 620 N

  Uses

  • Assembling modular furniture for easy disassembly and reassembly
  • Creating temporary exhibition displays that can be quickly set up and taken down
  • Constructing custom cabinetry that requires periodic adjustment or relocation
  • Designing adjustable shelving units for retail, home, or office use
  • Facilitating the assembly of flat-pack furniture for easier transport and storage
  • Building stage sets for theater productions, allowing for quick scene changes
  • Crafting segmented architectural models that can be easily modified or expanded
  • Implementing joinery in bespoke wooden crafts that require non-permanent connections
• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF

• Videos

  Lamello Clamex S-20 - Detachable furniture connector for the 4 mm groove
