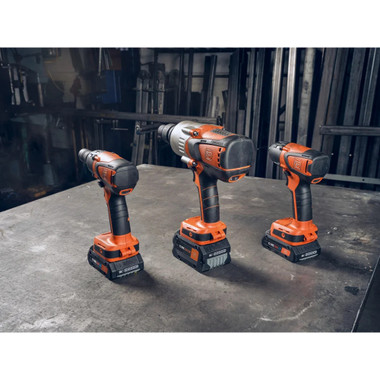

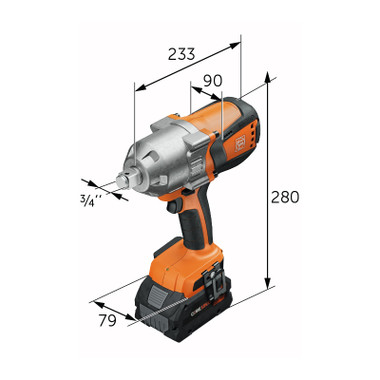

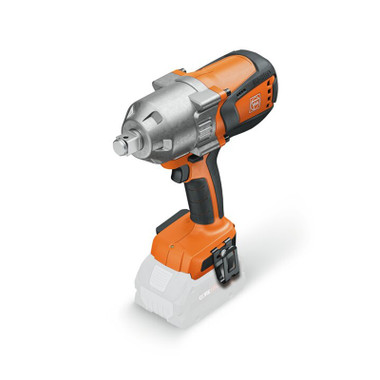

FEIN 71151261090 ASCD 18-1000 W34 AS Cordless Impact Wrench, Bare Tool

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Details

  • Extreme precision: the ASCD 18-1000 W34 AS with 6 electronic torque settings.
  • The VARIO adapter expands the range of the impact wrench to include drilling, countersinking, and tapping.
  • Brushless FEIN PowerDrive motor with 30% greater efficiency and longer service life.
  • 3/4" external square for mounting impact sockets.
  • High torque up to 775 ft/lb for tightening and 1,105 ft/lb loosening screws up to 1-1/16 in [M 27].
  • Robust, solid metal impact gearbox.
  • Up to 600 fastening applications 1-1/16 in [M 27] with one battery charge (CORE 18 V 8 Ah).
  • Compatible with Bosch Professional 18 V storage batteries since 2008 and AMPShare storage batteries.
  • COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
  • State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.
  • CORE 18 V Li-ion battery with Highpower cells, charge indicator and electronic cell protection (ECP). ECP protects batteries against overloading, overheating and deep discharge.
  • Perfectly equipped for any job with our L-BOXX system.

  Technical data

  • Battery voltage: 18 V
  • Battery compatibility: Li-ion / CORE 18 V Li-ions
  • Battery interface: 18 V AMPShare
  • Motor: brushless
  • No load speed: 0 - 1 800 rpm
  • Impacts per minute: 0 - 2 200 rpm
  • Max. torque: 9293 [1,050] in/lbs[Nm]
  • Max. torque: 775 ft/lb
  • Torque steps: 6
  • Tool mount: 3/4" Outer square
  • Max. bolt: 1-1/16 in [M 27]
  • Wood screw dia.: 1/2 [12] x 23-5/8 [600] in[mm]
  • Weight without battery: 6.83 [3.10] lbs[kg]

  Vibration and sound emission values

  • Sound pressure level LpA: 96,7 dB
    • Measurement uncertainty of the measured value KpA: 3 dB
  • Sound power level LWA: 104,7 dB
    • Measurement uncertainty of the measured value KWA: 3 dB
  • Peak sound value LpCpeak: 121,3 dB
    • Measurement uncertainty of the measured value KpCpeak: 3 dB
  • Vibration value 1 αhv 3-way: ah 15,7 m/s²
    • Measurement uncertainty of the measured value Kα: 1,5 m/s²

  Uses

  • Heavy‑duty tightening and loosening of bolts and nuts
  • Fastening tasks on automotive, construction, or industrial machinery
  • Installing or removing wheel nuts, structural fasteners, and large bolts (up to M 27 / 1‑1/16″)
  • High‑torque assembly or disassembly where hand tools aren’t enough
  • Using with sockets for drilling, countersinking, or tapping (with adapter)
