Axiom ICONIC CNC router (4/6/8 sizes) CNC Machine

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Rarely does the least expensive solution possess best-in-class features…That changes with the launch of Axiom’s new Iconic CNC machining center. The best technology and components have been selected to build what will surely be the new king of the entry-level CNC market.

  The new Iconic CNC series includes three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.

  Targeted specifically at the first-time CNC user, the new Iconic lineup will be supported with a comprehensive manual and video library which are intended to dramatically shorten a new user's learning curve.

  These machines ship directly to your shop for $199. (Residential & lift-gate delivery services included!)

  X axis travel	23.81" (605mm)
  Y axis travel	Iconic-4 = 24.01" (610mm) Iconic-6 = 35.82" (910mm) iconic-8 = 47.63" (1210mm)
  Z axis travel	3.937" (100mm)
  Table work area	Iconic-4 = 28.4" x 37" Iconic-6 = 28.4" x 49" Iconic-8 = 28.4" x 61"
  Electro Spindle	800W (1HP)
  Spindle speed	0-24,000 RPM
  Rapid feed rate	150 IPM (3.81 MPM)
  Precision Linear Guideway	X/Y/Z
  Precision Ball Screw	X/Y/Z
  Ball Screw Diameter	16mm
  Positional Accuracy	+/- .00589" (0.15mm)
  Power requirements	115V, 50~60Hz, 13A, 1-Phase
  Working Table	High rigidity Aluminum Extrusion
  Gantry bridge	High rigidity Aluminum Extrusion
  Gantry Supports	Aluminum billet machined
  Max Gantry Clearance	5 1/2" (139.0mm)
  Gantry Clearance Above Spoil Brds	4 1/2" (114.3mm)
  Machine Base	All Welded Steel Frame

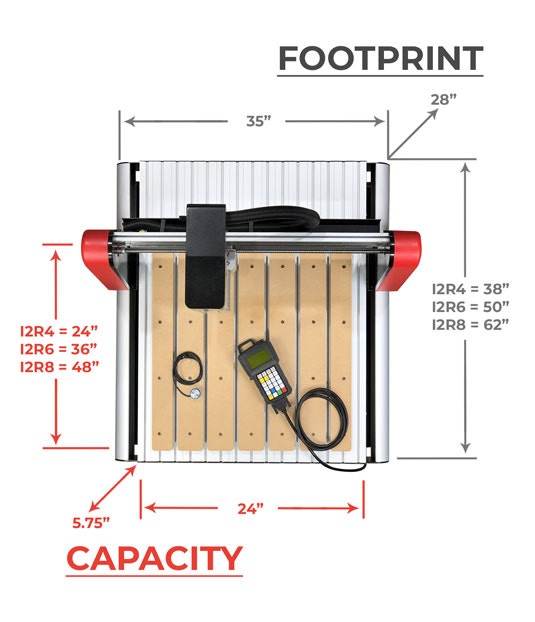

  Machine Dimensions	Iconic-4 = 38"L x 35"W x 28"H Iconic-6 = 50"L x 35"W x 28"H Iconic-8 = 62"L x 35"W x 28"H
  Shipping Dimensions	Iconic-4 = 40" x 37" x 15" Iconic-6 = 52" x 37" x 15" iconic-8 = 64" x 37" x 15"
  Machine Weight	Iconic-4 = 176 lbs Iconic-6 = 209 lbs Iconic-8 = 242 lbs
  Tool Touch Off	Included
  Controller	RichAuto B11 DSP CNC motion control system USB port for easy file transfer. (NO PC REQUIRED)
  Product Manual	View Product Manual
