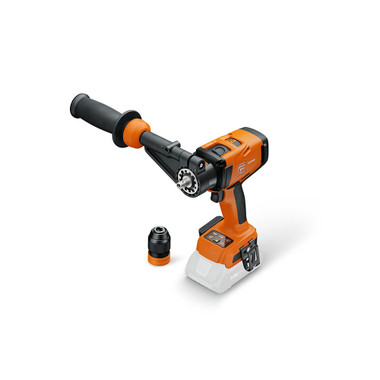

Cordless Drill Driver ASCM 18-4 QMP AS
4-speed cordless hammer drill/driver
With brushless motor and QuickIN interface. Uncompromising power for drilling and tapping up to 1/2" and drilling with carbide hole saws up to 3-1/8".
Details
- 4-speed gearbox with hammer function for optimal cutting speeds in metal for holes from 1/16" to 3-1/8".
- Great versatility with the FEIN QuickIN system for multi-functional use related to drilling, core drilling, tapping, countersinking, and screw applications.
- Extremely safe with kickback monitoring which stops the tool.
- QuickIn accessories allows for quick change flexibility between metal and wood applications in seconds.
- Selectable hammer function for drilling in stone and masonry up to 1/2".
- More control with the extendable auxiliary handle.
- The brushless, high-performance FEIN PowerDrive motor with up to 30% higher efficiency extends the service life.
- High torque up to a maximum of 1,150 in/lb.
- QuickIN solid metal drill chuck with carbide jaws and 1,062 in/lb clamping force.
- Electronic torque setting (15+1).
- Intuitive control panel with dimmable LED for perfect illumination of the work area.
- Comes with a magnetic bit holder and belt clip.
- Drives 3/8 x 15-3/4 in [10 x 400 mm] screws without pre-drilling.
- Drives up to 1,400 1/4 x 1-1/2" screws in wood with one battery charge (CORE 18 V 4 Ah).
- User safe with restart and electronic overload protection.
- Over screw driving function to prevent screw from driving too deep into the wood.
- Compatible with Bosch Professional 18 V storage batteries since 2008 and AMPShare storage batteries.
- COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
- State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.
- CORE 18 V Li-ion battery with Highpower cells, charge indicator and electronic cell protection (ECP).
- ECP protects batteries against overloading, overheating and deep discharge.
- Perfectly equipped for any job with our L-BOXX system.
Technical Data
Battery voltage: 18 V
Battery compatibility: Li-ion / CORE 18 V Li-ions
Battery interface: 18 V AMPShare
Motor: brushless
Gearbox: 4-speed
Accessory interface: QuickIN
No load speed: 430 / 850 / 2 000 / 4 000 rpm
Impacts per minute: 6 450 / 12 750 / 30 000 / 60 000 rpm
Max. torque (hard/soft): 1,151 [130] (620 [70] mm / 443 [50] mm) in/lbs[Nm]
Torque steps: 15 + 1
Chuck capacity: 1/16 [1.5] - 1/2 [13] in[mm]
Fastening: 3/8 [10] x 15-3/4 [400] in[mm]
Drill Ø steel twist drill: 1/2 [13] in[mm]
Holesaw diameter capacity in wood: 2-3/8 [60] in[mm]
Capacity in stone Ø: 1/2 [13] in[mm]
Tapping: 1/2" [M14]
Weight without battery: 3.09 [1.40] lbs[kg]Vibration and Sound Emission Values
Sound pressure level LpA: 93,9 dB
Measurement uncertainty of the measured value KpA: 3 dB
Sound power level LWA: 101,9 dB
Measurement uncertainty of the measured value KWA: 3 dB
Peak sound value LpCpeak: 113,4 dB
Measurement uncertainty of the measured value KpCpeak: 3 dB
Vibration value 1 αhv 3-way: ah,D 0,8 m/s²
Measurement uncertainty of the measured value Kα: 1,5 m/s²
Vibration value 2 αhv 3-way: ah 0,5 m/s²
Measurement uncertainty of the measured value Kα: 1,5 m/s²Product Features
Removable drill chuck
Electronic torque-controlled shut-off
hammer function
4-speed gearbox
QuickIN accessory interface
Dimmable LED
Drilling and over screw function
AccessoriesUses
- Drilling in metal
- Drilling in wood
- Hammer drilling in stone and masonry
- Drilling with carbide hole saws
- Tapping up to 1/2"
- Core drilling
- Countersinking
- Screw applications
- Driving long screws without pre-drilling
- Quick accessory changes between metal and wood applications
-
-
