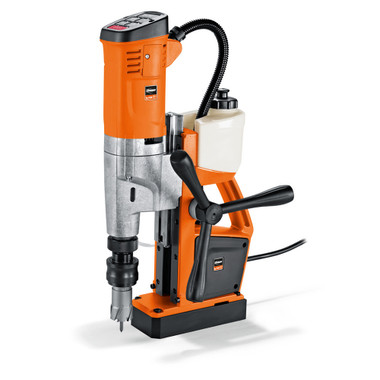

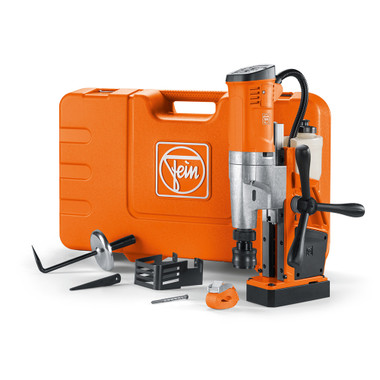

Universal Magnetic Core Drill up to 1-3/8 in [35 mm]
Small, long-stroke, single-speed universal magnetic core drill with forward/reverse rotation, MT2 tool mount, and maximum functionality for flexible work on the construction site. Designed for universal drilling applications, this magnetic core drill is suitable for core drilling, twist drilling, tapping, countersinking, and reaming.
Details
This universal magnetic core drill features an extremely wear-resistant tool concept with a swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades. Its compact, weight-optimized design and FEIN 1,100 W high-performance motor with tacho electronics provide an excellent power-to-weight ratio and high speed stability for reliable, efficient operation.
Right/left rotation, electronic speed adjustment, and a 10-1/4 in [260 mm] total stroke range allow flexible use across a wide range of applications, including core drilling, spiral drilling, tapping, countersinking, and reaming. The MT2 tool mount adds versatility, while the simple, error-proof control concept keeps operation easy within the operator’s field of view.
Additional features include a convenient magnetic holding force indicator, high magnetic holding force, motion sensor, additional magnet switch in the drill stand, integrated coolant tank, and a hand feed wheel that can be mounted on either side. The memory function stores speed settings for repeatable operation.
Technical Data
Power consumption: 1,100 W
Power output: 550 W
Cutter holder: 3/4" straight shank
Full load speed: 130 - 520 rpm
Tool mount: MT 2
Carbide cutter max. diameter: 1-3/8 in [35 mm]
HSS cutter max. diameter: 1-3/8 in [35 mm]
Cutter max. drilling depth: 2 in [50 mm] / 3 in [75 mm] optional with accessory
Twist drill max. diameter: 3/4 in [18 mm]
Tapping: 1/2"
Max. countersinking diameter: 1-1/4 in [31 mm]
Reaming max. diameter: 3/4 in [18 mm]
Cutter change: Tool-free
Stroke: 5-5/16 in [135 mm]
Total stroke range: 10-1/4 in [260 mm]
Magnetic holding force: 2248 lbs [10,000 N]
Cable with plug: 13.1 ft [4 m]
Weight: 23.59 lbs [10.70 kg]
Vibration and Sound Emission Values
Sound pressure level LpA: 82.3 dB
Measurement uncertainty KpA: 5 dB
Sound power level LWA: 95.3 dB
Measurement uncertainty KWA: 5 dB
Peak sound value LpCpeak: 95.9 dB
Measurement uncertainty KpCpeak: 5 dB
Vibration value 1 αhv 3-way: αh,D <2.5 m/s²
Measurement uncertainty Kα: 1.5 m/s²
Applications
Mag base drilling in metal up to 1-1/2" diameter: Well suitable
Twist drilling with drill chuck: Suitable
Twist drilling with MT fitting: Well suitable
Tapping: Well suitable
Countersinking: Well suitable
Reaming: Well suitable
Performing overhead work: Well suitable
Installation work: Well suitable
Workshop jobs: Well suitable
Product Features
Magnet holding force display
Forward/reverse operation
Electronic speed setting
Memory function
Speed-controlled tacho electronics
Tilt sensor
Uses
- Construction site drilling
- Workshop drilling
- Magnetic base drilling in metal
- Core drilling up to 1-3/8 in diameter
- Twist drilling with drill chuck
- Twist drilling with MT fitting
- Spiral drilling applications
- Tapping applications
- Countersinking work
- Reaming applications
- Installation work
- Overhead drilling
- Metal fabrication
- Industrial maintenance work
- Precision drilling in tight work areas
