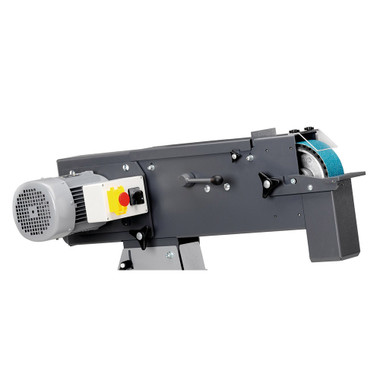

Fein 79012209233 GX 75 2H, 2V, 220V , 3ph, 2 speed stationary belt Grinding module

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  GX 75 2H

  Belt grinder (base unit), 75 mm, switchable. High performance belt grinder with modular expansion capability, for trade use and small production runs, ideal for stainless steel machining.

  Power consumption: 1.5 / 2 kW
  Current/Voltage: 3 x 230/220V 50/60Hz
  No load speed: 1,730 / 3,450 rpm
  Belt dimension: 3 x 78-3/4 in (75 x 2,000 mm)
  Weight: 165.35 lbs (75 kg)

  Details

  • Expandable by means of add-on modules
  • Speeds of 1,730 / 3,450 rpm are ideal for processing metal and stainless steel
  • Height-adjustable flat grinding table for longitudinal planar grinding
  • Detachable swarf collector
  • Connection option for external collector
  • Working height independently adjustable
  • Patented belt tensioning system
  • Robust three-phase motor
  • Low vibration level

  Uses

  • Belt grinding and finishing of metal and stainless steel in trade shops and small production runs
  • Expandable into a multi-function grinding station with add-on modules
  • Suited for longitudinal planar grinding using the height-adjustable flat grinding table
