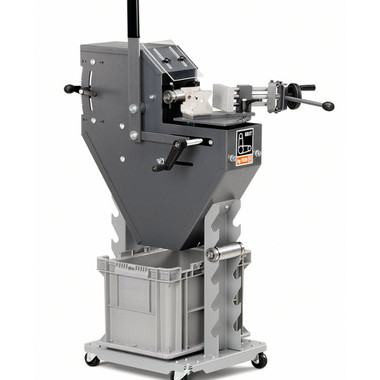

Fein 99001001110 GRIT GXR Radius stationary Grinding module for pipes and profiles

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  GXR Radius Grinding Module

  Radius grinding module for exact-fit grinding of pipe, profiles and flat materials.

  Pipes up to Ø: 3/4 - 3 in (16 - 75 mm)
  Belt dimension: 3 x 88-1/2 in (75 x 2,250 mm)
  Max. dimension of profile/flat material: 3 x 3 in (75 x 75 mm)
  Weight: 119.05 lbs (54 kg)

  Details

  • For precisely cutting radii (with a diameter from 5/8 to 3-1/2 in / 16 to 90 mm) on pipes and profiles
  • Contact rollers in standard sizes are available as options
  • Optional length stop for production applications
  • Integrated depth stop
  • Optional combination with GX 75 (2H) belt grinders
  • Independent angle settings possible up to 90°

  Uses

  • Grinding precise radii on pipes and tubular profiles
  • Shaping flat materials and profiles for production applications
  • Pairs with the GX 75 (2H) belt grinder for a combined grinding setup
