FS-EP TS 60
Immersion position indicator for TS 60 K

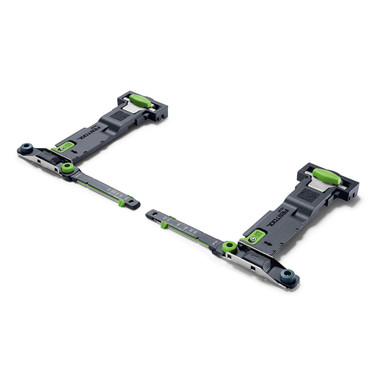

Contains
- Rear position indicator with support plate and marking indicator
- Front position indicator with support plate and marker indicator
Functions
Precise plunge-cuts for all cutting depths.

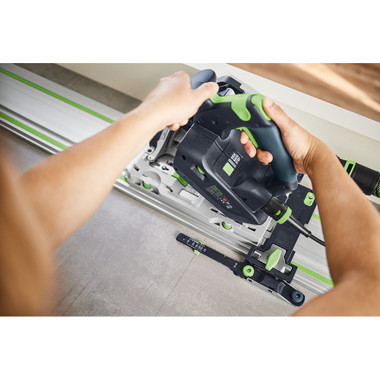

We know: Hitting the plunge position exactly is a challenge - especially with a reduced cutting depth when there is no orientation. Several plunge cuts or even dangerous backward sawing are often necessary. With the plunge-cut position indicator, you can reliably hit the exact entry and exit point of your saw blade at any cutting depth. Simply insert it into the groove of the guide rail from above and fix it in place. Then adjust the scale of the marking indicator to the depth setting of your plunge-cut saw, align it with the marking and place the cut-outs precisely where you need them. The marking indicator can also be magnetically attached to the right or left of the support plate. This allows you to reliably saw cut-outs close to walls, even if your view of the saw blade is limited or non-existent.
- Precise plunge-cutting: Entry and exit point of the saw blade is precisely displayed for the desired cutting depth.
- Plunge cutting close to the wall: Sawing on the cutting mark to the left and right of the guide rail for cut-outs close to the wall.
- Stop stop: Position indicator can be used as an end and start stop for the machine.
- Easy to align: Position indicator can be aligned directly to the mark or marking.
- for precise cut-outs with plunge-cut saw and FS/2 guide rail
Utilisation
Main applications
- Precise, dimensionally accurate plunge cuts
- Position indicator shows the exact entry and exit position of the saw blade
- Cut-outs at positions close to the wall
- Plunge cuts with the same length
- Cutting width indicator for applications where the dimension is to the right of the guide rail - e.g. when cutting narrow panel strips or working with the FS on the cut-off side
Highlights
The perfect accessories for your craft
Precise plunge cuts
The entry and exit points of the saw blade are precisely indicated for the desired cutting depth.
Quickly aligned
Simply align the position indicator to the desired start and end position, position the saw and perform the plunge cut.

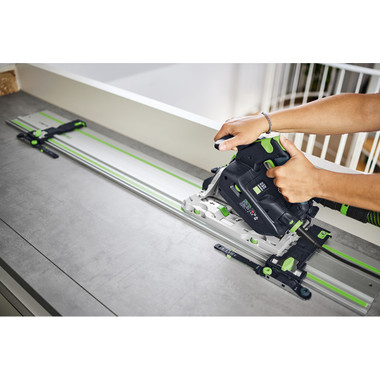

Sawing close to the wallMagnetic fixing of the marking indicator - on the right or left of the support plate. This means that cut-outs close to the wall are also possible without any problems.
Guide limitation
The position indicators serve as rear and front stop positions on the guide rail.
Uncomplicated handling
Simply insert from above onto the guide rail groove and fix without tools.
Cutting width indicator
The indicator for the cutting width of the saw blade enables cutting to the millimetre - both for narrow panel strips and when working with a guide rail on the cutting side.
Uses
- Precise, dimensionally accurate plunge cuts
- Position indicator shows the exact entry and exit position of the saw blade
- Cut-outs at positions close to the wall
- Plunge cuts with the same length
- Cutting width indicator for applications where the dimension is to the right of the guide rail - e.g. when cutting narrow panel strips or working with the FS on the cut-off side
- Positioning plunge cuts accurately at different cutting depths
- Using the position indicator as a front or rear stop on the guide rail
- Aligning plunge cuts directly to marks or markings
- Making controlled cut-outs when visibility of the saw blade is limited
- Cutting narrow panel strips to precise dimensions
- Working with the guide rail on the cut-off side
- Setting repeatable plunge-cut start and end points
-
-
