Insert Adjustable Grooving Head with Scorers 8-24mm Kerf

PRODUCT DETAILS

Click an item to expand and learn more

• Overview

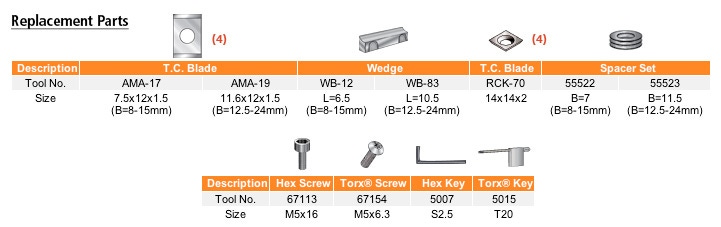

  Re-Ordering Insert Knives List

  Included General Purpose
  Solid Carbide Insert Knives

  Optional *DLC Coated Insert Knives,
  Optimal for cutting Solid Wood


  ALL
  RCK-70 (4) 14 x 14 x 2mm


  61360, 61364
  AMA-17 (4) 7.5 x 12 x 1.5mm


  61362, 61366
  AMA-19 (4) 11.6 x 12 x 1.5mm


  RCK-70-DLC (4) 14 x 14 x 2mm


  Not available


  Not available





  *Diamond-Like Carbon (DLC) is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness and high corrosion resistance.

  Replacement Torx® Screw, Torx® Key and Spacer Set List

  Included Torx® Screw

  Included Torx® Key


  67154


  5015

  Replacement Hex Screw, Hex Key and Wedge List

  Included Hex Screw

  Included Hex Key


  67113


  5007

  Replacement Spacer Set and Wedge List

  Included Spacer Set

  Included Wedge


  61360, 61364
  55522

  61362, 61366
  55523


  WB-12


  WB-83

  Insert Adjustable Grooving Head Shaper Cutter with Scorers 8mm - 24mm
  Hard wearing steel body complete with tungsten carbide knives and scorer for improved finish. Suitable for producing various thickness grooves and slots in softwood, hardwood and man-made boards (with or without coating) on a spindle molder.
  Cutting width can be adjusted in 0.1mm steps by using supplied spacer rings.
