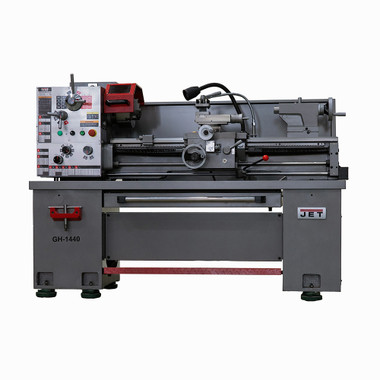

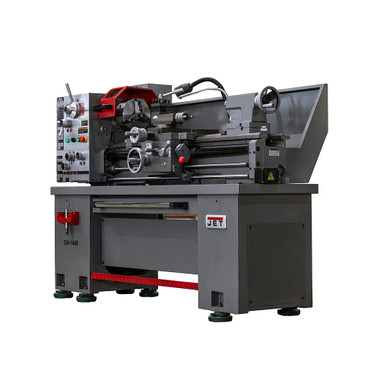

Jet 2709 GH-1440-1 Gear Head Lathe 14x40, 230V 1 PH

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  The new JET GH-1440-1 Geared Head Engine Lathe comes equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The segment-leading 2" spindle bore, enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked. With standard UL 987 certification, this is the ideal everday use lathe to outfit a workshop or repair center backed by the industry leading JET 2 Year Warranty.

  Features and Benefits

  • 8" 3 jaw chuck mounted on lathe and 8" 4 jaw chuck included in the package
  • Front Removable Chip Tray for easy cleanup
  • Full Length Splash Guard with standard halogen work light
  • JET Electronic Chuck Key Holder and standard chuck guard ensure operator safety while in use
  • Integrated coolant system
  • Fitted top mats to hold tooling
  • Removable gap allows large diameter work

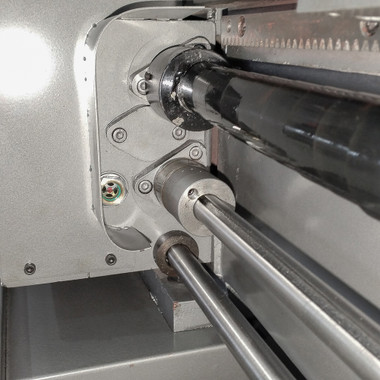

  • Standard leadscrew cover to protect leadscrew from debris and easy cleanup
  • UL 987 Certified

  Specifications

  • 30 Point Inspection: Yes
  • Assembled Dimensions: 75.6" x 29.1" x 47"
  • Bed Height: 11.41"
  • Center Height: 6.5"
  • Compound Slide Travel: 6.45"
  • Configurable Base Item: Yes
  • Cross Slide Travel: 6.7"
  • Distance Between Centers: 40"
  • Drive Type: Geared Head
  • Length Of Gap: 7.5"
  • Maximum Tool Size: 5/8"
  • Modular Pitch Threads Range: 0.2-3.5
  • Motor HP: 2
  • Motor Phase: Single
  • Motor Voltage: 230V
  • Number of Inch Threads: 32
  • Number of Longitudal And Cross Feed Rates: 40/40
  • Number of Metric Threads: 32
  • Number of Spindle Speeds: 8
  • Range Of Cross Feeds: 0.0005" – 0.0086"
  • Range Of Inch Threads Tpi: 4-56
  • Range Of Longitudal Feeds: 0.0016" – 0.0257"
  • Range Of Metric Threads: 0.4 – 7mm
  • Range Of Speeds: 90-1800 RPM
  • Reference Type: Base Machine
  • Size: 14x40
  • Spindle Bore: 2"
  • Spindle Mount: D1-5
  • Spindle Taper: MT-6
  • Spindle Taper With Sleeve: MT-4
  • Style Type: Engine - Geared Head
  • Swing Over Bed: 14"
  • Swing Over Cross Slide: 8.7"
  • Swing Through Gap: 20.3"
  • Width Of Bed: 8.1"
  • Country of Origin: China

  Uses

  • Heavy-duty turning of larger metal workpieces
  • Thread cutting for precision industrial components
  • Facing, boring, and drilling oversized parts
  • Small to medium batch production machining
  • Toolroom, maintenance, and repair shop operations
  • Technical training and advanced machining education
