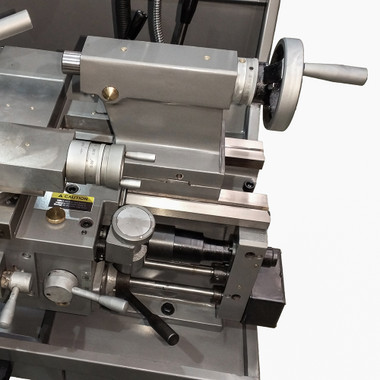

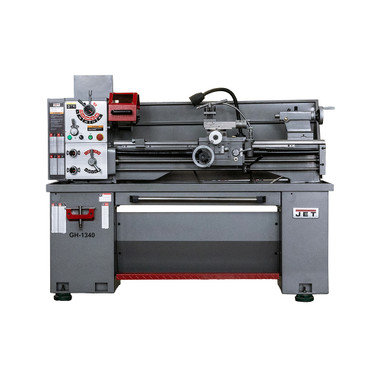

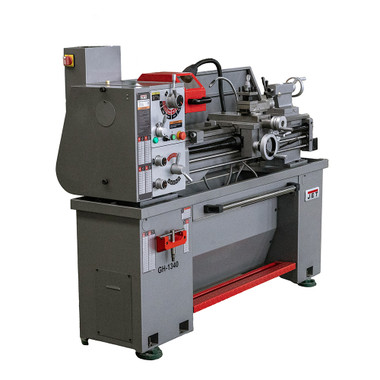

Jet 3257 GH-1340 Gear Head Lathe 13x40 w/ Newall NMS300 and Collet Closer

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  The new JET GH-1340 Geared Head Engine Lathe comes equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The segment-leading 2" spindle bore, enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1340 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked. With standard UL 987 certification, this is the ideal everday use lathe to outfit a workshop or repair center backed by the industry leading JET 2 Year Warranty.

  Features and Benefits

  • 6" 3 jaw chuck mounted on lathe and 8" 4 jaw chuck included in the package
  • Front Removable Chip Tray for easy cleanup
  • Full Length Splash Guard with standard halogen work light
  • JET Electronic Chuck Key Holder and standard chuck guard ensure operator safety while in use
  • Integrated coolant system
  • Fitted top mats to hold tooling
  • Removable gap allows large diameter work
  • Standard leadscrew cover to protect leadscrew from debris and easy cleanup
  • UL 987 Certified

  Specifications

  • 30 Point Inspection: Yes
  • Bed Height: 11.41"
  • Center Height: 6.5"
  • Compound Slide Travel: 3.9"
  • Configurable Base Item: Yes
  • Cross Slide Travel: 6.7"
  • Distance Between Centers: 39"
  • Drive Type: Geared Head
  • Length Of Gap: 7.5"
  • Maximum Tool Size: 5/8"
  • Modular Pitch Threads Range: 0.2-3.5
  • Motor HP: 2
  • Motor Phase: Single
  • Motor Voltage: 230V
  • Number of Inch Threads: 32
  • Number of Longitudal And Cross Feed Rates: 40/40
  • Number of Metric Threads: 32
  • Number of Spindle Speeds: 8
  • Range Of Cross Feeds: 0.0032" – 0.1068"
  • Range Of Inch Threads Tpi: 4-56
  • Range Of Longitudal Feeds: 0.0011" – 0.0367"
  • Range Of Metric Threads: 0.4 – 7mm
  • Range Of Speeds: 90-2000 RPM
  • Reference Type: Base Machine
  • Size: 13x40
  • Spindle Bore: 2"
  • Spindle Mount: D1-5
  • Spindle Taper: MT-6
  • Spindle Taper With Sleeve: MT-4
  • Style Type: Engine - Geared Head
  • Swing Over Bed: 13"
  • Swing Over Cross Slide: 8.7"
  • Swing Through Gap: 16.9"
  • Width Of Bed: 7.3"
  • Country of Origin: China

  Uses

  • Precision turning of metal shafts and rods
  • Thread cutting for industrial and custom parts
  • Facing, boring, and drilling metal components
  • Prototyping and small-batch part production
  • Maintenance and repair work in machine shops
  • Training and educational machining applications
