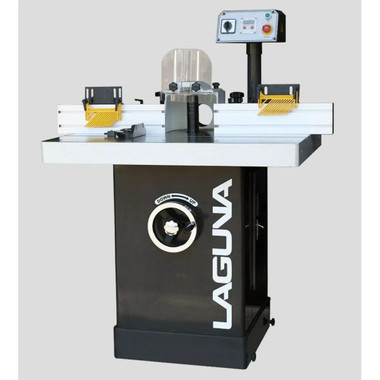

Laguna Tools MSHAP5030-0130 Pro Shaper, 7.5 HP, 220V, 3 Phase

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines. The fit and finish on this machine is top notch and even includes a wheel kit built right into the base.The Laguna Pro Shaper is designed to give you years of trouble free performance without breaking the bank.

  Features:

  • Motor: 7.5HP 3 Phase 220V
  • Table size: 39-5/16″ x 31-7/16″ x 3-1/2″
  • Spindle travel: 4″
  • Spindle Sizes: 3/4″ and 1-1/4″

  Additional Details:

  The table measures an impressive 31″ x 39″ and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16″ adjustment to the fence. Inside you will find a heavy-duty motor available in either 5HP 220 volt 1 phase or 7.5 HP 220 volt 3 phase. Each offers 3 speeds with a unique quick change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.

  • Capacity Under Nut: 6″(For 1-¼″) and 4″(For ¾″)
  • Router Collets: ¼″ and ½″
  • Spindle Speeds:5000, 7000, 10000 RPM
  • Table Opening Diameter: 7-5/16″
  • Digital Readout: Standard
  • Direction: Forward/Reversing Switch
  • Fence: Micro Adjustment
  • Weight (Net/Ship): 640/720 lbs
  • Shipping Dimensions (L x W X H): 43″ x 43″ x 60″

  Uses:

  • Creating intricate profiles on wood edges
  • Crafting custom moldings
  • Building raised panel doors for cabinets
  • Shaping decorative table legs
  • Constructing unique chair rails
  • Carving out dovetails for joinery
  • Designing and forming custom window frames
  • Smoothing rough wood surfaces
  • Cutting tenons for mortise and tenon joints
  • Producing fluted columns for architectural details
• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF

• Videos

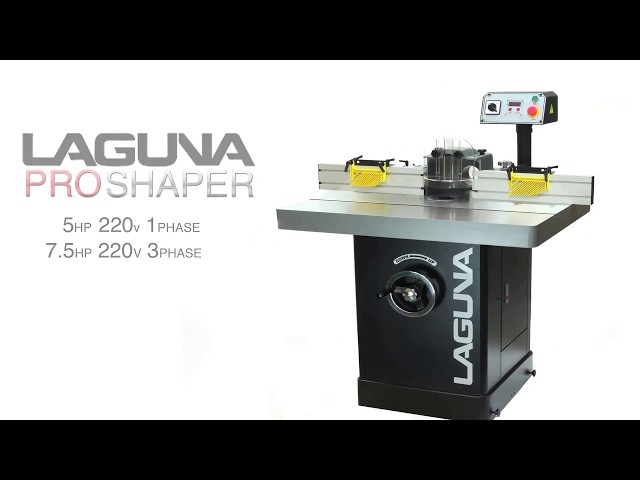

  Woodworking Pro Shaper by Laguna Tools
