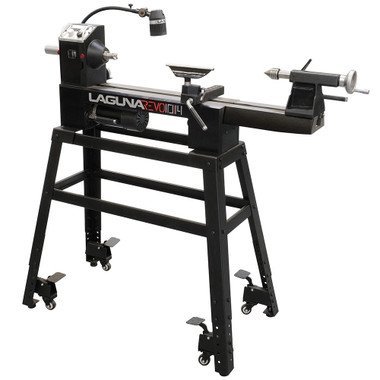

Benefitting from the proven pedigree of the larger lathes in Laguna's Revo line, this 10|14 Benchtop Lathe includes similar performance and features in a compact 10'' format. Its Pulse Width Modulation (PWM) 1HP induction motor delivers constant torque across a variable-speed range, so it will never starve for power, even when you're turning at low speed or making heavy cuts. Changing speeds within each of the three pulley speed ranges is as easy as twisting a dial.
The lathe offers 10'' of swing capacity for turning bowls or other large projects and up to 14'' between centers for spindle work. The 6'' tool rest has a hardened-steel edge that resists nicks while providing a smooth contact surface for tools. And thanks to a protruding nose cone on the headstock, you'll enjoy improved tool access when turning the backsides of large workpieces mounted on a faceplate or scroll chuck.
Expand the lathe's spindle-turning capacity to 24'' by adding an optional cast-iron bed extension (sold separately).
Features
- Powerful Pulse Width Modulation (PWM) induction motor maintains consistent torque at any speed
- Headstock nose cone provides wider spindle bearing spacing for durability and improves tool clearance around large workpieces
- Rugged cast-iron bed adds mass and dampens vibration
- Electronic variable-speed control
- Ergonomic control panel with easy-to-read digital speed display
- Spindle reverses travel for easier sanding
- 6'' tool rest with hardened-steel edge resists nicks and ensures slippery smooth tool use

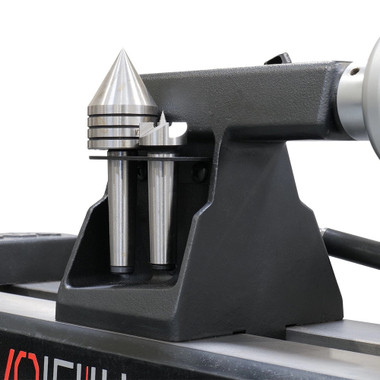

- Luxury live center and spur drive with on-board storage
- Three-pulley drive with poly-groove drive belt

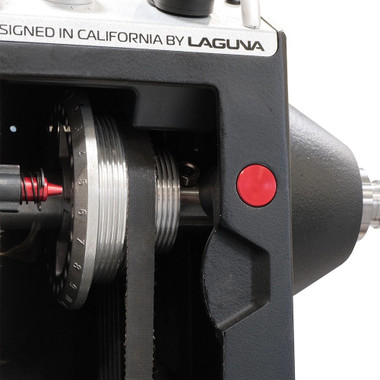

- Convenient quick belt tension release and two-door belt access
Specifications
- Brand: Laguna
- Manufacturer Part Number: MLAREVO10A
- Motor Type: Pulse Width Modulation (PWM) induction
- Horsepower: 1
- Prewired Voltage: 120V, 60Hz
- Bed Material: Cast iron
- Low Speed Range: 250–850 RPM
- Medium Speed Range: 430–1,450 RPM
- High Speed Range: 950–3,200 RPM
- Distance Between Centers: 14''
- Swing Over Bed: 10''
- Spindle, Tailstock Quill Taper: MT2
- Spindle Thread: 1'' x 8 TPI
- Spindle Rotation: Forward, reverse
- Indexing Positions: 24
- Tailstock Quill Travel: 3-1/2''
- Tool Rest Length: 6''
- Tool Rest Post Diameter: 1''
- Headstock, Tailstock Bore: 3/8''
- Overall Dimensions: 13-3/8''W x 30-3/4''L x 15-9/16''H
- Net Weight: 95 lbs.
Uses
- Turning small wooden bowls and vessels
- Crafting custom pens, handles, and ornaments
- Shaping spindles for furniture and decor
- Adding fine details to artistic wood pieces
- Practicing and improving woodturning techniques
