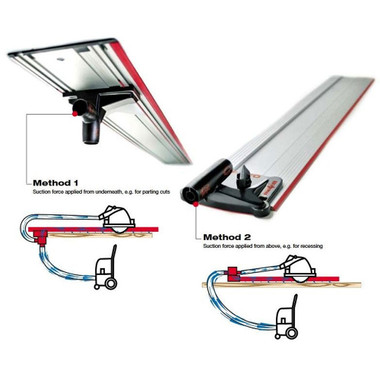

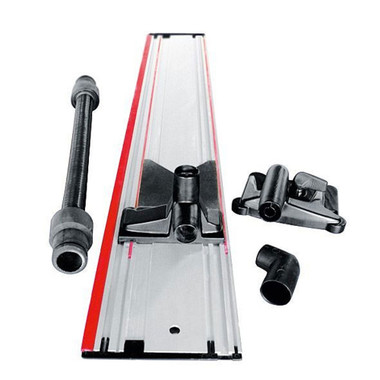

Mafell 204770 Aerofix F-Af 1 Suction Clamping System, With Rail, Adapters For Above And Underneath Rail, Flexible Hose

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Compatible with the following Mafell tools:

  • S 35M Dust Extractor
  • LO 65Ec Hand Router
  • KSS 300 Cross-Cutting System
  • KSS 40 18M BI Cordless Cross-Cutting System
  • KSS 400 Cross-Cutting System
  • MT55cc Plunge/Track Saw
  • MT55 18M BI Cordless Plunge/Track Saw
  • KSS 50cc Cross-Cutting System
  • KSS 50 18M BI Cordless Cross-Cutting System
  • K55 18M BI Cordless Circular Saw
  • KSS 60cc Cross-Cutting System
  • KSS 60 18M BI Cordless Cross-Cutting System
  • K65 18M BI Cordless Circular Saw
  • KSS 80EC/370 Cross-Cutting System
  • K85Ec Circular Saw
  • P1cc Jigsaw
  • MKS 130Ec Circular Saw
  • MKS 145Ec Circular Saw
  • MKS 165Ec Circular Saw
  • MKS 185Ec Circular Saw
  • DSS 300cc Insulation Saw
  • ZSX TWIN Ec Chain Beam Saw

  Features

  • Mafell's unique Aerofix F-AF 1 guide rail has a cutting length of 3.6 feet (110cm) and is able to quickly clamp itself to a workpiece of any thickness when used with a vacuum
  • Using the Connecting Piece F-VS, the Aerofix F-AF 1 system connects seamlessly with F 160, F 110, and F 80 rails to form a longer guide rail
  • The default suction hose extends 5.2 feet, so the Aerofix Hose FXS L (10.4ft) is required when connecting to other rails

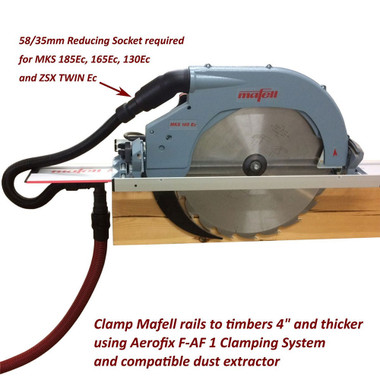

  • Larger Mafell saws (MKS 130Ec, MKS 165Ec, MKS 185Ec and ZSX TWIN Ec) require a 58/35mm Reducing Socket
  • Vacuum not included (compatible with many vacuums from other manufacturers)
  • Saw blade will remove portion of splinter guard on first cut, calibrating rubber exactly to your blade kerf to prevent splintering
  • Cutting depth reduced by 5.5mm when using rail

  Uses:

  • Drilling dowel holes for joinery in cabinets
  • Creating alignment pins in furniture assembly
  • Boring holes for shelf supports
  • Making holes for wooden dowels in chair frames
  • Drilling precise holes for hardware installation in woodworking projects
  • Constructing wooden toys with dowel-based joints
  • Crafting wooden frames with reinforced dowel joints
  • Building custom wooden storage solutions with dowel reinforcements
  • Assembling wooden table frames with dowel joints
  • Creating dowel joints in custom woodworking projects such as bookcases and desks
• Reviews
• Questions and Answers
• Videos

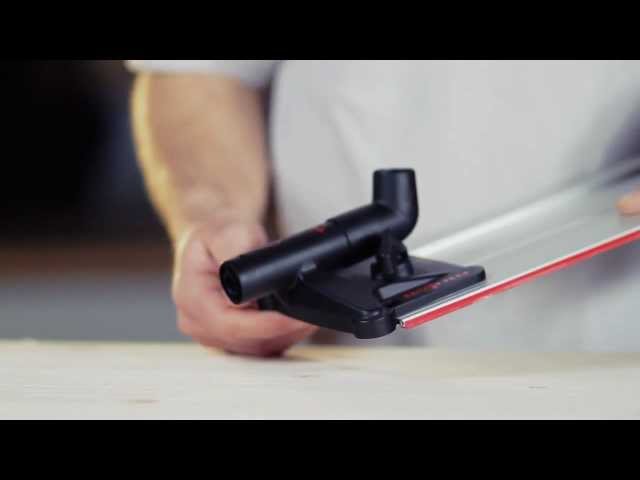

  MAFELL Aerofix F-AF 1 suction clamping system
