Mafell 924233 Ls103Ec-Usa 240V 60Hz 28X2 InchX150

PRODUCT DETAILS

Click an item to expand and learn more

• Overview

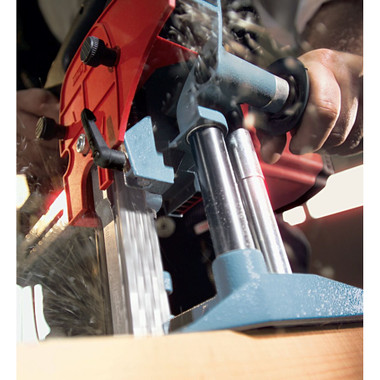

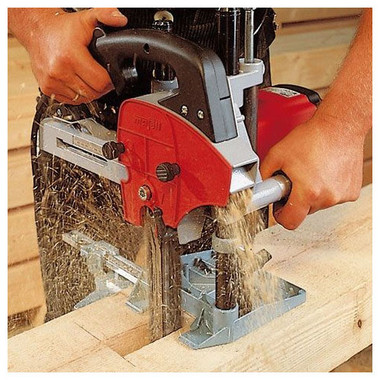

  The Mafell LS 103Ec is a truly impressive chain mortiser, featuring a powerful 120 V or 240 V motor, chain bars which do not require lubrication, and long-lasting chains. This mortiser is available with 1.5" and 2.0" chain/bar setups to rapidly produce timber frame mortises with the sturdy FG 150 mortising stand. The tensioning system of the LS 103Ec allows for fast chain replacement. Even retightening the chain is quick and easy without having to remove the chain guard.

  Specifications

  • Mortising depth: 5-7/8"
  • Mortising width: 1-1/16" by 1.5" or 2.0"
  • Nominal speed - no load: 4,400 rpm or 4,050 rpm
  • Motor: 120 V or 240 V / 60 Hz
  • Current: 20 A or 13 A
  • Weight with stand: 29.7 lbs

  Standard Equipment

  • Stop Plate
  • Two Allen Keys
  • LU202 Chain Lubricant (WITH GROUND SHIPMENTS ONLY)
  • 32.8 ft Cord

  Accessories

  • 35% of new LS 103Ec customers also order an extra chain so they can keep mortising while one chain is being sharpened

  Uses:

  • Drilling deep holes in wooden beams
  • Creating holes for wooden dowels in joinery
  • Boring holes for electrical and plumbing runs in construction
  • Making pilot holes for screws in hardwood
  • Crafting mortises for traditional mortise and tenon joints
  • Drilling through-holes in furniture pieces
  • Forming holes for decorative purposes in wood crafts
  • Excavating large holes for lock installations in doors
  • Carving out spaces for hardware installation in cabinetry
  • Creating ventilation holes in wooden enclosures
• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF

  Download Manual Instructions PDF

• FAQ

  How should I lubricate my chains?

  Customers recommend spraying chain with LU202 Spray every 30 to 60 minutes of use.

• Videos

  Mafell LS 103 Ec Chain Mortiser
