Mafell 925422 Portable Circular Carpentry Saw Mks 130 Ec, 120 V

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Features

  • Sheer power and high torque take on a whole new meaning with the new high-output CUprex motor. It offers performance-optimized digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.
  • The saw´s handling and behavior are refined by smooth starting, constant speeds under load, speed reduction and overload protection.
  • The exemplary design of the MKS 130 Ec embraces extremely rugged and high-quality materials, including the lightweight magnesium die-cast housing and impact-resistant, fiber glass-reinforced plastic components. Most of the surfaces that are conventionally exposed to dust or chips have been eliminated.
  • The MKS 130 Ec satisfies all the requirements that arise in traditional and modern carpentry: cross and rip cuts in wood or insulating materials are easily executed thanks to the availability of appropriate accessories.
  • Nothing is left to chance as far as safety is concerned: the MKS 130 Ec features a motor brake and a self-closing saw guard. Among the other safety features, the on/off
  • The desired cutting depth is easily set with a control wheel and highly legible scale. The nuisance of doublechecking dimensions is a thing of the past.
  • Ergonomic, ideally positioned handles offer supreme operating ease and allow the work to be performed efficiently in every situation.
  • Continuously variable speed control for individual requirements and applications.

  Specifications

  • Cutting depth at 0° off track: 1-15/16 to 5-1/16in
  • Cutting depth at 45° off track: 1-7/16 to 3-11/16in
  • Cutting depth at 60° off track: 15/16 to 2-1/2in
  • Cutting depth at 0° on track: 1-11/16 to 4-7/8in

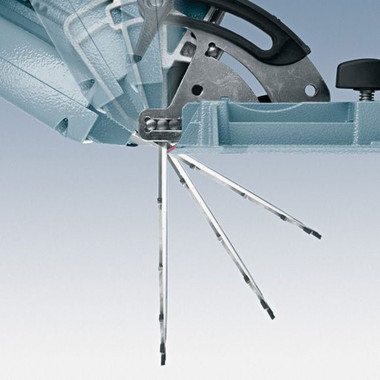

  • Tilt range: 0 to 60°
  • Saw blade diameter: 12-15/16in
  • Nominal speed - no load: 1,000 to 2,000 rpm
  • Motor: 120 V or 240 V / 60 Hz
  • Current: 20.5 A
  • Weight: 31 lbs.

  Includes

  • 24T Universal Carbide Blade 092571
  • Parallel Guide Fence 203853
  • Allen Key 093081
  • 32.8 ft Cord

  Uses:

  • Drilling deep holes in wooden beams
  • Creating holes for wooden dowels in joinery
  • Boring holes for electrical and plumbing runs in construction
  • Making large holes for lock installations in doors
  • Crafting deep mortises for timber frame construction
  • Drilling through-holes in fence posts for wire or pipe
  • Creating pilot holes for screws in thick wood planks
  • Forming holes in wooden playground equipment for assembly
  • Carving out space for decorative inlays in woodworking projects
  • Hollowing out sections of wood for custom handles or grips
