Milescraft 1226 HingeJig

Brand: Milescraft

SKU: #MC-1226
$24.99
Free shipping on orders $49 and up
Order within 7h 19m 52s to ship today.
- +
Adding to cart… The item has been added
Buy Now Pay Later

Earn 75 points with this purchase!

Includes
  • Jig Main Body
  • Built-in Clamp

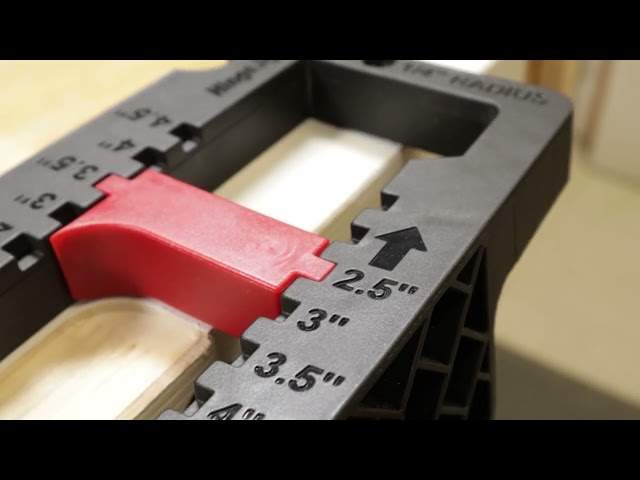

  • Adjustable Hinge Spacer
  • 12mm Router bit with Bearing
  • 2x Adjustable Backset Plugs
  • 2x Latch Templates

PRODUCT DETAILS

Click an item to expand and learn more

  • Save time and remove the guess work when installing new doors into existing frames with the Milescraft HingeJig™. This self-clamping jig comes with everything needed to rout hinge and latch mortises onto new doors. The self-clamping feature holds the HingeJig™ in place while routing without the use of screws or nails that can leave holes in a finished door.

    Self-Clamping

    • Padded clamp design sets up quickly and prevents damage to doors caused by mounting screws or nails

    Fits All Doors

    • Adjustable settings allow door hinge jig to be used on all standard size 1-3/8” and 1-3/4” thick doors

    Works with Multiple Hinge Sizes

    • Routs hinge mortises for 2-1/2” to 4-1/2” hinges

    Rout Different Radiuses

    • Cut professional hinge mortises with ¼”, 5/8”, or square corners. (Chisel Required)

    Unique Design

    • Design of the HingeJig™ eliminates need for multiple inserts to rout different hinge corner radiuses

    Create Latch Plate Mortises

    • Kit includes templates to rout common door latch mortises sized 1” x 2-1/4”, 1-1/8” x 2-1/4”, and 1-1/8” x 2-3/4”

    Built in Depth Setting

    • Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges

    Self-Guided Router Bit

    • Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises

    Built-in Storage

    • Contains built in storage compartments for router bit and available self-centering hinge bit (not included) for convenient retrieval

    For Doors Only

    • Not for use when routing door hinges on jamb / frame

    Specs:

    • Compatible Door Thickness: 1-3/8” and 1-3/4” Doors
    • Latch Sizes: 1” x 2-1/4”, 1-1/8” x 2-1/4” , and 1-1/8” x 2-3/4”
    • Door Hinge Sizes: 2-1/2”, 3” , 3-1/2”, 4”, and 4-1/2″
    • Hinge Corner Radius Sizes: ¼”, 5/8”, or Square (Chisel Required)
    • Door Mounting: Padded Self-Clamping. No Hardware Required
    • Adjustable Backset Plugs: Adjust for Door Hinge Routing, 1-3/8” Latch, and 1-3/4” Latch
    • Storage: Built-in for router bit and available self-centering hinge bit (not included)
    • Guided Router Bit: 12mm Cutting Head with ½” Ball Bearing

    Uses:

    • Installing door hinges
    • Routing hinge mortises on cabinet doors
    • Creating recesses for flush hinge installation
    • Precise alignment for hinge placement
    • Cutting hinge slots in new framing projects
    • Retrofitting hinges on existing door frames
    • Adjusting hinge sizes on custom woodworking projects
    • Making repetitive hinge cuts for production work
    • Installing piano hinges on long doors or panels
    • Crafting hidden hinges for a clean, modern look

    Read More

  • Can the HingeJig be mounted to the door frame?

    No, the HingeJig only works on doors.
