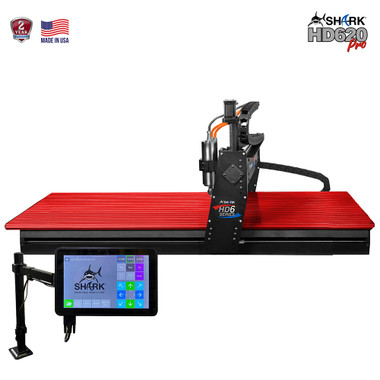

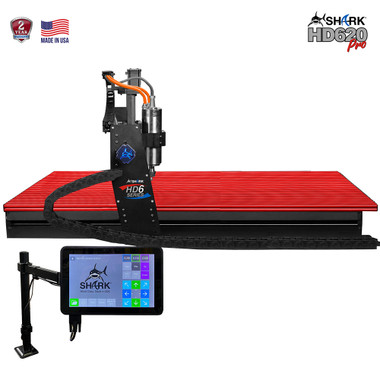

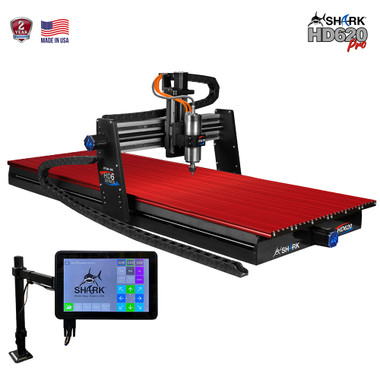

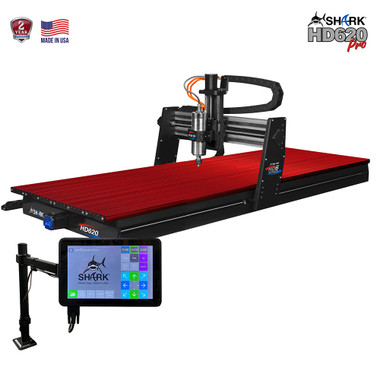

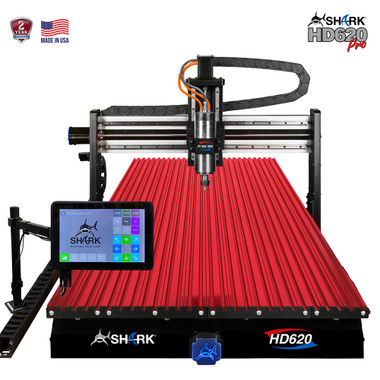

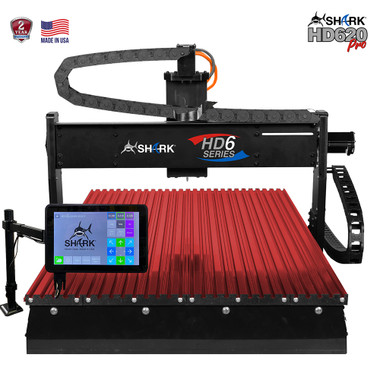

Shark HD620® Pro –The Best Value HD620 Package available!
More Power. More Precision. More Possibilities.
With nearly 20 years of experience in CNC manufacturing, Next Wave CNC understands what matters most to users. Building on the proven success of our HD5 models, the new Shark HD620® Pro is designed to excel in both home workshops and demanding production environments—delivering powerful, next-level performance.
Key Features
- Expanded Cutting Area – 50” x 25.75” x 7” for tackling larger, more complex projects with ease.
- Heavy-Duty Build – 28” x 63” table with linear gantry rails for uncompromising stability.
- Aluminum Spindle Cradle – Designed for any spindle motor with 80mm barrel diameter.
- Powerful 3hp water Cooled Spindle – Includes digital control and 1/2″ & 1/4″ collets.
- 10.1 Android Pendant upgrade – Large screen, onboard memory, full CNC control at your fingertips.
- Closed Loop / Encoded Motors – Offering increased speeds, and additional power and accuracy.
- All-New Gantry Design – Engineered for superior accuracy and long-term reliability.
- Upgraded Lead Screws – Precision components that allow for higher cutting speeds.
- Precision-Ground, Vibration-Dampening Couplers – Ensures smoother operation and improved cut quality.
- Larger Drag Chain – Accommodates both cables and spindle hoses for a cleaner, more organized workspace.
- Redesigned Aluminum X-Box – Improved access for tramming and maintenance.
- Removable Side Skirts with Magnetic Interlocks – Simplifies cleaning and access while maintaining safety.
- Upgraded 36V Controller Electronics – Delivers more power to the motors, enabling speeds up to 1000 IPM with the closed-loop system included in this Pro package.
Designed to Work with todays Best Software
Your HD620 Pro comes with Vectric’s VCarve Pro, but it’s also compatible with Aspire, Fusion 360, Cam Master, and more.
Expand Your Craft
Unlock even more potential with optional accessories:
- 4th Axis for rotary carving – CLICK HERE
- Laser modules for engraving – CLICK HERE
- Digital probe for 3D duplication – CLICK HERE
- Drawing tool for custom artistic designs – CLICK HERE
Proudly Made in the USA
Built with industrial-grade components including a reinforced aluminum/steel gantry, interlocking aluminum table, linear rails, and anti-backlash lead screws, the Shark HD620® is designed to last. Supports Next Waves Precision Spindle kits included with the Pro system.
Included:
- Vectric VCarve Pro (sku 20030 $699 value)
- Ready2Control Software
- Virtual Zero Unlimited® (sku 21205 $149 value) this patented Next Wave CNC exclusive software allows you to map the surface of your material by taking an unlimited number of reference points. The program then uses these points to auto-adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed workpiece and allows you to maintain a constant cutting depth on projects that other machines would not be able to handle.
- 3hp digitally controlled water cooled spindle (sku 20162 $999 value)
- 10.1″ Android Pendant upgrade (sku 21260 $499 value)
- Full closed loop motor system ( $999 value)
- Interlocking rigid aluminum table
- 90 degree Carbide V-bit for sign carving
- 2- premium Hold down clamps
- 2-Year Warranty & U.S.-Based Technical Support
Whether you’re starting your CNC journey or upgrading to a more powerful platform, the Shark HD620® Pro puts precision, durability, and flexibility right at your fingertips.
Review the HD6 Manual HERE
-
-
