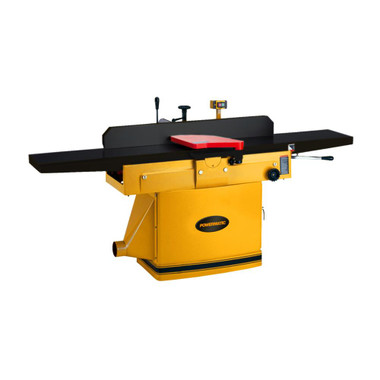

Powermatic PM1-1791241T 12 Inch Parallelogram Jointer with ArmorGlide, Straight Knife, 1Ph 230V (1285T)

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic 1285T 12-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. This model features a straight knife cutterhead.

  Features

  • ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
  • Large 12" x 84" precision-ground cast iron table surface for heavy-duty work
  • Parallelogram design ensures close table-to-cutterhead proximity and fast depth of cut adjustments
  • Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play
  • Straight knife cutterhead with three high speed steel knives create a clean cut
  • Table "lips" on both sides of cutterhead aid in noise reduction
  • NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2" as the manual has always stated.

  Specifications

  • Stock Number: PM1-1791241T
  • Model Number: 1285T
  • Warranty: 5 Year
  • Type of Cutterhead: Straight Knife
  • Maximum Cutting Depth (In.): 1/8"
  • Cuts Per Minute: 15,000
  • Cutterhead Speed (RPM): 5000.0000
  • Cutting Capacity (W x D) (In.): 11-3/4 x 3/4
  • Dust Collection Minimum CFM Required (CFM): 800
  • Dust Port Outside Diameter (In.): 4
  • Number of Knives: 3
  • Motor Power (HP): 3
  • Motor Voltage (V.): 230
  • Prewired Voltage (V.): 230
  • Motor Phase: 1
  • Recommended Circuit Size (Amps.): 30
  • Max.Rabbeting Capacity (In.): 3/4"
  • Gross Weight: 880.0
  • Net weight: 762.0
  • Prop 65: Cancer and Reproductive Harm

  Uses:

  • Creating smooth, flat surfaces on large pieces of wood for furniture making
  • Jointing edges to prepare wood for glue-ups in table tops and panel projects
  • Producing precise, straight cuts for fine woodworking and cabinetry
  • Flattening warped or twisted lumber to reclaim otherwise unusable wood
  • Enhancing the fit and finish of custom woodworking projects
  • Preparing wood for intricate marquetry or inlay work
  • Smoothing rough-cut lumber surfaces before planing
  • Squaring edges of boards for seamless joining in construction projects
  • Ideal for professional carpenters and serious hobbyists focusing on precision woodworking tasks
