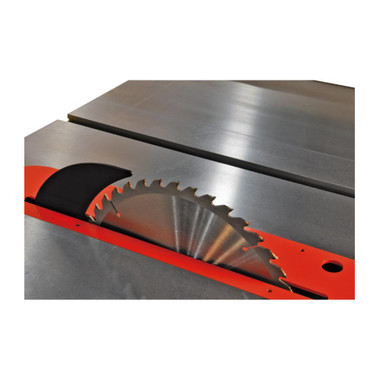

Powermatic PM9-1791229K 64B, 1.75 HP 115/230V, 30 Inch Fence with Riving Knife

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. An arbor lock is accessed from above the table, eliminating the need for dual blade wrenches. The T-slot miter gauge has rack-and-pinion angle setting, positive stops and extension plate for expanded workpiece support. The 64B has cast iron table and wings with front edge bevel, and the working area is further expanded by the melamine-surfaced wood extension table. The exclusive Accu-Fence® system is available in 30” or 50” rip cut capacity. Storage hooks on the stand keep your accessories within reach.

  Features

  • Accu-Fence® locks to rail without play for increased safety and precision
  • Blade guard and riving knife have quick release for tool-less mounting and removal
  • Built-in dust port increases dust collection efficiency
  • Cast iron trunnion ensures smooth blade positioning
  • Chrome-trimmed handwheels are ergonomically designed
  • Micro-adjust miter gauge with extension plate offers wider crosscut support
  • Precision ground cast iron work surface features a beveled edge for smoother operation
  • Riving knife maintains close blade proximity to reduce chance of kickback

  Specifications

  • Stock Number: PM9-1791229K
  • Arbor Diameter (In.): 5/8
  • Arbor Speed (RPM): 3800
  • Blade Diameter (In.): 10
  • Dust Collection Minimum CFM Required (CFM): 350
  • Dust Port Outside Diameter (In.): 4
  • Gross Weight (Lbs): 304
  • Maximum Depth of Cut at 45 Degrees (In.): 2-1/8
  • Maximum Depth of Cut (In.): 2-1/8 or 3-1/8
  • Maximum Diameter of Dado (In.): 8
  • Maximum Rip Left of Blade (In.): 12
  • Maximum Rip Right of Blade (In.): 30
  • Maximum Width of Dado (In.): 13/16
  • Miter Gauge Type: T-Slot with Stops
  • Model Number: 64B-30
  • Motor Amps: 6
  • Motor Phase: 1
  • Motor Power (HP): 1-3/4
  • Motor Voltage (V.): 115/230
  • Overall Dimensions (L x W x H) (In.): 71-1/4 x 43 x 42
  • Prewired Voltage (V.): 115
  • Prop 65: None
  • Recommended Circuit Size (Amps.): 20
  • Style (Type): Contractor
  • Table Height from Floor (In.): 36
  • Table Size (L x W) (In.): 44-1/4 x 27
  • Table Type: Cast Iron
  • Warranty: 5 Year
  • Gross Weight: 421.85
  • Net weight: 366.85

  Uses:

  • Ideal for woodworking projects requiring precise cuts
  • Suitable for cutting large panels and hardwoods
  • Can be used in cabinetry and furniture making
  • Useful for creating joinery such as tenons and rabbets
  • Appropriate for both professional carpentry and DIY home projects
  • Effective for handling detailed and intricate cutting tasks
• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF
