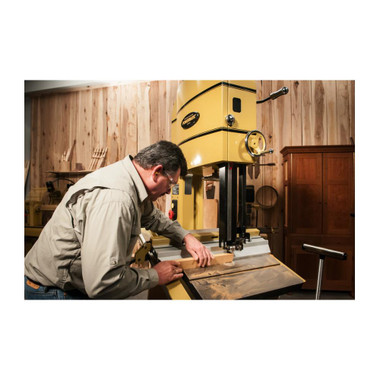

Powermatic PM9-1791257B PM2013B, 20 Inch Bandsaw, 5HP 1PH 230V

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best wood saw machines and tools for the job. When we reimagined our line of 20-inch bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This 20-inch bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.

  Features

  • Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned
  • Exclusive Powermatic T-square style Accu-Fence® maximizes accuracy and safety
  • Heavy duty upper wheel support and tracking mechanism for smooth operation
  • High end blade guides with tool less adjustment provide stability, increasing cut accuracy
  • Rack and pinion table tilt system allows for easy and accurate adjustments
  • Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
  • Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
  • Accu-Fence has complete adjustability for aligning to blade and squaring to table

  Specifications

  • Stock Number: 1791257B
  • Model Number: PM2013B
  • Warranty: 5 Year
  • Blade Length (In.): 170
  • Minimum Saw Blade Width (In.): 1/4
  • Blade Speed (SFPM): 2300/4400
  • Cutting Capacity Height (In.): 18
  • Cutting Capacity Width (In.): 20.0000
  • Dust Port Outside Diameter (In.): 4
  • Dust Collection Minimum CFM Required (CFM): 600
  • Table Tilt (Deg.): 45 Right / 10 Left
  • Motor Power (HP): 5
  • Motor Phase: 1
  • Motor Voltage (V.): 230
  • Prewired Voltage (V.): 230
  • Recommended Circuit Size (Amps.): 30
  • Table Height from Floor (In.): 36
  • Prop 65: Cancer and Reproductive Harm
  • Style (Type): Floor
  • Table T-Slot (In.): 3/4
  • Net weight: 860.0
  • Gross Weight: 959.0

  Uses:

  • Resawing large planks of wood into thinner slabs
  • Cutting intricate shapes and curves in woodwork projects
  • Creating veneers from large blocks of wood
  • Sawing through thick hardwoods for furniture making
  • Producing complex joinery components for cabinetry
  • Crafting wooden sculptures and artistic pieces
  • Building custom wooden frames and beams for construction
  • Processing timber into usable lumber sizes for various projects
  • Making precision cuts for boat building components
  • Facilitating detailed work in restoration and repair of antique wood items
