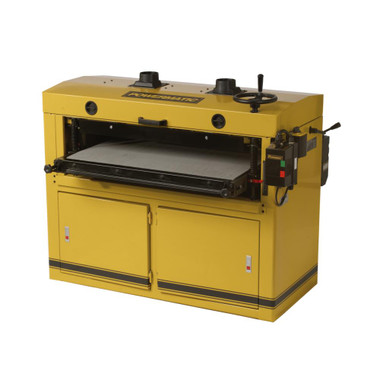

Powermatic PM9-1791320 DDS-237 Drum Sander, 7.5HP 1PH 230V

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  The production class Powermatic DDS-237 Dual Drum Sander that is loaded with features. A 7.5HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.

  Features

  • Dual drum head for superior finish
  • Dual dust ports with directional baffles for more efficient dust removal
  • Forward/reverse conveyor belt grips stock evenly
  • Full size cast iron table for solid support
  • Hard durometer rubber coating on steel drums provides flat, smooth finish
  • Independently adjustable rear drum for fine tuning
  • Two-speed gearbox for wide range of sanding projects.

  Specifications

  • Stock Number: PM9-1791320
  • Conveyor Speed (FPM): 8 and 12
  • Drum Diameter (In.): 6
  • Drum Length (In.): 37
  • Drum Speed (RPM): 1,700
  • Dust Collection Minimum CFM Required (CFM): 1,200
  • Dust Port Outside Diameter (In.): 4
  • Maximum Board Thickness (In.): 5-1/4
  • Maximum Board Width (In.): 37"
  • Minimum Board Length (In.): 9
  • Minimum Board Thickness (In.): 1/32
  • Model Number: DDS-237
  • Motor Power (HP): 7-1/2
  • Prop 65: Cancer and Reproductive Harm
  • Style (Type): Dual Drum
  • Warranty: 5 Year
  • Weight (Lbs.): 962
  • Gross Weight: 1142.0
  • Net weight: 962.0

  Uses:

  • Ideal for smoothing and finishing large wood surfaces like tabletops and doors
  • Useful in shaping and evening out rough-cut edges of lumber
  • Perfect for removing paint or finishes from wood surfaces
  • Can be used to create a uniform thickness across multiple pieces of wood for consistent results
  • Suitable for sanding intricate wood patterns and joints in cabinetry and furniture making
  • Effective in preparing wood surfaces for staining or sealing
  • Helps in refurbishing old wooden furniture and restoring antique pieces
