Powermatic PM9-PM375350K 3000B Table Saw - 7.5HP 3PH 230/460v 50 Inch RIP with Accu-Fence

PRODUCT DETAILS

Click an item to expand and learn more

• Overview

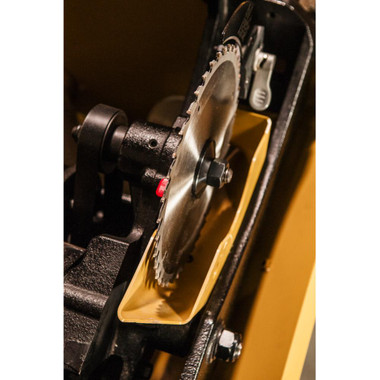

  The PM3000B brings heavyweight performance and patented innovations to the 14-inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting. The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat build-up. A newly designed push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.

  Features

  • Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
  • Adjustable miter gauge
  • Arbor lock for rapid blade change
  • Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece and fine angle adjustments
  • Industrial magnetic switch has an easy-to-access, large ON/OFF switch with a built-in power indicator light and a removable magnetic safety key
  • Industrial-duty Accu-Fence System ensures accurate cuts and increased safety
  • One piece, cast iron trunnion provides the strongest stability of any Powermatic table saw.
  • Poly-V drive belt system delivers efficient, quiet operation
  • Push-button arbor lock for rapid blade change

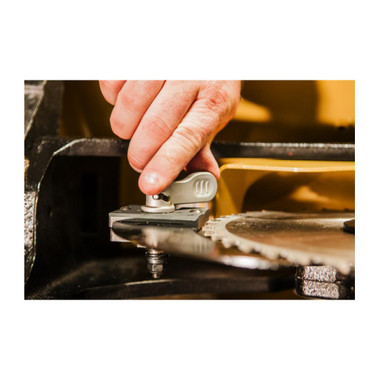

  • Quick-release riving knife lever for hassle-free riving knife changes

  Specifications

  • Stock Number: PM9-PM375350K
  • Arbor Diameter (In.): 1
  • Arbor Speed (RPM): 4500
  • Blade Diameter (In.): 14
  • Dust Collection Minimum CFM Required (CFM): 600
  • Dust Port Outside Diameter (In.): 4
  • Gross Weight (Lbs): 600
  • Maximum Depth of Cut at 45 Degrees (In.): 3-1/2
  • Maximum Depth of Cut (In.): 3-1/2 or 5-1/8
  • Maximum Diameter of Dado (In.): 8
  • Maximum Rip Left of Blade (In.): 14
  • Maximum Rip Right of Blade (In.): 50
  • Maximum Width of Dado (In.): 13/16
  • Miter Gauge Type: T-Slot with Stops
  • Model Number: PM3000B
  • Motor Amps: 6.7
  • Motor Phase: 3
  • Motor Power (HP): 7.5
  • Motor Voltage (V.): 230/460
  • Overall Dimensions (L x W x H) (In.): 84-11/16 x 46-1/2 x 42-7/8
  • Prewired Voltage (V.): 230
  • Prop 65: Cancer and Reproductive Harm
  • Recommended Circuit Size (Amps.): 30
  • Style (Type): Cabinet
  • Table Height from Floor (In.): 35-1/4
  • Table Size (L x W) (In.): 26 x 38
  • Table Type: Cast Iron
  • Warranty: 5 Year
  • Gross Weight: 830.5
  • Net weight: 737.8

  Uses:

  • Cutting large sheets of wood for cabinetry and furniture making
  • Ripping lumber to size for construction projects
  • Creating precise cuts for joinery in woodworking
  • Handling multiple materials with the appropriate blade for crafting custom pieces
  • Building fixtures and frames in a professional carpentry setting
  • Producing detailed and complex cuts for woodworking art and decor items
  • Supporting educational and training environments in technical schools for carpentry skills
  • Facilitating production in a high-volume woodworking shop or factory setting
