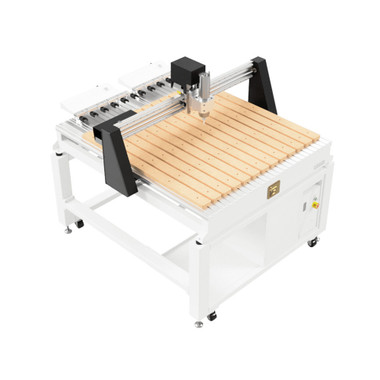

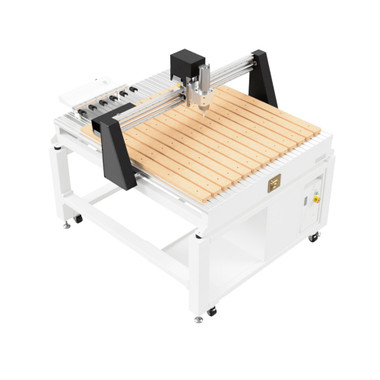

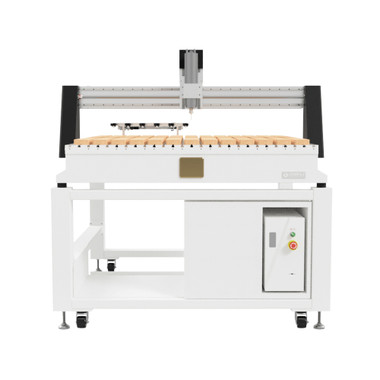

The PERFORMANCE 16ATC is a full-scale production CNC with a 48″ × 48″ work area, built for shops that need speed, consistency, and automation. It features the iCNC controller with a 15.6″ touchscreen, delivering wireless file transfer, intuitive operation, and full machine integration for professional workflows. Built on a heavy welded steel frame with a 3HP liquid-cooled spindle and automatic tool changer, the 16ATC is ideal for cabinetry, furniture, signage, and high-volume production environments.
The Performance Series CNC machines are engineered for precision, power, and versatility, making them the ideal choice for small manufacturers, professional woodworkers, and advanced hobbyists. Featuring 4-axis capability and rotary machining, this series is designed to handle complex, high-precision cutting applications with ease.
Each Performance Series machine is built on a rigid, all-welded steel frame and equipped with precision ball screws, prismatic guides, and a high-clearance gantry for smooth and accurate motion. The 3HP electro-spindle with integrated liquid cooling ensures consistent performance, reduced wear, and quiet operation, while the prewired rotary kit option allows for expanded 3D machining capabilities.
The Performance Series is powered by an iCNC Controller, featuring an advanced 15.6” touch screen interface, real-time visual toolpath display, and remote machine operation from any Android device, enhancing user experience and efficiency.
The Performance Series CNC machines provide the ideal balance of size and power, making them perfect for demanding projects requiring superior accuracy and reliability. The integrated MDF spoil board can be milled flat, ensuring a true perpendicular cutting surface, essential for precision work.
For those seeking industrial performance in a compact format, the Performance Series CNC is the ultimate solution.
Specifications
- X Axis Travel: 48″ (1220mm)
- Y Axis Travel: 48″ (1220mm)
- Z Axis Travel: 5.9″ (150mm)
- Table Work Area: 48″ x 48″
- Spindle Type: 3HP Water Cooled
- Spindle Configuration: ISO20 ATC (1/4″ & 1/2″)
- Controller: iCNC
- On-Board Memory: Yes
- Rapid Feed Rate: 300ipm (5m/min)
- Tool Touch-Off: Included
- Onboard Cooling: Included
- Machine Base: Welded Steel
- Rotary Axis: Yes
- Resolution: +/- .000197″ (0.05mm)
- Precision Linear Guides: X / Y / Z
- Precision Ball Screw Transmission: X / Y / Z
- Power Requirements: 220V, 50-60Hz, 10A, 1-Phase
- Working Table: High Rigidity Aluminum Extrusion
- Gantry Bridge: High Rigidity Aluminum Extrusion
- Gantry Supports: Aluminum Alloy Gravity Cast
- Max Gantry Clearance: 6.5″ (165.1mm)
- Clearance Above Spoil Board: 5.5″ (139.7mm)
Uses
- Precision woodworking for cabinets, furniture, and shelving
- Custom sign making with detailed engraved designs
- Rapid prototyping for product development and testing
- Efficient multi-tool machining with automatic tool changing
- Creating complex 3D carvings and rotary projects
- Small-scale manufacturing with repeatable precision cutting
Download Manual Instructions PDF
