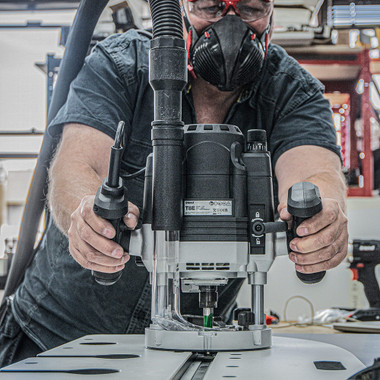

Experience unparalleled power and precision with our 3-1/4 HP, 15 Amp motor router, designed to tackle the toughest woodworking tasks with ease. With a maximum plunge depth of 3-1/8 inches, this tool is perfect for complex operations like lock mortising and detailed timber profiling, offering versatility across a wide range of projects. The advanced precision centring system ensures true alignment between the router bit and guide bush, delivering accurate and consistent results every time. Compatible with router tables, it features an above-the-table height adjustment mechanism for quick and precise changes, enhancing its versatility for both handheld and table-based operations. The 11-level variable speed control, ranging from 10,000 to 26,000 RPM, allows you to tailor the speed to match the cutter type and material, ensuring smoother cuts, reduced material burn, and optimal performance on wood, plastics, and more.
- Ideal for lock morticing, kitchen fitting, worktop jointing and timber profiling
- 3 9/64" Plunge Depth is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.
- Precision Centring System to ensure perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
- Router Table Compatible with height adjuster to easily and safely change cutting height from above the table.
- Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
- 11-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
- Vertical Extraction Spout prevents extraction hoses from ‘snagging’ on jigs and materials.
- Twin LED Worklights illuminate the cutting area to improve safety and accuracy in low-light situations.
- Extra-Wide 2 15/16" Base Aperture to accommodate over-size cutters, such as panel raisers.
- 7-Position Rotating Turret with pre-set plunge depth limits for fast, repeatable batch and stepped cutting.

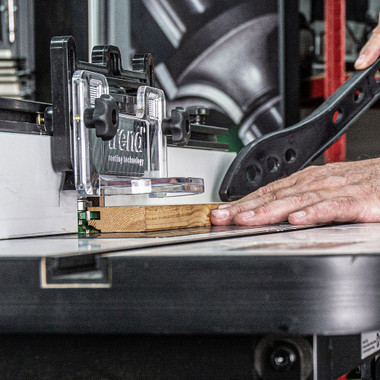

- Micro-Adjustable Fence with Extraction Port featuring adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding

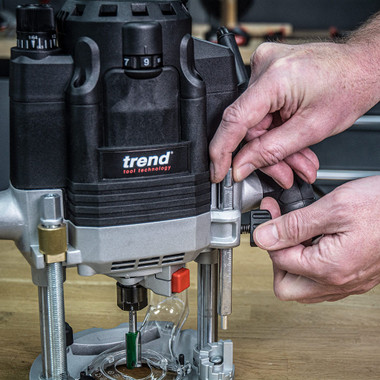

- Fine Height Adjuster with an easy-to-read display for precision depth adjustments. 1 rotation equals 2mm height adjustment.
- Trend Base Configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible router tables, jigs and accessories.
- Ergonomic Inclined Handles feature an integrated power trigger and a soft grip moulding for comfortable operation
- Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
- Moulded Carry Case provides safe storage for router and accessories.
- Cam-Lock System Compatible for quick changes between hand-held and table routing.
Specs:
- Duty Rating: Medium/Trade
- Motor Power: 3HP 15A
- AC Voltage: 120V
- Plug Type: 2 pin
- Supplied Collet Size: 1/2“
- Plunge Stroke (Max): 3 9/64"
- No Load Speed: 10,000-26,000rpm
- Base Aperture Diameter: 2 15/16"
- Cutter Diameter (Max): 2"
- Dust Spout Internal Diameter: 1 3/8"
- Sound Pressure (Lpa): 94.1 dB(A)
- Acoustic Pressure (Lwa): 105.1 dB(A)
- Hand/Arm Vibration: <3.8m/s2
- Weight (Net): 12.8lb
- Power Cable Length: 9.8'
Uses:
- Trim router hand tool for fine cutting tasks
- Edge trimming and profiling on wood and plastics
- Precision hinge and joint routing applications
- Variable speed for controlled material removal
- Compatible with multiple guide bush sizes
- Portable power for workshop and on-site jobs
Download Manual Instructions PDF

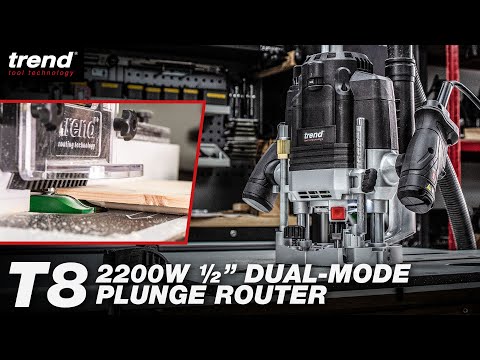

T8 2200W ½” Dual-Mode Plunge Router
