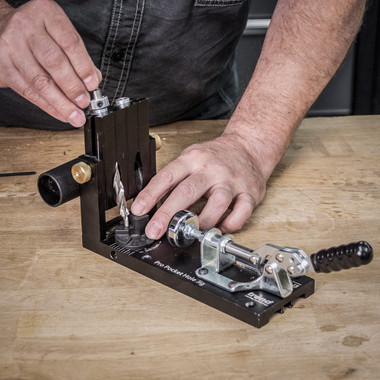

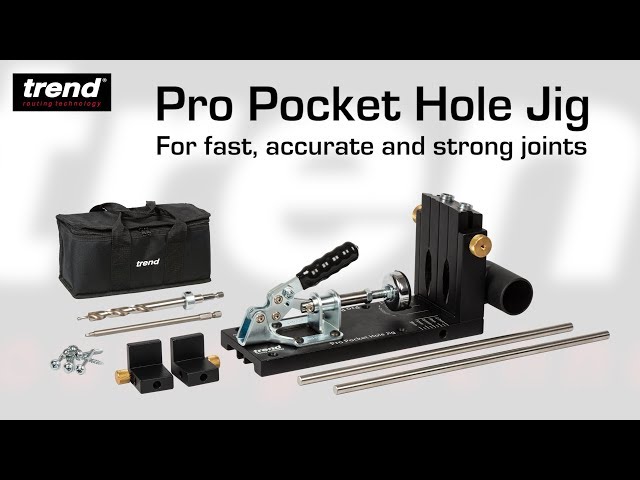

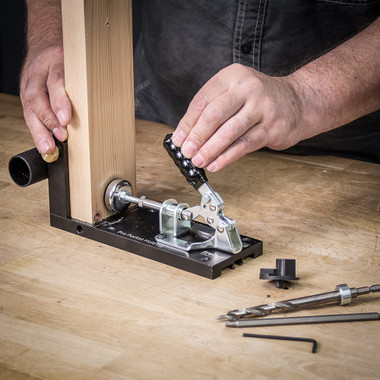

Elevate your woodworking projects with the Trend Pocket Hole Jig Pro Kit, designed for both novices and professionals. This versatile kit features an adjustable height from 1/2" to 1-1/2", making it perfect for a variety of applications, including face framing, cabinet building, and mitered frames. Enjoy quick and easy setup without the need for complex measuring or calculations, allowing you to focus on your craft. The included support rods and end stops ensure stability and precision while drilling pocket holes. Built with all-metal construction, this jig guarantees reliable and strong screwed joints, complemented by durable hardened bushing sleeves and a robust face clamp to secure your workpiece. The kit comes complete with essential accessories, including 100 dome-headed square bit screws, an HSS drill bit with a depth setting collar, two square drive bits, and a convenient storage case, making it an all-in-one solution for your woodworking needs.
For fast and accurate joining of timber and plywood giving strong instant joints.

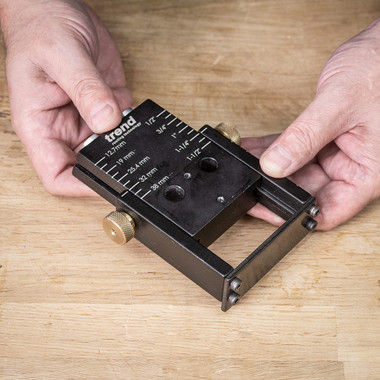

- Adjustable height to allow material from 1/2 inch to 1 1/2 inch to be jointed.
- Solid hardened bushes with fixed pitch of 30mm.
- Use on timber, MDF, plywood and blockboard.

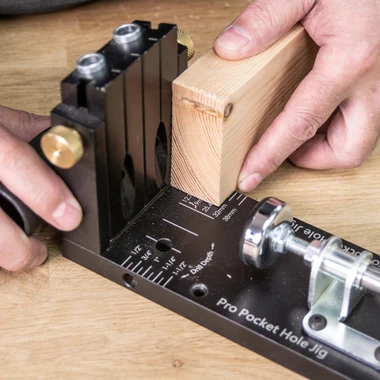

- Workpiece support and end stop.
- Allows a variety of joints to be created individually.

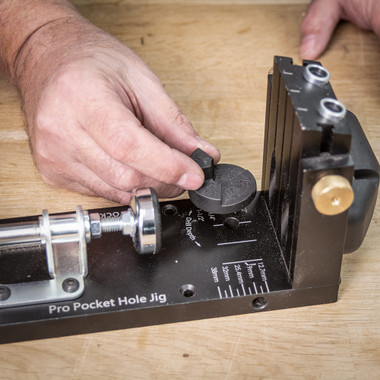

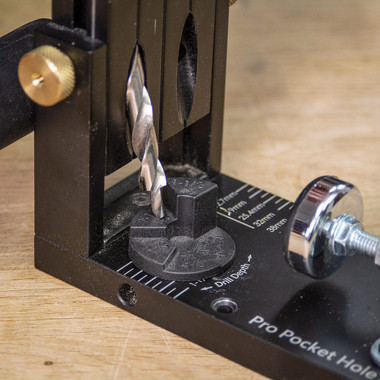

- Quick and easy drill bit depth setting turret.
- Dust extraction spout.
- Square drive self tapping screws for use with a No.2 square drive bit to resist slipping (cam out).
- Workpiece can be handled immediately after gluing & screwing creating time saving benefits.
- No clamps required.
Specifications
- Material thickness min.: 1/2 inch
- Material thickness max.: 1 1/2 inch
- Material width min.: 1 1/2 inch
- Hole pitch: 1 3/16 inch
- Drill diameter: 3/8 inch
- Square drive bit size: No.2
- Dust spout ID: 1 3/16 inch
- Underside T slot: 31/64 -21/64 inch x 15/64 inch
Uses
- Replacement parts for woodworking projects
- face framing
- cabinet building
- mitered frames
- furniture assembly
- DIY home improvements
- quick jointing solutions
- precision drilling
- hobbyist and professional woodworking
Download Manual Instructions PDF
Trend Pro Pocket Hole Jig
