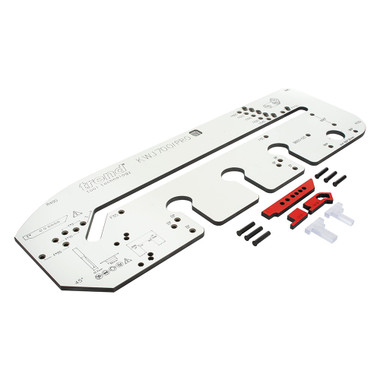

Trend Professional 27-1/2 Inch Multi-Material Worktop Jig, Mason Mitre Joints, Front Edge Alignment, KWJ700/PRO

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Discover the cutting-edge features of our innovative worktop jig, designed to elevate your woodworking projects with precision and efficiency. Our Front Edge Alignment Technology eliminates the need for traditional setup pins, ensuring accurate positioning at the start of the female mitre joint for seamless fitting on scribed or out-of-square worktops. The Narrow Inset System, combined with inset gauges, allows for quick and precise creation of 3mm and 10mm insets, perfect for enhancing the aesthetics of square-edged and modern bullnose worktops while minimizing tool wear and battery drain. With Male Cut-Line Positioning Devices, the jig accounts for an 8.65mm cutter-to-guide bush offset, delivering highly accurate results in trapped and out-of-square installations. Our Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika Slimline, ensuring a seamless fit and efficient assembly process. Additionally, the Indexed Backsets cater to diverse worktop widths of 600, 610, 616, 620, 635, and 700mm, allowing for quick and accurate setups to align the female joint. Experience the ultimate in precision and convenience with our state-of-the-art worktop jig, designed to meet the needs of both professional and DIY enthusiasts.

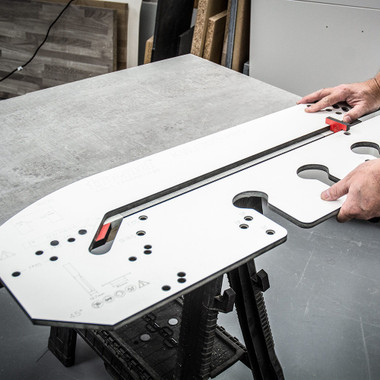

  • Front Edge Alignment Technology* accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width.

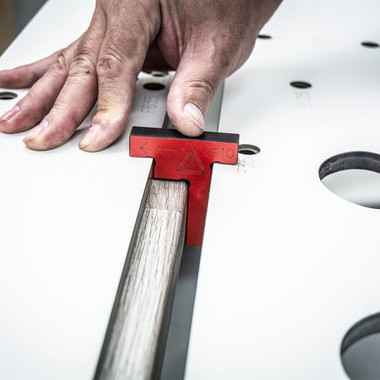

  • Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime.

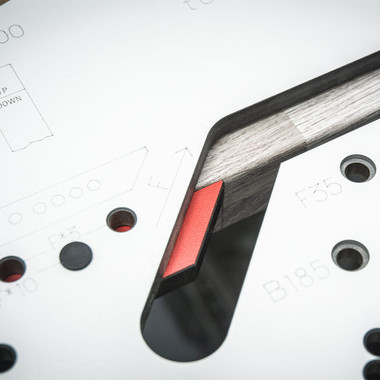

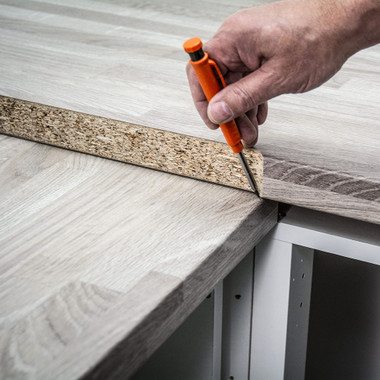

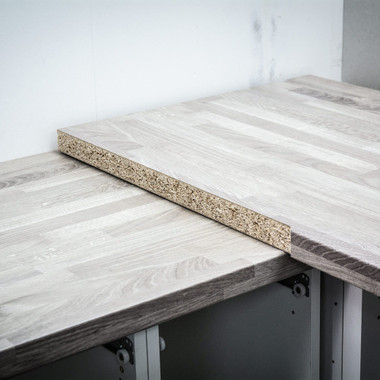

  • Male Cut-Line Positioning Devices* allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installations.
  • Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts.

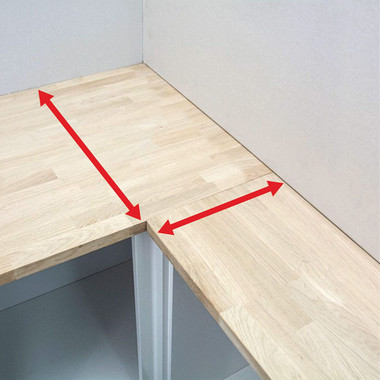

  • Indexed Backsets for 600, 610, 616, 620, 635, and 700mm worktops for standard 90º installations.
  • 400mm Radius for breakfast bar and peninsula trimming.

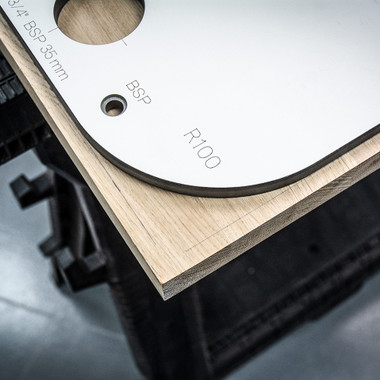

  • R100mm, R40mm and 45° Corners for edge finishing.
  • 90° Straight Cuts for accurate skimming and trimming.
  • 35mm Hinge / ¾” BSP Recess for surface-mount monobloc tap and concealed hinge installation.
  • CNC-Machined Compact Grade HPL provides precision, strength and durability

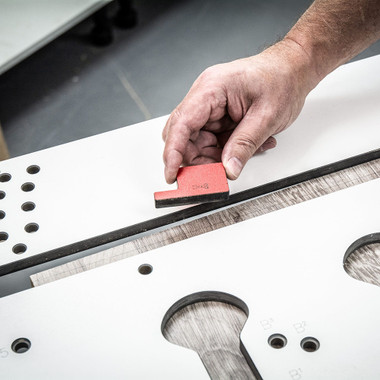

  • 8mm Radius Gauge ensures worktops are suitable for a 10mm narrow inset.

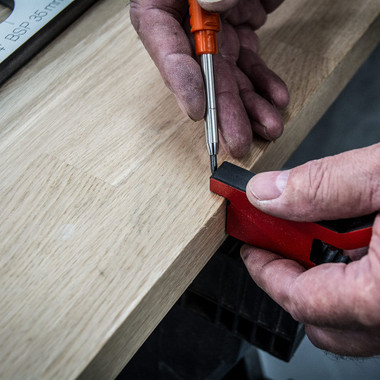

  • 8.65mm Marking Gauge helps to perfectly position the jig for peninsula, radius and 45° corner finishing.

  Specs:

  • Backsets: 600/610/616/620/635/700 mm
  • Bolt Recess Centres: 175 mm
  • Bolt Recesses: 3
  • Corner Radius: 40/100 mm

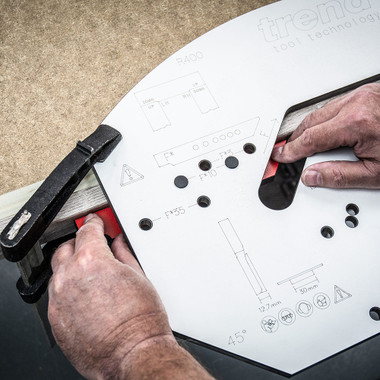

  • F-Clamps: min. 80 mm throat x 2
  • Guide Bush: 30 mm
  • Insets: 3/10/35 mm
  • Length: 1010 mm
  • Peninsular Radius: 400 mm
  • Thickness: 12 mm
  • Weight: 5.5 kg
  • Width: 340 mm

  Requires:

  • Plunge Router: 1/2inch
  • Router Cutter: 12.7mm dia. x 50 mm length

  Uses:

  • Professional 700mm multi-material worktop routing jig
  • Routes mason mitre and butt joints in worktops with ease

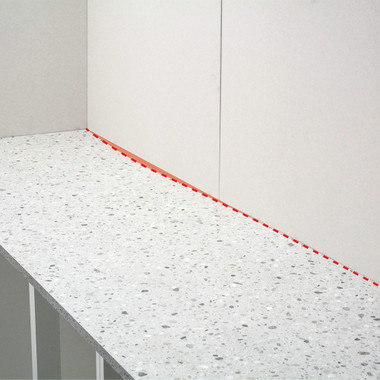

  • Aligns perfectly for scribed and non-standard worktop widths
  • Helps form inset corners with dedicated gauges
  • Ideal for kitchen fitting and carpentry installations
  • Provides consistent, accurate router guidance every time
