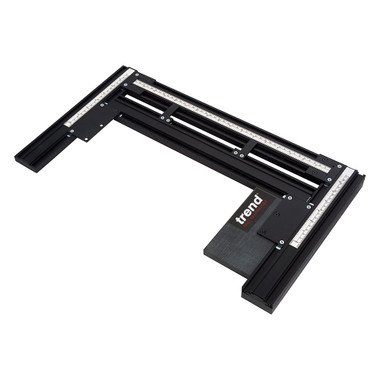

Trend Varijig Tenon and Grooving Jig for Precise Routing of Grooves and Tenons, VJS/TG/JIG

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Achieve precision in your woodworking projects with the Trend Varijig Tenon and Grooving Jig, designed for cutting grooves and tenons with a router. This versatile jig features an adjustable frame that accommodates narrower or wider grooves, with a maximum adjustment of 2-3/4 inches based on your router base diameter. Not only can it route grooves and tenons, but it also allows for crosscutting boards with a router or circular saw, and the edge of the frame serves as a guide for trimming panels square. With two sliding stops to set groove length, you can expect consistent and accurate results every time. Additionally, the squaring butt of the jig can accept a spelch block for full-length grooves, ensuring you achieve the best results when using a router with a minimum 5/16 inch guide bush projection. Elevate your woodworking with this reliable and multifunctional jig.

  Allows grooves and tenons to be cut using a router.

  • Can be used to crosscut boards with a router or circular saw.
  • Frame is adjustable to allow narrower or wider grooves to be routed.
  • The max. adjustment is 2 3/4 inch depending on the diameter of the router base.
  • The edge of the frame can be used as a guide to trim a panel square using a router.
  • Two sliding stops to set groove length.
  • Squaring butt has the facility to accept a spelch block to allow a full-length groove.
  • Fixing screws are included for this purpose. Working length is 15 3/4 inch.
  • Use with a router with a guide bush with a minimum 5/16 inch projection fitted.
  • Router not included.

  Uses

  • Replacement for traditional tenon and groove cutting methods
  • woodworking
  • precise routing
  • adjustable groove widths
  • crosscutting boards
  • panel trimming
  • consistent results
  • squaring feature for full-length grooves
