Wera 05059297001 Kraftform Kompakt 62, 33 Pieces

Brand: Wera

SKU: #05059297001
$101.58
$84.65
Save 17% ($16.93)
(You save $16.93 )
Free shipping on orders $49 and up
Order within 16h 12m 0s to ship today.
- +
Adding to cart… The item has been added
Buy Now Pay Later

Earn 254 points with this purchase!

Includes
  • 1x 816 R Bitholding screwdriver with Rapidaptor quick-release chuck 1/4" x 119 mm
  • 1x 851/4 Z bit PH 1 x 89 mm
  • 1x 851/4 Z bit PH 2 x 89 mm
  • 1x 851/4 Z bit PH 3 x 89 mm
  • 1x 855/4 Z bit PZ 1 x 89 mm
  • 1x 855/4 Z bit PZ 2 x 89 mm
  • 1x 855/4 Z bit PZ 3 x 89 mm
  • 1x 867/4 Z TORX® BO bit with bore hole TX 8 x 89 mm
  • 1x 867/4 Z TORX® BO bit with bore hole TX 10 x 89 mm
  • 1x 867/4 Z TORX® BO bit with bore hole TX 15 x 89 mm
  • 1x 867/4 Z TORX® BO bit with bore hole TX 20 x 89 mm
  • 1x 867/4 Z TORX® BO bit with bore hole TX 25 x 89 mm
  • 1x 867/4 Z TORX® BO bit with bore hole TX 30 x 89 mm
  • 1x 867/4 Z TORX® BO bit with bore hole TX 40 x 89 mm
  • 1x 867/4 Z TORX® BO bit with bore hole TX 27 x 89 mm
  • 1x 840/4 Z Tamper-proof Hex-Plus BO bit 2 x 89 mm
  • 1x 840/4 Z Tamper-proof Hex-Plus BO bit 2.5 x 89 mm
  • 1x 840/4 Z Tamper-proof Hex-Plus BO bit 3 x 89 mm
  • 1x 840/4 Z Tamper-proof Hex-Plus BO bit 4 x 89 mm
  • 1x 840/4 Z Tamper-proof Hex-Plus BO bit 5 x 89 mm
  • 1x 840/4 Z Tamper-proof Hex-Plus BO bit 6 x 89 mm
  • 1x 800/4 Z bit 1.2 x 6.5 x 89 mm
  • 1x 871/4 TORQ-SET® Mplus bit 10 x 89 mm
  • 1x 871/4 TORQ-SET® Mplus bit 6 x 89 mm
  • 1x 871/4 TORQ-SET® Mplus bit 8 x 89 mm
  • 1x 875/4 TRI-WING® bit 1 x 89 mm
  • 1x 875/4 TRI-WING® bit 2 x 89 mm
  • 1x 875/4 TRI-WING® bit 3 x 89 mm
  • 1x 875/4 TRI-WING® bit 4 x 89 mm
  • 1x 857/4 Z Spanner bit 4 x 89 mm
  • 1x 857/4 Z Spanner bit 6 x 89 mm
  • 1x 857/4 Z Spanner bit 8 x 89 mm
  • 1x 857/4 Z Spanner bit 10 x 89 mm
  • 1x Hook and Loop Fastener Strip 70 - 50x70 mm

PRODUCT DETAILS

Click an item to expand and learn more

  • Overview

    Pouch with 89-mm long bits. Includes 816 R Kraftform holder with Rapidaptor quick-release chuck and multi-component Kraftform handle for low-fatigue working. Suitable for manual and power tool operations; 33-piece.

    • Pouch with 89 mm-long bits
    • Kraftform holder with Rapidaptor quick-release chuck
    • Rapidaptor quick-release chuck allows rapid bit change
    • Tough viscous bits for universal use
    • Suitable for manual and power tool operations

    Uses:

    • Assembling furniture and cabinetry
    • Repairing electronic devices like computers and smartphones
    • Performing automotive maintenance and repairs
    • Handling electrical installations and fixes
    • DIY home improvement projects
    • Crafting and model building
    • Fixing bicycles and other sporting equipment
    • Assembling and maintaining garden equipment
    • Performing precision work in tight spaces
    • Creating custom modifications to tools and devices



    For fixed workplace locations and external sites

    Frequently, users have to work with their tools at a fixed workplace location as well as at external sites. Just as frequently, it is only on site that a decision is taken as to whether to work manually or with a power tool. The Kraftform Kompakt tool sets equip the user for both types of operation with just single set. Additionally, the sets are kept in belt pouches or plastic cases. This keeps them secure and clean and means that they are clearly arranged for easy tool selection, something that is very practical when they are to be used or transported.

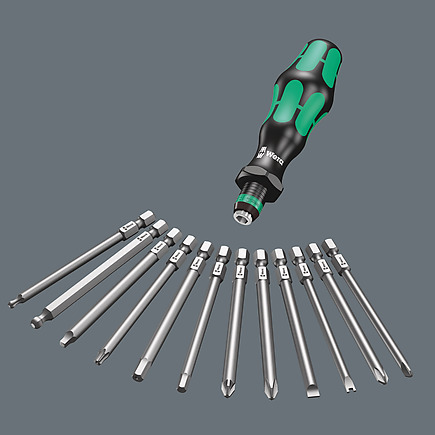

    Handle/interchangeable blade system

    The handle/interchangeable blade system allows rapid exchange of the blades required for a wide range of applications.

    Manual and power tool operations

    The sets come with a Kraftform handle, quick-release chuck and bits for manual and power tool operations.

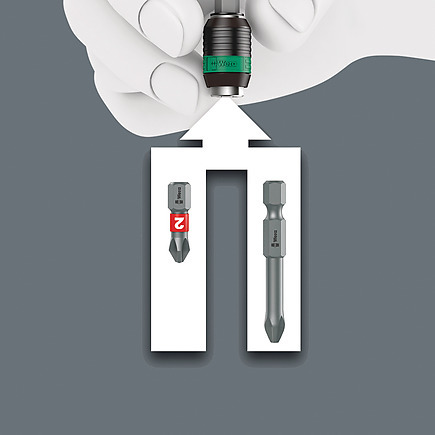

    Chuck-all

    The Rapidaptor quick-release chucks hold ¼" DIN ISO 1173-C 6,3 and E 6,3 as well as Wera series 1 and 4 bits.

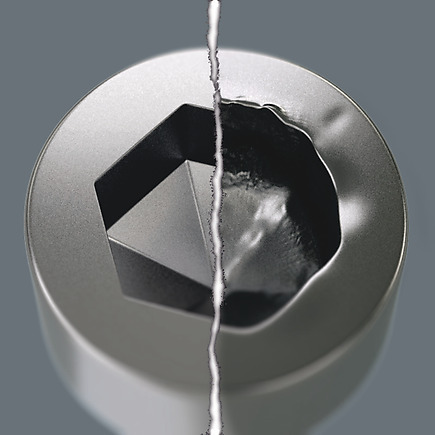

    Hex-Plus

    Hexagon screws can endure a problem because the contact surfaces delivering the power from the conventional tool, is transferred to the screw via very small surface areas. The consequence: the screw can become damaged (rounding out). Hex-Plus tools have a greater contact surface that prevents this from happening! At the same time, as much as 20 % more torque can be applied. Good to know: Hex-Plus tools fit into every standard hexagon socket screw!

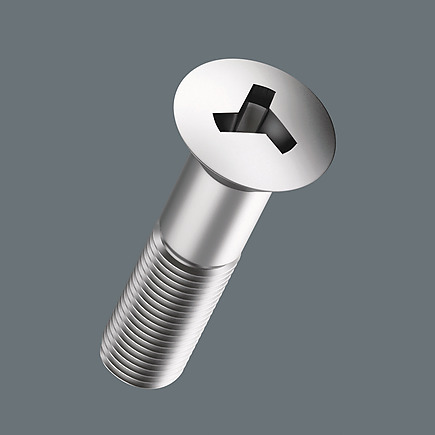

    The TRI-WING® screwdriving system

    The TRI-WING® screwdriving system is mainly found in aviation and household technology (here e.g. on live components). The asymmetric arrangement of the three profile flanks prevents the use of anything other than the original tools. The high-precision Wera profile design ensures a secure fit of the tool in the head of the screw. The blades are manufactured out of bit material. The Wera know-how with regard to the hardening technology ensures a long service life of the tool.

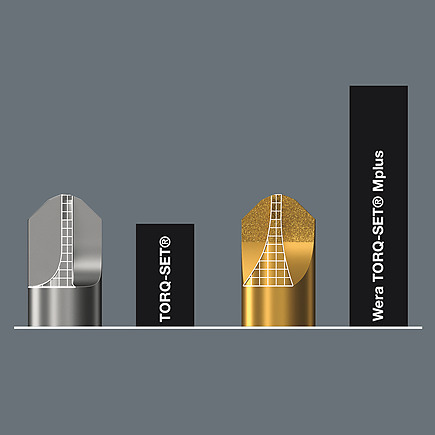

    TORQ-SET® Mplus

    Wera developed the Mplus profile with stronger flanks compared with tools with a conventional TORQ-SET® profile. This results in approximately 70 % extra torsional strength and greatly extends the service life of Wera Mplus tools.

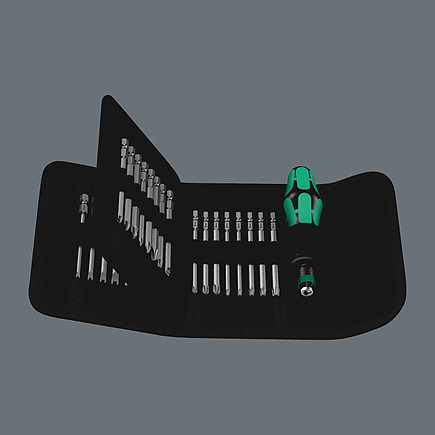

    Storage and transport

    The tools can be stored and carried either in a solid plastic case or a robust pouch. In this way the tool is always to hand.
