PRODUCT DETAILS
Click an item to expand and learn more
-
Woodpeckers Slab Flattening Mill PRO builds on the success of our original Slab Flattening Mill. Working with feedback from thousands of Slab Flattening Mill customers we redesigned the router carriage with a greater thickness range and integrated dust capture right at the source. We also extended the rails, increasing the standard width capacity to a massive 48-1/2" wide (using a 2” cutter…even more with a larger bit). And, new for 2024, you can get your Slab Flattening Mill PRO with the power of the EZ-Drive System. Now, instead of pushing and pulling the router carriage, you can feed it across and along your slab with two simple hand cranks.

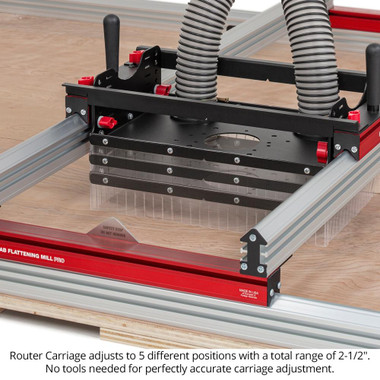

Woodpeckers Slab Flattening Mill PRO guides your router over your slab in a controlled plane. Since you’re using a router instead of a planer-style cutterhead, tear-out is minimal…and thanks to our uniquely engineered rails and enhanced solid steel carriage, the surface will only need light sanding afterwards. The router carriage is the main feature that sets the Slab Flattening Mill PRO apart from the original Slab Flattening Mill. The new carriage adjusts in height by a full 2-1/2". Depending on your router and router bit, you can work on stock just a fraction of an inch thick or up to 3-3/8” without ever shimming either the rails or the slab. We integrated dust collection in the new router carriage, too. The twin pick-up points and flexible full-surround curtain capture well over 90% of all shavings and dust.
Looking to make the Slab Flattening Mill PRO even easier to use, our engineers developed the EZ-Drive System. Now you can feed the router carriage across and along the slab with two hand cranks. Synchronized belts on both sides of the carriage ensure smooth and even travel. You can bundle EZ-Drive with either the basic or extended Slab Flattening Mill PRO. If you already have a Slab Flattening Mill (PRO or original) you can add EZ-Drive to it. Just click the EZ-Drive link below where it says "Related Products".
Similarly, if you have an original Slab Flattening Mill and love the features of the PRO, there's an Upgrade Kit that puts the new router carriage on your existing rails. We also offer a range of surfacing router bits including ones with interchangeable carbide tips. For edge milling we offer down-cut solid carbide spiral bits in several diameters and cutting lengths.
Just like the original, you can get the Slab Flattening Mill PRO in either a Basic or Extended configuration. The Basic includes one pair of base rails which gives you a maximum slab length of 58". The Extended adds a second set of rails, extending the maximum slab length to 134" (that’s right…over eleven feet!)
Like all Woodpeckers products, the Slab Flattening Mill PRO is precisely machined and carefully inspected in Strongsville, Ohio factory (just south of Cleveland). Don’t put off that natural edge project you’ve been dreaming about any longer. Order your Woodpeckers Slab Flattening Mill-PRO today!
Uses:
- Extend the capacity of the Slab Flattening Mill for processing larger wood slabs
- Ideal for woodworking projects involving large pieces, such as tabletops or counters
- Useful in professional carpentry and woodworking shops for expanding project capabilities
- Enhance DIY home renovation projects by allowing the handling of oversized timber
- Assist in the creation of custom furniture pieces by providing more surface area to work with
- Enable the flattening of live edge slabs for unique, natural-looking finishes
Read More
-
-
Download Manual Instructions PDF
Slab Flattening Mill-PRO | Woodpeckers Tools
Slab Flattening Mill PRO Assembly & Setup | Woodpeckers Tools
Insider Tips For Slab Flattening Mill PRO | Deep Dive | Woodpeckers Tools
