Carbide-Tipped Counterbore with No Burning and Marring Adjustable Free Spinning, Low Friction Depth-Stop with No-Thrust Ball Bearing

Carbide-Tipped Counterbore with No Burning and Marring Adjustable Free Spinning, Low Friction Depth-Stop with No-Thrust Ball Bearing

$0.00

Free shipping on orders $49 and up

SEE OPTIONS BELOW

*Sort the Table by clicking on the Column Heading

Items prices can be seen by clicking on the tool number.

DDiameter D1 BCutting Height dShank LOverall Length Description Drill Din Replacement Drill Use with Plug Cutter Wood Screw Size Brand Tool No Our Price Wish List Ready To Buy

3/8

5/32

5/64-13/32

1/4

2-5/8

Hex Shank

1897

630-230

55220

Amana Tool

55472

Amana Tool 55472 Carbide Tipped Counterbore with No Burning and No Marring Adjustable Depth Stop with No-Thrust BB, 3/8 D x 5/32 Drill D x 1/4 Inch Quick Release Hex SHK More info

$66.20$49.65

D	D1	B	d	L	Description	Drill Din	Replacement Drill	Use with Plug Cutter	Wood Screw Size	Brand
3/8	5/32	5/64-13/32	1/4	2-5/8	Hex Shank	1897	630-230	55220	#8	Amana Tool

Qty:

3/8

3/16

5/64-13/32

3/8

2-9/16

Round Shank

1897

630-402

55220

#10

Amana Tool

55476

Amana Tool 55476 Carbide Tipped Counterbore with No Burning and No Marring Adjustable Depth Stop with No-Thrust BB, 3/8 D x 5/32 Drill D x 3/8 Inch Round Shank More info

$72.00$54.00

D	D1	B	d	L	Description	Drill Din	Replacement Drill	Use with Plug Cutter	Wood Screw Size	Brand
3/8	3/16	5/64-13/32	3/8	2-9/16	Round Shank	1897	630-402	55220	#10	Amana Tool

Qty:

PRODUCT DETAILS

Click an item to expand and learn more

Overview
Replacement Hex Key: use #5019 (included).

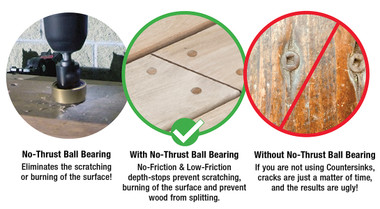

No Burning, No Marring & No Friction Counterbores
Includes drill (slow spiral, High-Speed Steel (HSS) M2 fully ground drill bit).
This unique counterbore features an adjustable, heavy-duty, revolving depth-stop with a no-thrust ball bearing for quick and easy adjustment of the depth without scratching or burning surfaces. These tools combine Amana's well-known, long lasting carbide tipped counterbores with the unique, adjustable & heavy duty revolving depth-stoppers with a no-thrust ball bearing.

No burning, marring or scratching of surfaces

A must-have tool for every woodworker

Adjustable, heavy-duty, revolving depth-stop

HSS drill bit included

Industrial quality, carbide-tipped

2-Wing

With Amana's non-marring adjustable depth stop and no-thrust ball bearing, woodworkers can drill a pilot hole and tapered counterbore in one step. The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect counterbore depth control.

Each cutting edge is manufactured from an Amana-exclusive carbide grade designed to deliver the highest quality of cut, maximum cutting efficiency prolonged tool life.

Excellent for Drilling:

Natural Woods

Man-Made Boards

MDF

Chipboard

Plywood

Aluminum/Non-Ferrous*

Aluminum Composite Materials (ACM)*

Composites

Composite Decking Materials

*WARNING!: For optimal results and extended tool life use lubricant or air cooling. Ensure the material is fixed and drill is stable while drilling.
