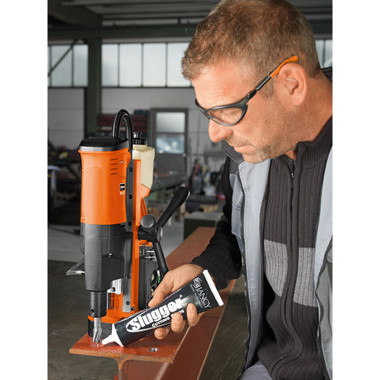

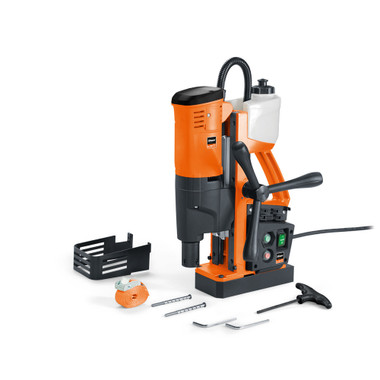

FEIN 72705961090 JME Holemaker III Compact Magnetic Core Drill

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Endurance Magnetic Base Drill up to 1-3/8 in [35 mm]

  The Endurance magnetic base drill is an optimal drilling solution featuring a high-powered German motor designed for use with carbide and HSS cutters. Built for tough jobs and demanding applications, this drill delivers excellent performance, durability, and efficiency for industrial and trade use.

  Product Details

  This extremely wear-resistant magnetic base drill features a durable, newly designed polyurethane motor housing, making it suitable for use in industry and manual trades. Despite its lightweight design, the drill is powerful enough for heavy-duty drilling applications.

  It is a cost-effective solution for use with carbide cutters, which offer longer life, a higher cutting rate, and the ability to cut harder materials. It also performs well with standard HSS cutters. The drill provides an optimum power-to-weight ratio and includes an integrated coolant tank to help extend core drill tool life.

  For added safety, the drill motor does not start when the material thickness is less than 3/16 in [4 mm] if the magnetic holding force is too low. Additional features include a pivoting motor cable, higher RPM for optimal use with carbide cutters, a hand feed wheel that can be mounted on either side, and an integrated hexagon socket holder.

  Technical Data

  Power Consumption: 1,100 W

  Power Output: 510 W

  Cutter Holder: 3/4" straight shank

  Full Load Speed: 450 rpm

  No Load Speed: 590 rpm

  Carbide Cutter Max. Diameter: 1-3/8 in [35 mm]

  HSS Cutter Max. Diameter: 1-3/8 in [35 mm]

  Cutter Max. Drilling Depth: 2 in [50 mm]

  Twist Drill Max. Diameter: 5/8 in [16 mm]

  Stroke: 5-11/16 in [145 mm]

  Total Stroke Range: 10-1/4 in [260 mm]

  Magnetic Holding Force: 2,810 lbs [12,500 N]

  Cable with Plug: 8.9 ft [2.7 m]

  Weight: 25.79 lbs [11.70 kg]

  Vibration and Sound Emission Values

  Sound Pressure Level LpA: 87.7 dB

  Measurement Uncertainty KpA: 5 dB

  Sound Power Level LWA: 98.6 dB

  Measurement Uncertainty KWA: 5 dB

  Peak Sound Value LpCpeak: 102.3 dB

  Measurement Uncertainty KpCpeak: 5 dB

  Vibration Value 1 αhv 3-Way: < 2.5 m/s²

  Measurement Uncertainty Kα: Not specified

  Uses

  Mag Base Drilling in Metal up to 1-1/2" Diameter: Well suitable

  Twist Drilling with Drill Chuck: Well suitable

  Overhead Work: Well suitable

  Installation Work: Well suitable

  Workshop Jobs: Well suitable
