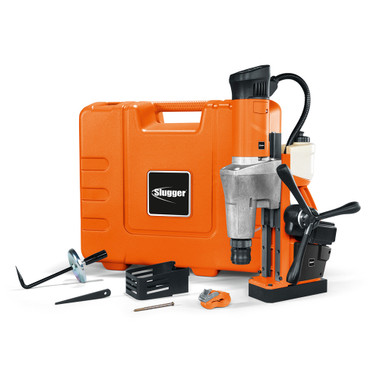

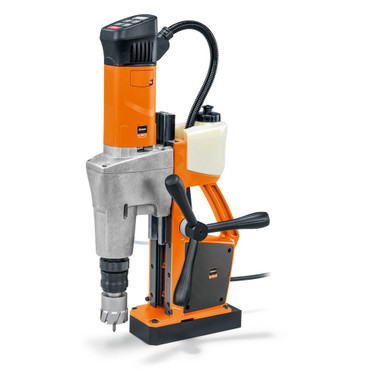

Mag Drill Unit up to 2 in [50 mm]
Universal magnetic drill unit with a 2-speed gearbox and outstanding functionality for flexible operation in the workshop and on the construction site. Compact and powerful, this mag drill is designed for core drilling, twist drilling, tapping, countersinking, and reaming in demanding metalworking applications.
Details
This magnetic drill unit offers compact construction with high functionality for universal use on construction sites and in workshops. The simple, error-proof control concept is positioned in the operator’s field of view for easy operation, while double drill motor guides allow the use of long annular cutters.
It features reversible electronic speed control, a high-power motor with stable speed, and high magnetic holding force for dependable performance. A convenient magnetic holding force indicator supports safe tool positioning, while the integrated coolant tank helps extend core drill tool life. The hand feed wheel can be mounted on either side, and the MT3 interface adds versatility for a range of drilling tasks.
Technical Data
Power consumption: 1,200 W
Power output: 610 W
Cutter holder: 3/4" straight shank
Load speed, 1st gear: 130 - 260 rpm
Load speed, 2nd gear: 260 - 520 rpm
Tool mount: MT 3
Carbide cutter max. diameter: 2 in [50 mm]
HSS cutter max. diameter: 1-5/8 in [40 mm]
Cutter max. drilling depth: 2 in [50 mm]
Twist drill max. diameter: 7/8 in [23 mm]
Tapping: M 16
Max. countersinking diameter: 2 in [50 mm]
Reaming max. diameter: 7/8 in [23 mm]
Cutter change: Tool-free
Stroke: 5-11/16 in [145 mm]
Total stroke range: 12-3/8 in [315 mm]
Magnetic holding force: 2810 lbs [12,500 N]
Cable with plug: 13.1 ft [4 m]
Weight: 31.31 lbs [14.20 kg]
Vibration and Sound Emission Values
Sound pressure level LpA: 82.1 dB
Measurement uncertainty KpA: 5 dB
Sound power level LWA: 95.1 dB
Measurement uncertainty KWA: 5 dB
Peak sound value LpCpeak: 96.2 dB
Measurement uncertainty KpCpeak: 5 dB
Applications
Mag base drilling in metal up to 1-1/2" diameter: Well suitable
Mag base drilling in metal up to 2" diameter: Well suitable
Twist drilling with drill chuck: Suitable
Twist drilling with MT fitting: Well suitable
Tapping: Well suitable
Countersinking: Well suitable
Reaming: Well suitable
Performing overhead work: Suitable
Installation work: Well suitable
Workshop jobs: Well suitable
Product Features
Magnet monitor system
Magnet holding force display
Forward/reverse operation
Electronic speed setting
Memory function
Speed-controlled tacho electronics
Uses
- Construction site drilling
- Workshop drilling
- Steel fabrication
- Magnetic base drilling in metal
- Core drilling up to 2 in diameter
- Twist drilling with drill chuck
- Twist drilling with MT fitting
- Tapping applications
- Countersinking work
- Reaming applications
- Installation work
- Metal plate drilling
- Structural steel drilling
- Maintenance and repair work
