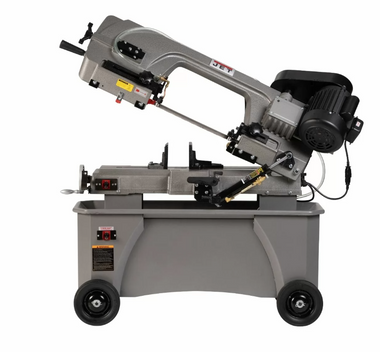

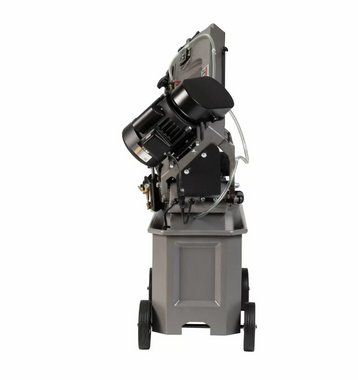

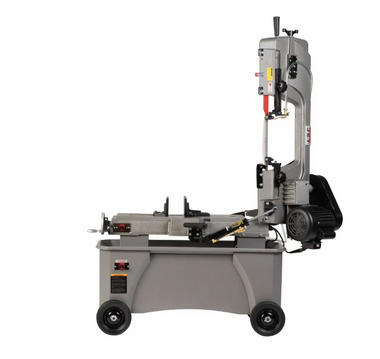

Jet JT9-414559 7 inch x 12 inch Horizontal / Vertical Bandsaw

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  The JET HVBS-712 Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. JET increased the width and height of the stand and added new features that exceed expectations. The HVBS-712 is another innovative JET product packed with features you’ve come to expect.

  Features

  • 9" x 12" worktable in the vertical position
  • Adjustable Material Stop
  • Adjustable material stop for repeatability
  • Blade drive is a belt to sealed, hardened, and ground gear drive system
  • Blade wheels are made from flanged cast iron
  • Blade wheels are made from flanged cast iron for increased durability
  • Cast mounted adjustable hydraulic downfeed
  • CSA/CUS Certified
  • Four 8" Rubber Wheels for Ease of Movement
  • Improved Height and width of stand with built-in storage cabinet and chip tray

  Specifications

  Stock Number	JT9-414559
  Blade Speeds (SFPM)	86, 132, 178, 260
  Blade Wheel Diameter (In.)	11-3/4
  Coolant Capacity (Gal.)	1
  Drive	Step Pulley
  Gross Weight (Lbs)	418
  Head Movement (Deg.)	0
  Model Number	HVBS-712
  Motor (HP)	3/4 HP, 115/230V, 1Ph
  Net Weight (Lbs.)	374
  Overall Dimensions (L x W x H) (In.)	48 x 17 x 40
  Prewired Voltage (V.)	115
  Prop 65	Cancer and Reproductive Harm
  Rectangle at 45 Degrees (In.)	6-1/2 x 4-1/2
  Rectangle at 90 Degrees (In.)	4 x 11 / 7 x 10-3/8
  Round at 45 Degrees (In.)	4-1/2
  Round at 90 Degrees (In.)	7
  Square at 45 Degrees (In.)	4-1/2 x 4-1/2
  Square at 90 Degrees (In.)	7 x 7
  Vise Swivels (Deg.)	45
  Warranty	2 Year
  Weight (Lbs.)	418

• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF
