12 Inch Planer Jointer 3HP

*Ships direct from manufacturer, Shipping fees may apply

*Coupon codes are not applicable for this item

PRODUCT DETAILS

Click an item to expand and learn more

Overview

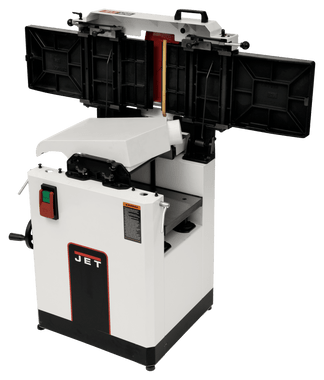

You don’t have to choose between buying a jointer or a planer – with the JPJ-12B, you can have both. Leave it to JET to design a machine that allows quick changeover between jointing and planing functions. This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower motor that can handle the toughest lumber. A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism, while providing solid mounting for the associated controls and support for the jointer table and fence assemblies. Best of all, the fence can stay put when changing over functions.

Uses:
- Ideal for woodworking shops that require both jointing and planing but have limited space.
- Suitable for professional carpenters and hobbyists who need a multifunctional tool for various woodworking projects.
- Great for creating smooth finishes on rough lumber, preparing wood for fine furniture making.
- Useful in educational settings like trade schools where students learn multiple woodworking techniques on the same machine.
- Beneficial for small-scale production environments where quick changeover between tasks is necessary to maintain productivity.
- Perfect for custom woodworking shops, allowing for precise adjustments and fine-tuning of wood pieces for bespoke projects.
Specifications:
- Stock Number JT9-715100
- Cuts Per Minute 15,900
- Cutterhead Diameter (In.) 2-3/4
- Cutterhead Speed (RPM) 5300.0000
- Dust Collection Minimum CFM Required (CFM) 550
- Dust Port Outside Diameter (In.) 4
- Feed Rate - Planing (FPM) 2 speed 16 to 26 FPM
- Fence Positive Stops (Deg.) 90 and 45 R
- Fence Size (L x H) (In.) 43-1/4 x 5-7/8
- Fence Tilt (Deg.) 90 to 45 R
- Jointer Cutting Capacity (W x D) (In.) 12 x 1/8
- Jointer Table Size (L x W) (In.) 55x12-1/32
- Maximum Depth of Cut - Planing (In.) 5/32
- Maximum Planing Thickness (In.) 8-3/4
- Maximum Planing Width (In.) 12
- Minimum Planing Length (In.) 10
- Model Number JPJ-12B
- Motor Power (HP) 3
- Motor Voltage (V.) 230
- Net Weight (Lbs.) 453
- Number of Knives 3
- Overall Dimensions (L x W x H) (In.) 55-7/16 x 28-15/16 x 40
- Overall Height (In.) 40
- Planer Cutting Capacity (W x D) (In.) 12 x 8-3/4
- Planer Table Size (L x W) (In.) 25 X 12-1/32
- Prewired Voltage (V.) 230
- Prop 65 Cancer and Reproductive Harm
- Recommended Circuit Size (Amps.) 30
- Standard Knife Size (L x W x T) (In.) 12-3/16 x 11/16 x 1/8
- Type of Cutterhead Straight Knife
- Full Load Amps 15
- Running Amps 4.5
