Laguna Tools JX|8-SHEARTEC-II Jointer 3HP 220V 1PH

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  The Laguna JX|8 ShearTec II is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|8 is available in 2 versions. This version is the 220 volt 3 HP version.

  Features:

  • Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
  • Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece.
  • New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine

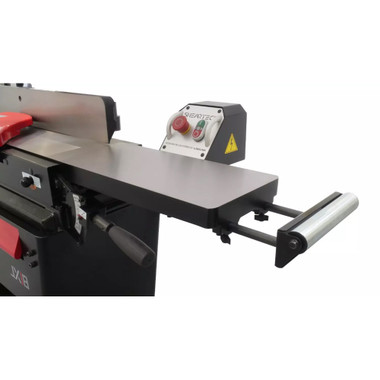

  • In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer materials.
  • ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on JX|8 ShearTec II Jointer
  • Built-In Wheels – No need to purchase a separate mobility kit
  • Cast-Iron Tables and Fence

  Additional Details:

  • Motor: 220V 3HP 1 Phase 60hz/12 Amp
  • CSA: Yes
  • Bed Size: 8″ x 72″
  • Infeed Table Pull-Out Extension: 8″
  • Rabbetting Capacity: 1/2″
  • Fence Size: 38″ x 4-¾″ Cast Iron
  • Fence Tilt: ±45/90°
  • Max. Depth Of Cut: 1/8″
  • Table Height From Floor: 31″
  • Safety Bar Shut-Off: Yes
  • Bracket To Mount Light: No
  • 110V Outlet For Light: No
  • Bracket To Mount Feeder: No
  • Dust Port Diameter: 4″
  • Plug (NEMA 6-20P): Yes
  • Cutterhead Insert #: 54 x 4-Sided Carbide, 6 Row
  • Cutterhead RPM: 5500
  • Cutterhead Diameter: 3-1/8″
  • Bed Adjustment: Parallelogram
  • Dimensions Set Up (Approx): 75-1/2″ x 26-1/2″
  • Base Footprint Dimensions: 32-1/2″ x 15-1/2″
  • Shipping Dimensions: 40″ x 18″ x 26″ – 139 Lbs. and 82″ x 25″ x 17″ – 319 Lbs. (Two Boxes)

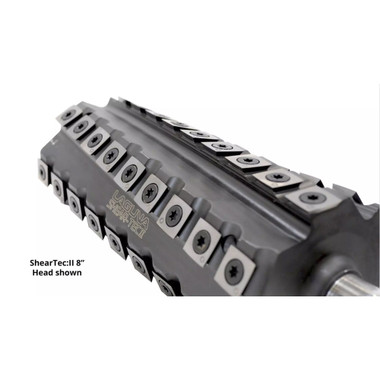

  The ShearTec: II features 4-sided solid carbide inserts with a T-shoulder rather than a cone-shaped design, which helps prevent cracking of the inserts.

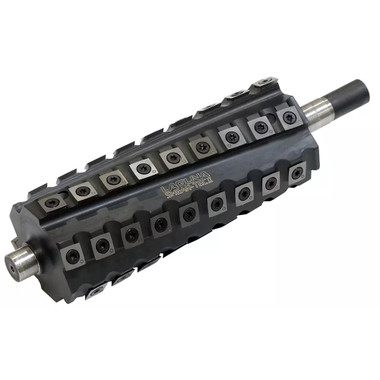

  The ShearTec II cuttherhead comes as standard equipment on JX|8 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without need for a knife setting jig.

  Uses:

  • Smoothing rough lumber surfaces
  • Creating precise joints like tenons and rabbets
  • Flattening wood boards for tabletops or panels
  • Squaring edges of boards for seamless joins
  • Producing a smooth finish on hardwoods
  • Milling custom thicknesses for project components
  • Beveling edges for aesthetic or joint improvements
  • Tapering legs for tables and chairs
  • Planing glued-up panels to even thickness
  • Removing old finishes or layers from reclaimed wood
