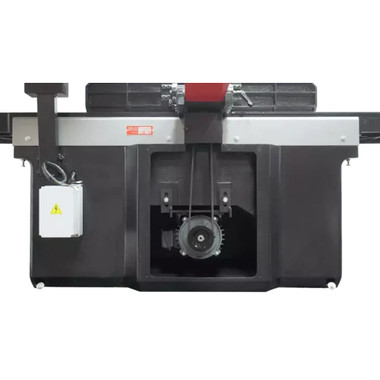

Laguna MJO6405-5HP-3PH-0800 Jointer 16" HD with ShearTec - 5hp 3ph 220v

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  J|16 Industrial Jointer

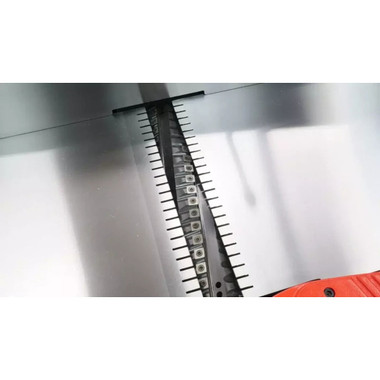

  The J|16 Jointer is the true heavyweight of jointers. Our 16″ version features a total length of over 8 feet. The heavy cast-iron tables are supported by parallelogram adjusters and controlled through precision hand-wheel adjusters. The Laguna ShearTec cutterhead is equipped with German carbide insert knives for maximum durability and quick replacement. The fence is a heavy casting supported by a large diameter shaft with rack and pinion movement for smooth, repeatable accuracy. The overhead control panel allows for quick, easy operation. The swing-away guard is easily adjustable and removable for knife replacements.

  Features:

  • 98″ Table Length
  • 16″ Jointer Width
  • 31-1/2″ Table Height

  Specs & Details

  • Table Area (L x W): 112″ x 16″
  • Max Jointing Width: 16″
  • Table Height: 31-½”
  • Fence Angle: 0-45°
  • Cutterhead: 6 Row
  • Knives: 144 qty
  • Cutterhead Speed: 5000 RPM
  • Motor: 5HP 3PH
  • Net Weight: 1606 lbs.
  • Shipping Weight: 1760 lbs.

  Uses

  • Jointing wide boards
  • Flattening board faces
  • Straightening board edges
  • Preparing lumber for woodworking projects
  • Industrial woodworking applications
