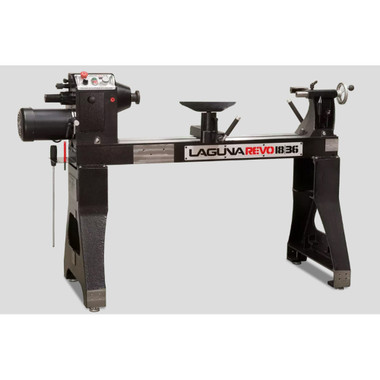

Laguna MLAREVO 1836-220 Revo 18|36 Lathe, 2HP, 220v

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  The first feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe. The bed is made from steel, allowing the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well-known longevity & strength. Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings, you will get an incredible amount of torque. The DRO gives you an accurate RPM readout whenever any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle. The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your workflow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.

  Features:

  • Electrical: 2HP, 220 Volt, 60 hz
  • Motor: Induction, 1725 RPM, TEFC
  • VFD: Delta S1 Variable Frequency Drive

  Additional Details:

  • Phase: 1 Phase Input, 3 Phase Output
  • Poly-Groove Drive Belt With EZ Access
  • Recommended Breaker: 15 Amp
  • Spring Loaded Spindle Lock
  • Maximum Outboard Swing: 32″ (w/ Optional 20″ Extension Kit Installed)
  • Swing Over Banjo: 13-½″
  • Bed Gap: 50mm
  • Steel Bed: ASTM A36
  • Spindle Taper: MT#2
  • Toolrest Post Size: 1″
  • Swing Over Bed: 18″
  • RPM High: 135-3500
  • RPM Low: 50-1300
  • Tailstock Quill: #2 MT
  • Floor To Spindle Center: 41-½″
  • Accepts Vacuum Chuck: Yes
  • Front Bearing: TPI Taiwan 6207LLU
  • Rear Bearing: TPI Taiwan 6205LLU
  • Spindle Index #: 14/36/48 with Lock
  • Distance Between Centers: 36″
  • Headstock Through-Bore: ⅜″
  • Headstock Travel: Full Length
  • Tailstock Through-Bore: ⅜″
  • Tailstock Storage Of Centers
  • Spindle Size: 1-¼″ x 8 TPI Right Hand Thread
  • Live Center Threads: 3/4″ – 10 UNC
  • Floor To Bed: 32-½″ with Pads
  • Floor Space (W x D x H): 60″ x 26″ x 47″
  • Plug: 6-15P
  • Shipping Weight: 570 lbs
  • Shipping Dimensions (L x W x H): 61″ x 27″ x 28″

  Uses:

  • Turning large bowls and platters
  • Crafting table legs and balusters
  • Creating wooden pens and small ornaments
  • Sculpting artistic pieces from wood blocks
  • Making wooden vases and hollow vessels
  • Producing baseball bats and other sports equipment
  • Carving detailed chair spindles
  • Turning wooden candlesticks and lamp bases
  • Crafting wooden goblets and mugs
  • Shaping architectural columns and posts
• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF

  Download Parts Manual PDF

• Videos

  Revo 18|36 Revolutionize | Laguna Tools

  Revo 18|36 Lathe | Laguna Tools

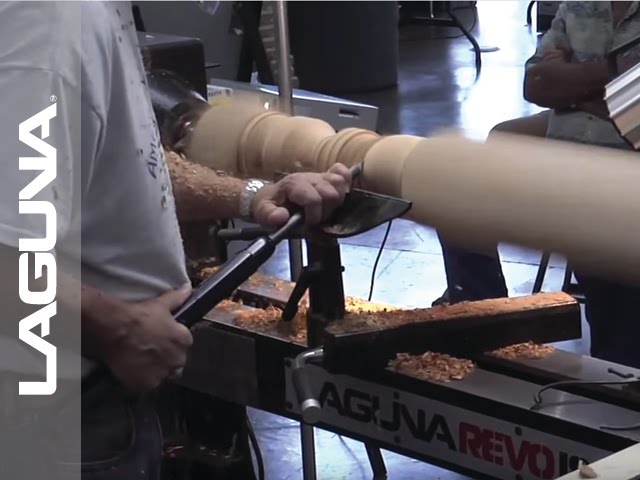

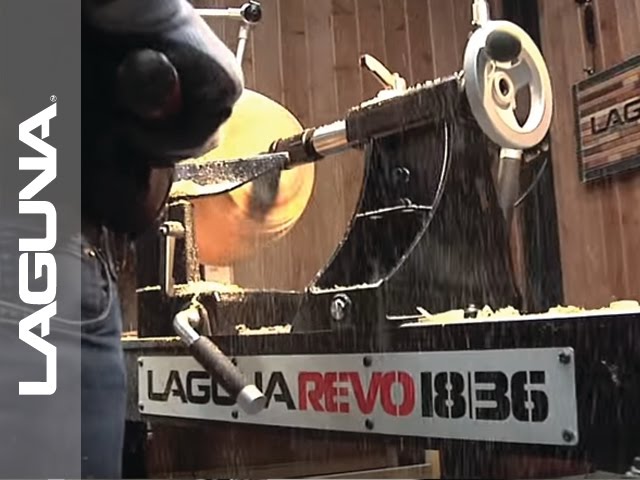

  Leg Turning on the Revo 18|36 Lathe

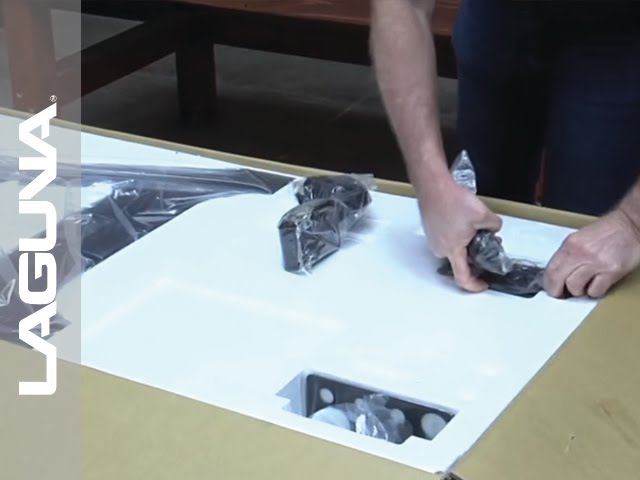

  REVO 1836 Lathe Setup - Unboxing The Lathe - Part 1

  REVO 1836 Lathe Setup - 3 Inch Riser Blocks Install - Part 2

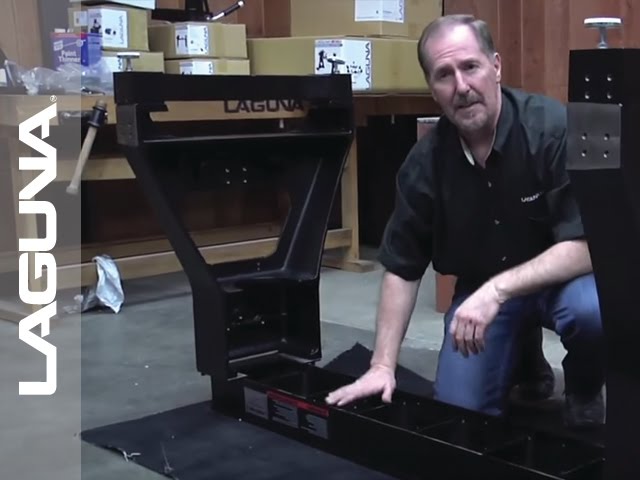

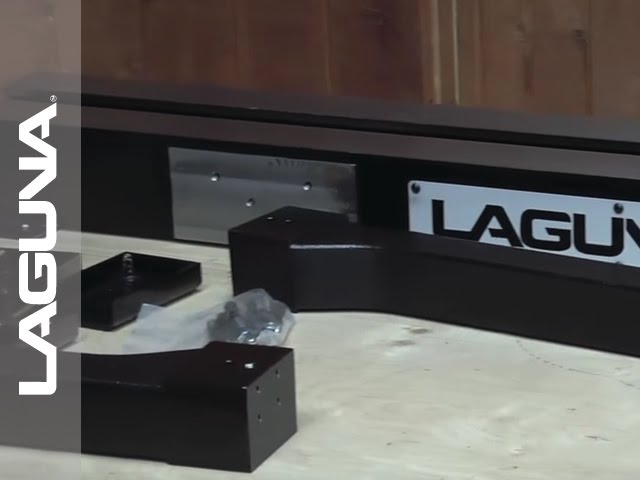

  REVO 1836 Lathe Setup - Mount Legs To Bed - Part 3

  REVO 1836 Lathe Setup - Mount Head And Tailstocks - Part 4

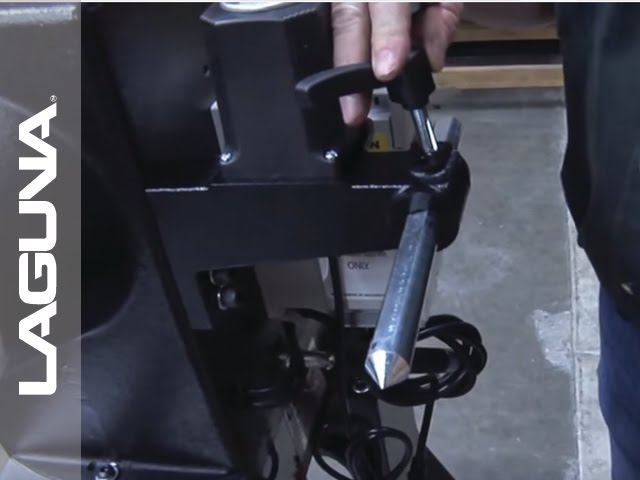

  REVO 1836 Lathe Setup - Install Standard Accesorries - Part 5

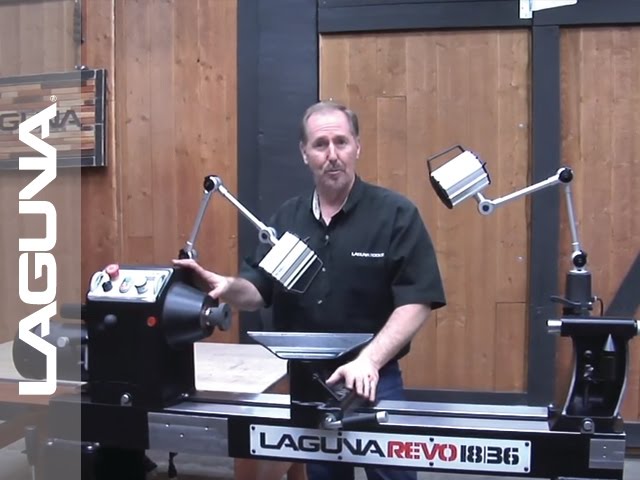

  REVO 1836 Lathe Setup - Mounting The Lights - Part 6

  REVO 1836 Lathe Setup - Installing The Comparator - Part 7

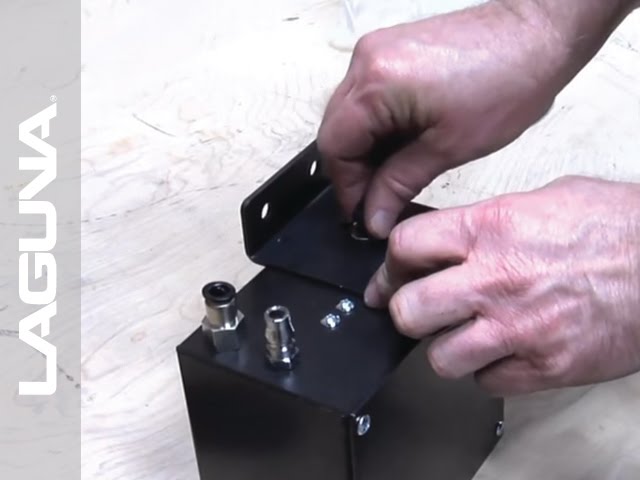

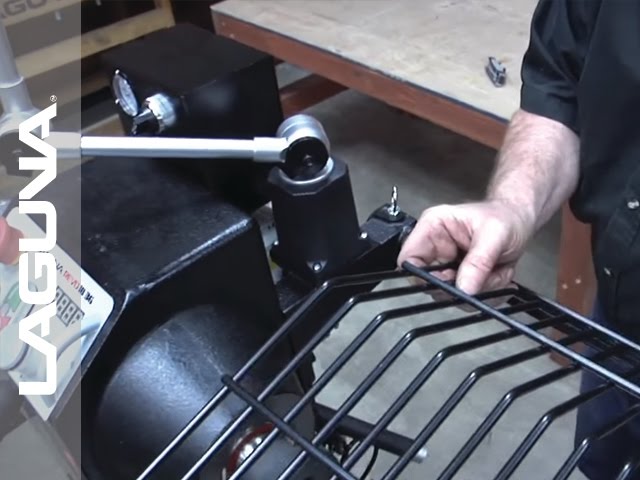

  REVO 1836 Lathe Setup - Install The Vacuum Inverter - Part 8

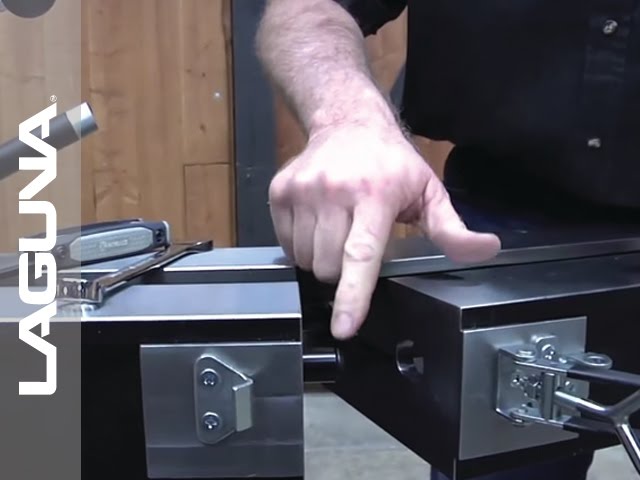

  REVO 1836 Setup - Install 12 Inch Swingaway Extension - Part 9

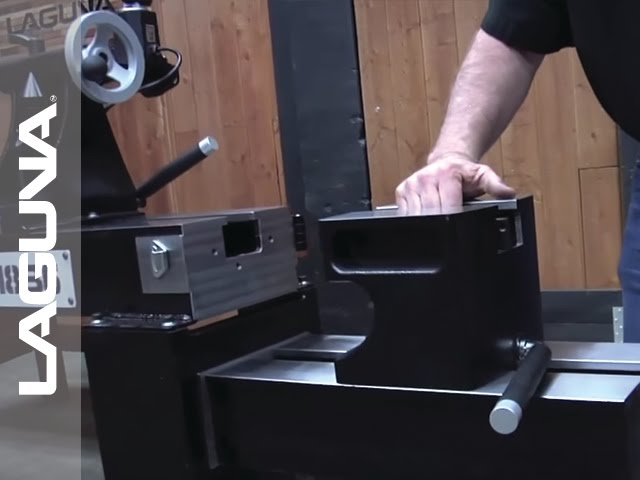

  REVO 1836 Lathe Setup - The 20 Inch Extension Riser Block - Part 10

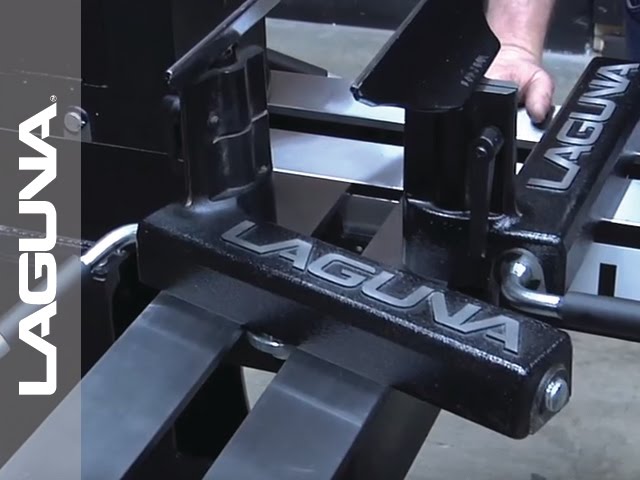

  REVO 1836 Lathe Setup - Dual Leg And Bed Assembly - Part 11

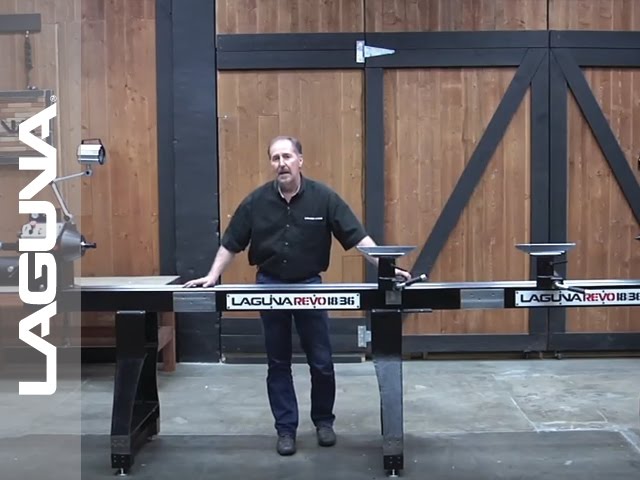

  REVO 1836 Lathe Setup - 20 Inch Extension Front Mounted - Part 12

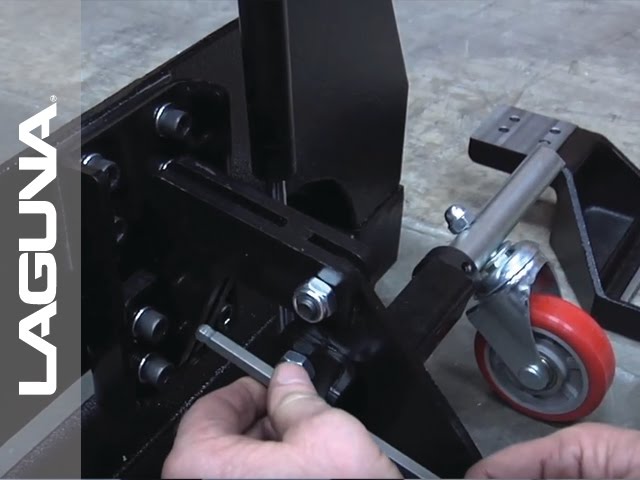

  REVO 1836 Lathe Setup - Deluxe Wheel System - Part 13
