The new Laguna Fusion Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.
Features:
- 1.5HP TEFC Motor
- 110V, Single-Phase, 60Hz Power Requirement
- Fusion Dust Collection System
- Polished Cast Iron Table
- Included Tools & Integrated Tool Storage
- Included 10 x 40T Carbide-Tipped Blade
Additional Details:
F1 Features
- Fusion Hi-Lo Dust Collection
- Fusion Over-Under Trunnions
- Polished Cast Iron Table
- Reset Switch
- Quick-Release Blade Guard and Spreader
- Riving Knife Included
- Push Stick Included
- Miter Gauge Included
- Blade Changing Tool Included
- Integrated Tool Included
- Premium Handles
- Included 10 x 40T Carbide-Tipped Blade
- Premium Arbor and Motor Bearings
- NEMA Plug: 5-15P
Additional Specs:
- Dust Port Size: 4″
- Blade Guard Dust Port Size: 1-½″ in.
- Table Saw Type: Hybrid Cabinet
- Maximum Blade Diameter: 10″
- Arbor Size: â…″
- Arbor Speed: 4000 RPM
- Maximum Width Of Dado: ¾″
- Blade Tilt Direction: Left
- Max Blade Tilt: 45°
- Maximum Depth Of Cut At 90°: 3-⅛″
- Maximum Depth Of Cut At 45°: 2-⅛″
- Max Rip Right Of Blade With Included Fence & Rails: 31″*
* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
Blade, Table & Fence
Blade Information
- Included Blade Information: 10″ x 60T
- Riving Knife/Spreader Thickness: 3/32″
- Required Blade Body Thickness: > ⅛″
- Required Blade Kerf Thickness: < 5/64″
Table Information
- Floor To Table Height: 34-⅜″
- Table Size With Extension Wing Width: 44″
- Table Size With Extension Wings Depth: 27″
- Distance – Front Of Table To Center Of Blade: 13-7/16″
- Distance – Front Of Table To Blade At Maximum Cut: 8-â…″
- Main Table Size Thickness: 1-½″
Fence Information
- Fence Type: Camlock T-Shape With Aluminum Face
- Fence Size Length: 33-7/16″
- Fence Size Width: 9-13/16″
- Fence Size Height: 2-7/16″
- Fence Rail Type: Aluminum Extrusion/Angle Steel
- Fence Rail Length: 59-⅜″
- Fence Rail Width: 2-15/16″
- Fence Rail Height: 1-15/16
Dimensions & Construction
Product Dimensions
- Weight (Net): 195 lbs
- Overall Width (Side-To-Side): 58″
- Overall Depth (Front-To-Back): 37-7/32″
- Overall Height: 20-½″
- Footprint Width: 20-½″
- Footprint Length: 20-21/32″
- Space Required For Full Range Of Movement Width (Side-To-Side): 58-13/16″
- Space Required For Full Range Of Movement Depth (Front-To-Back): 37-7/32
Construction Information
- Table: Precision-Ground Cast Iron
- Wings: Pre-Formed Steel
- Cabinet: Pre-Formed Steel
- Trunnions: Cast Alloy
- Body Assembly: Pre-Formed Steel
- Fence Assembly: Aluminum Extruded Body
- Rails: Steel
- Miter Gauge Construction: Aluminum Body With Steel Bar
- Guard: Steel And Clear Plastic
- Body/Cabinet Paint Type/Finish: Powder Coated
- Arbor Bearings: Sealed & Permanently Lubricated
Uses:
- Precision cutting of wood panels
- Crafting tenons for mortise and tenon joints
- Creating clean rips in hardwood
- Crosscutting lumber to exact dimensions
- Building custom furniture components
- Slicing veneers for cabinetry
- Making miter cuts for picture frames
- Cutting dados for shelf insertion
- Shaping wood for custom moldings
- Trimming parts for flush edges in assembly
Download Manual Instructions PDF

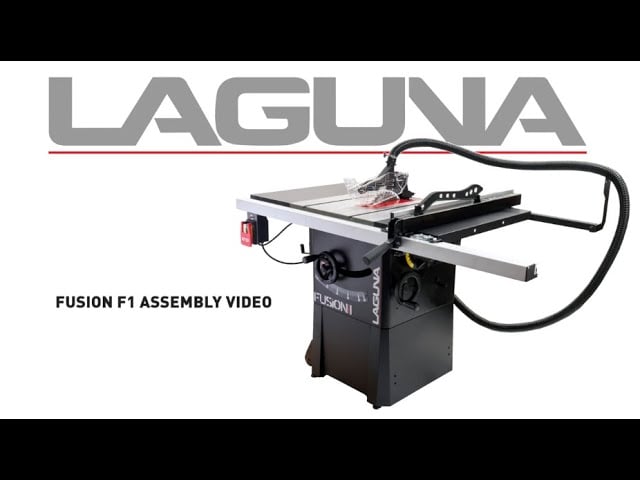

F1 Fusion Tablesaw Assembly Step-By-Step | Laguna Tools
