Laguna MTSF3362203-0130-52 Fusion F3 Tablesaw 52in 220V 3hp

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Laguna's flagship F3 Fusion Table Saw is an industrial-quality cabinet saw with a heavy steel fence body and rails, heavy-gauge steel base, a premium miter gauge and included outfeed and right-side extension tables. It features excellent dust collection above and below the table, and surrounding the blade. Its one-piece cast iron trunnion bolts directly to the cabinet for incredible rigidity and stability, and easier adjustment during assembly. The 14-gauge steel cabinet has an integrated wheel system inside. The high/low Euro-style fence face can be easily pulled back to create a short fence to reduce the risk of binding when crosscutting with the miter gauge. You can also easily flip it to the flat position for cutting veneers and other thin material. Convenience features include a composite throat plate that's easy to remove with the recessed knob, a quick-release lever for the riving knife and splitter, a spring-loaded blade lock lever for quick blade changes, and onboard storage for the included premium miter gauge, riving knife, wrenches, fence and push stick. The premium cast height and tilt wheels feature fold-down handles, and the tilt wheel runs on a 2:1 gear ratio for fast adjustments.

  Features:

  • Superior dust collection, thanks to top and bottom collection and a sealed bottom
  • Included outfeed table with legs, and right-side rip table provide support for large panels
  • Heavy steel fence and rail system is engineered for the most demanding use
  • Includes a premium miter gauge with an adjustable extruded aluminum face
  • Rugged cast iron trunnion is cabinet-mounted for rigidity and ease of table adjustment
  • Buttery smooth, precise arbor adjustments with 2:1 arbor tilt ratio for fast setups
  • High/low aluminum fence face allows use of rip fence with miter gauge and thin materials
  • Permanently lubricated bearings and Acme screws
  • Resin-based phenolic throat plate dampens vibration and chatter
  • Quick-release zero-clearance throatplate with rectangular shape for easier blade changes, better contact with the cast, and better ability to make custom throatplates
  • Quick-release blade guard/riving knife with cam-action tightening mechanism

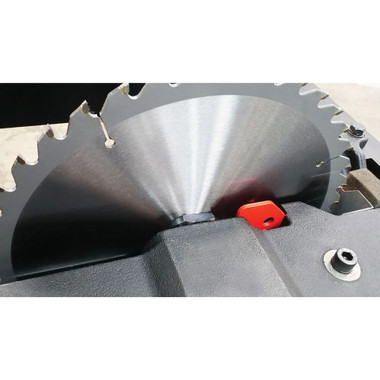

  • Convenient spindle lock for blade changes
  • Blade dust shroud enclosure with dustless cabinet design

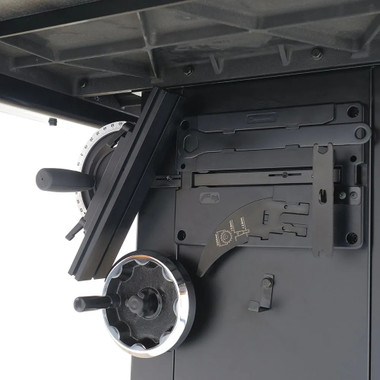

  • Onboard tool storage for all included accessories and fence
  • Mobility kit is built into the cabinet

  What's Included

  • (1) Laguna F3 Fusion Tablesaw
  • (1) 52'' Fence System
  • (1) Blade guard/dust collection guard
  • (1) Miter gauge (premium model)
  • (1) Right-side table extension
  • (1) Outfeed table extension with steel legs
  • (1) 10'' x 60T Carbide-Tipped Blade
  • (1) Arbor wrench

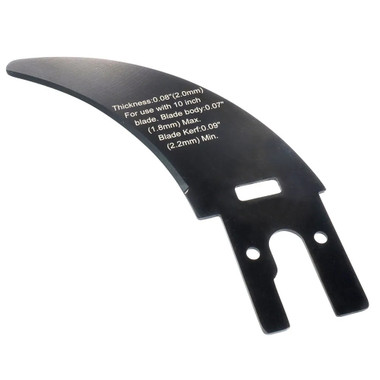

  • (1) Riving knife
  • (1) Standard throat plate
  • (1) Fence mounted push stick

  Specifications

  • Power Requirements: 220V, 1-Phase, 60Hz*
  • Motor Power: 3 HP
  • Motor Speed: 4500 RPM
  • Circuit Breaker Req.: 25A
  • Net Weight: 385 lbs
  • Overall Size: 56-1/8''D x 83''W x 43''H
  • Footprint: 20-1/2'' x 42-1/2''
  • Floor to Table: 34-15/16''H
  • Table Dimensions (with wings): 27''L x 61''W
  • Throat Plate: 14-5/8''L x 4-1/16''W x 1/2'' thick
  • Dust Port Outer Diameter: 3-7/8'' (4'' nominal)
  • Blade Guard Dust Port Size: 1-1/2'' (38.1 mm)
  • Rip Capacity (right of blade): 52''
  • Rip Capacity (left of blade): 19-11/16''
  • Blade Size: 10''
  • Vertical Cut Height: 3-1/8''
  • 45° Cut Height: 2-1/8''
  • Tilt: 0-45° Left
  • Min. Kerf: 3mm ~1/8'' (actual: 0.1875")
  • Max. Kerf (Dado Blade): 3/4''
  • Arbor Speed: 4500 RPM
  • Arbor Diameter: 5/8''
  • Mitre Slot: 3/8'' x 3/4'' (1'' T-slot)
  • CFM Requirement: 400 CFM
  • Table Material: Cast Iron
  • Table Wing Material: Cast Iron
  • Cabinet Material: 14 ga. Sheet Steel
  • Throat Plate Material: Composite
  • Arbor Wheels Material: Iron
  • Fence Material: Aluminum Rail, Steel Body
  • Trunnion Material: Cast Iron

  Uses:

  • Rip cutting large sheets of plywood
  • Crosscutting hardwoods for furniture making
  • Cutting precise miters for frame joints
  • Slicing veneers for inlay work
  • Creating tenons for mortise and tenon joints
  • Trimming doors to fit within frames
  • Cutting dadoes for shelf insertion
  • Making bevel cuts for joinery
  • Sizing parts for cabinetry
  • Crafting jigs and fixtures for repeatable cuts
