PRODUCT DETAILS
Click an item to expand and learn more
-
Perfect for the small shop or woodworking enthusiast, the SuperMax® 19-38 Drum Sander reduces the tedium of hand sanding, speeds up the sanding process, and produces more consistent results! The 19-38 features INTELLISAND™ technology, which prevents surface burns and gouges by automatically controlling the conveyor speed based on load.
- Simple Alignment Feature
- Indexed Alignment Setting
- Easy Height Adjustments
- Extra-Wide Conveyor
- Drum Will Never Go “Out of Alignment”
Additional Details:
- Drum Speed: 1740 RPM
- Max Sanding Width: 38″ (Two Passes)
- Min Sanding Length: 2-¼″
- Max Sanding Thickness: 4″
- Min Sanding Thickness: 1/32″
- Drum: 5″ x 19″ Extended Aluminum
- Dust Hood: 1 x 4″, Vacuum Port (Min 600 CFM Recommended)
- Conveyor Speed: 0 – 10 FPM (Variable)
- Drive Motor: 1-¾″
- Power Requirements: 110V. 15 Amp, 20 Amp Service
- Open Stand Footprint: 21″ x 36″
- Shipping Weight: 286 lbs (3 boxes including stand)
- Shipping Dimensions (L x W x H): 43″ x 16″ x 24″
- NEMA Plug: 5-15P
Features:
We’ve addressed issues common with other drum sanders by adding five features that are exclusive to our 19-38 machines. No other drum sander on the market has these features!
- Simple alignment feature Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy
- Indexed alignment setting Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 19″, the index lever will properly adjust the conveyor for flawless wide sanding
- Easy height adjustments A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments
- Extra-wide conveyor to properly support stock over 19″ wide. The conveyor table is 22″ wide to add support to the work piece
- Drum will never go “out of alignment” The drum carriage is bolted to the base, preventing any movement or alignment issues
Additional Features:
- INTELLISAND™ Technology: Automatically adjusts conveyor speed based on load
- Prevents gouging, damaging or burning stock
- Provides consistent finish even with varying grain pattern and density
- Greatly increases abrasive planing and dimensioning speed
- Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
- Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
- Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
- Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools
- Self-cooling drum prevents overheating and extends abrasive life
- Tension rollers are adjustable in height and hold down pressure, eliminating snipe
- Excellent dust extraction as dust cover is formed to shape of drum Metal, not plastic, is formed to maximize air flow and dust extraction
- Heavy-duty cast iron construction for strength, rigidity and reduced vibration
Sanding Capacity
- Maximum Width (in): 38″ (two passes)
- Minimum Length (in): 5-½″
- Maximum Thickness (in): 4″ (Varies With Application)
- Minimum Thickness (in): 1/32″
Machine Specs
- Dimensions (H x W x D): 24″ x 40″ x 24″
- Brush Speed: AC Inverter, infinitely variable, 200-1000 RPM
- Drum Speed: 1740 RPM
- Dust Hood: 1 – 4″ Vacuum port, min. 600 CFM Recommended
- Conveyor Motor: 43lbs torque, direct drive D.C. motor, ranged variable 0-10 FPM
- Drive Motor (TEFC): 1-¾
- Power Requirements: 110V 15 Amp
- Net Weight: 264 lbs
- Shipping Weight: 371 lbs
Uses:
- Smoothing rough wood surfaces
- Evening out glued-up panels
- Removing paint or varnish from wood
- Sanding curved or contoured edges
- Preparing wood surfaces for finishing
- Thicknessing thin workpieces
- Creating a uniform finish on mixed-grain wood panels
- Sanding down inlays or veneers
- Refinishing old furniture
- Leveling glued-up joints
Read More
-
-
-
Download Manual Instructions PDF

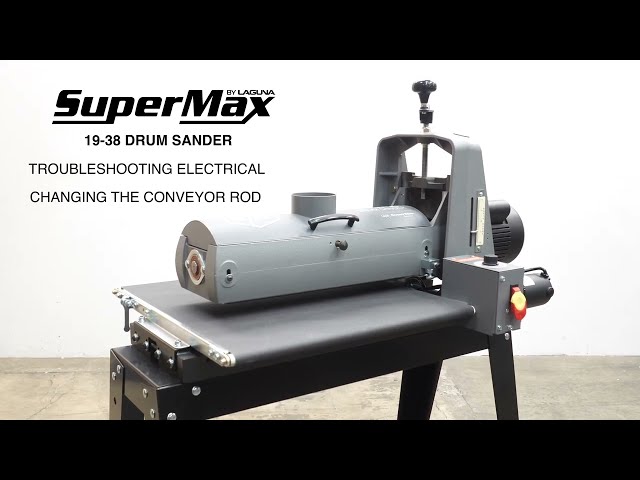

19-38 Drum Sander: Troubleshooting Electrical and Conveyor Rod Replacement Guide
Upcycling Furniture with LAGUNA Machines | Using a LAGUNA Tablesaw and SuperMax 19-38 Drum Sander

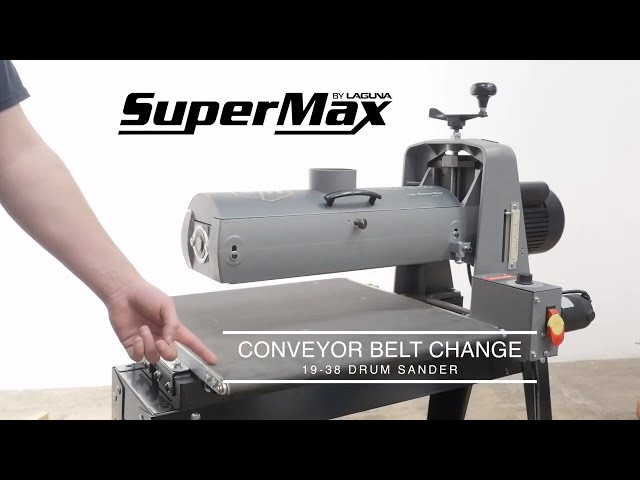

How To Change the 19|38 Drum Sander Conveyor Belt | Laguna Tools
