Laguna SUPMX-913002 25x2 Double Drum Sander with 5HP Motor and Variable Speed Conveyor

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Sand two grits in a single pass with a 25×2 Double Drum Sander. Featuring INTELLISAND® Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.

  The 25×2 Double Drum Sander features INTELLISAND® Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor.

  • Sanding Capacity:
    • Maximum Width (in): 25″
    • Minimum Length (in): 3-½″
    • Maximum Thickness (in): 6″
    • Minimum Thickness (in): 1/32″
    • Dimensions (H x W x D): 43″ x 46″ x 31″
  • Drum (Extruded Aluminum): 5″ x 25″
  • Drum Speed: 1740 RPM
  • Dust Hood (Steel Hood, Hinged At Back): (2) 4″ Vacuum Ports, Min CFM: 1000 Recommended
  • Ball Bearing (1″): 4 sealed and permanently lubricated
  • Conveyor Motor: 100 in. -lb. torque, direct drive D.C. motor, ranged variable, 0-15 FPM
  • Drive Motor (TEFC): 5 HP, 1 Phase
  • Power Requirements: 208-230V, 60Hz; 1 Phase, 30 Amp Service; 3 Phase 20 Amp Service
  • Shipping Weight: 475 lbs
  • Shipping Dimensions (L x W x H): 50″ x 44-½″ x 44-½″
  • Casters Included: No
  • Cord & Plug Included: No

  Features

  • INTELLISAND® Technology: Automatically adjusts conveyor speed based on load
    • Prevents gouging, damaging or burning stock
    • Provides consistent finish even with varying grain pattern and density
    • Greatly increases abrasive planing and dimensioning
  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010 across the width of the sander.
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter and thinner.
  • Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loosening, and overlapping.
  • Self-cooling drum prevents overheating and extends abrasive life.
  • Type: Double Drum Sander
  • Maximum Sanding Width:: 25"
  • Minimum Sanding Length:: 3-1/2"
  • Maximum Speed (CFM): 680 CFM
  • Maximum Sanding Thickness:: 6"
  • Minimum Sanding Thickness: 1/32"
  • Dimension (D x W x H): 43" x 46" x 31"
  • Drum: 5 x 25" Extruded Aluminum
  • Speed (RPM): 1740 RPM
  • Dust Hood: One (2) 4" Vacuum Port, Min. 1000 CFM Recommended
  • Conveyor Motor: 25" & 37" Models: 100 in. -lb. Torque, Direct Drive D.C Motor, Ranged Variable, 0-15 FPM
  • Ball Bearing: 1"
  • Drive Motor: 5 HP
  • Power Requirements: 208-230 V, 60 HZ; 1 Ph, 30 Amp Service; 3 Ph 20 Amp Service

  Uses:

  • Smoothing rough lumber surfaces
  • Evening out glued panels
  • Preparing wood for finishing
  • Removing paint or varnish from wood surfaces
  • Sanding down tabletops for a smooth finish
  • Leveling wood thickness across multiple boards
  • Refinishing old furniture
  • Sanding down doors for a perfect fit
  • Creating uniformly flat surfaces for joinery
  • Smoothing layers between coats of stain or sealant

  Read More

• Reviews
• Questions and Answers
• Videos

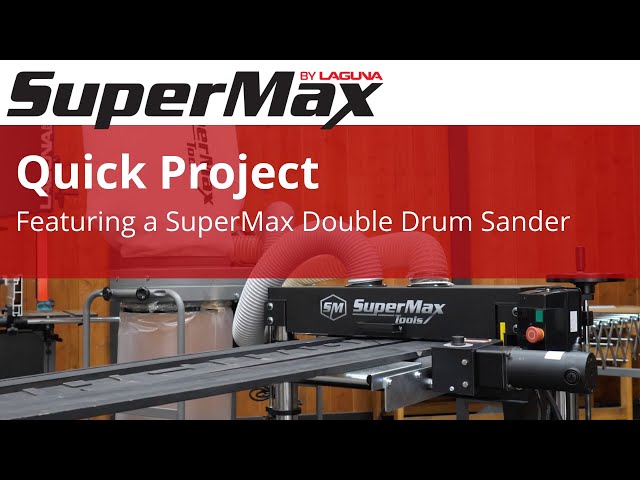

  A Quick Project Featuring the SuperMax Double Drum Sander | Laguna Tools

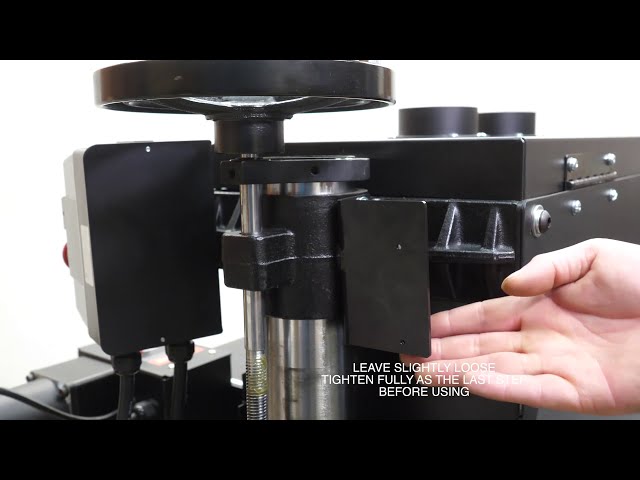

  Supermax DRO Install Dual Head Sander Locked
