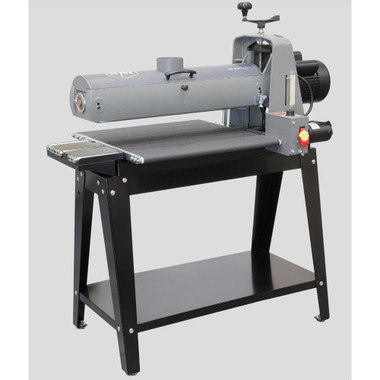

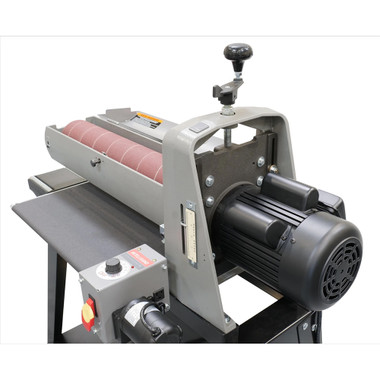

Laguna SUPMX-72550-OP 25-50 Drum Sander with Open Stand, 5 HP, Variable Speed Conveyor

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  The SuperMax® 25-50 Drum Sander is the largest open-ended drum sander on the market. Sand 25″ in a single pass, and up to 50″ in a double pass. Expand the scope of projects you’re able to complete, while increasing speed and consistency in which you’re able to do them!

  The drum is pre-wrapped with 80 grit sandpaper. Additional accessories and sandpaper are available for purchase.

  Features:

  • 25″ Sanding In A Single Pass, 50″ In A Double Pass
  • More Room For Easy Access To Abrasives – No Special Tool Needed
  • New Mobile Base Helps Stand And Machine To Move With Ease

  Additional Details:

  • Maximum Sanding Width: 50″ (Two Passes)
  • Minimum Sanding Length: 2-¼″
  • Maximum Sanding Thickness: 4″
  • Minimum Sanding Thickness: 1/32″
  • Dimensions (D x W x H): 27″ x 46″ x 53″ (On Stand)
  • Drum: 5″ x 25″ Extruded Aluminum
  • Drum Speed: 1740 RPM
  • Drum Speed: 1740 RPM
  • Dust Hood: 1 – 4″ Vacuum Port, Min. 600 CFM Recommended

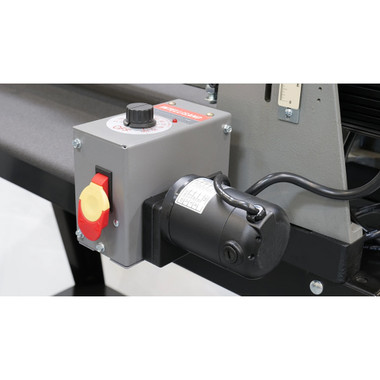

  • Conveyor Motor: 43 in.-lb torque, direct drive D.C. motor, ranged variable 0-10 FPM

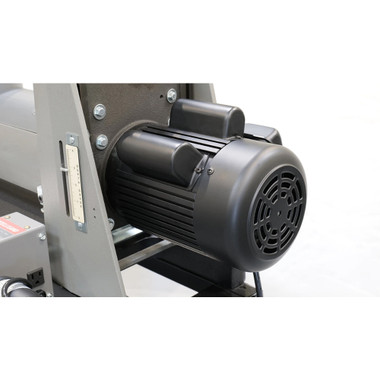

  • Drive Motor (TEFC): 1-¾ HP
  • Power Requirements: 110 V 20 amp
  • Table Height (Floor To Top Of Table): 33″
  • Shipping Weight (lbs): 369 (3 boxes including stand)
  • Shipping Dimensions (L x W x H): 45″ x 16″ x 24″
  • NEMA Plug: 5-15P

  Features:

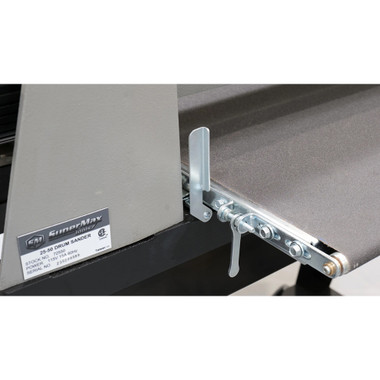

  • Simple Alignment Feature – Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy
  • Indexed Alignment Setting – Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 25″, the index lever will properly adjust the conveyor for flawless wide sanding

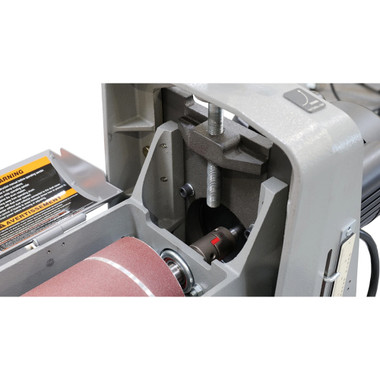

  • Drum Will Never Go “Out Of Alignment” – The drum carriage is bolted to the base, preventing any movement or alignment issues

  Additional Features:

  • INTELLISAND® Technology: Automatically adjusts conveyor speed based on load
    • Prevents gouging, damaging or burning stock
    • Provides consistent finish even with varying grain pattern and density
    • Greatly increases abrasive planing and dimensioning speed
  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
  • Patented abrasive attachment system effectively tensions the abrasive wraps, preventing loose abrasive and overlap
  • Easiest Access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools
  • Self-cooling drum prevents overheating and extends abrasive life
  • Tension rollers are adjustable in height and hold down pressure, eliminating snipe
  • Excellent dust extraction as dust cover is formed to shape of drum
  • Metal, not plastic, is formed to maximize air flow and dust extraction
  • Heavy-duty cast iron construction for strength, rigidity and reduced vibration
  • Mobile base allows for stand and machine to be to moved easily

  Uses:

  • Sanding large wood panels for a smooth finish
  • Evening out rough lumber surfaces
  • Preparing wood surfaces for staining or painting
  • Removing old finish or paint from reclaimed wood
  • Smoothing glued-up joints and panels
  • Creating a uniform thickness across multiple wood pieces
  • Sanding down tabletops for refinishing
  • Leveling wood slabs for furniture making
  • Smoothing out veneers before applying to furniture
  • Refining the edges of doors and large cabinet faces

  Read More

• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF

  Download Brochure PDF

  Download Parts Manual PDF

• FAQ

  What is the difference between your drum sanders and other brands?

  Intellisand® automatically adjust feed speed to help prevent burning of stock. They also increase abrasive life and prevent damaging sander if “over fed”, set too deep or stock is thicker in middle or end

  All SuperMax® sander have infinitely adjustable conveyor feed rates for precise settings

  All SuperMax® sanders use a self-cooling drum which effectively dissipates heat from sanding, thus extending abrasive life, reducing the chance of burning and prevents over-heating and warping of the drum

  All SuperMax® drum sanders are precision engineered for long life

  All SuperMax® sanders use a computer balanced drum(s) and drive train components to prevent ripple on the surface of stock being processed and to extend life of bearings and other parts

  All SuperMax® drum sanders use an exclusive abrasive conveyor belt which offers the best grip and no-give grip to stock being sanded

  All SuperMax® drum sanders use a patented self-tightening abrasive attachment system, making the common task of changing abrasives fast, simple and tool free

• Videos

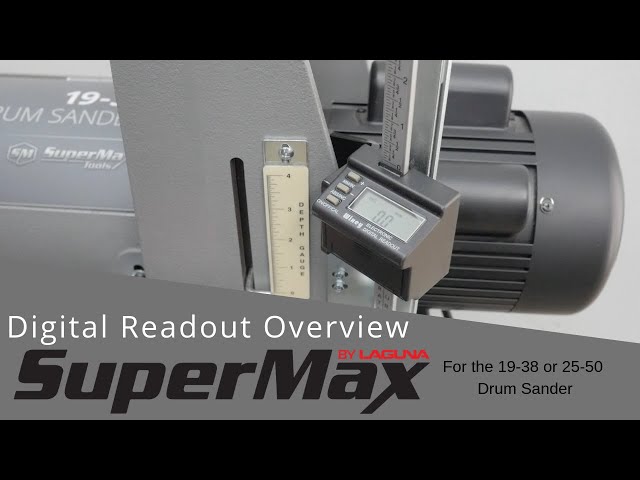

  Digital Read Out for the 19-38 or 25-50 Drum Sander | Laguna Tools
