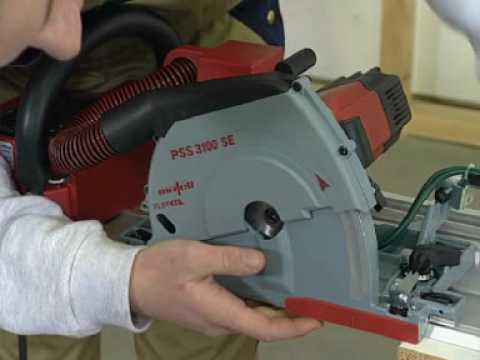

Mafell 916223 Portable Panel Saw Pss 3100 Se, 120 V

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  The PSS 3100 SE is the world's first self driven, rail-guided and mobile panel saw. Unique design features ensure that hardly any dust escapes during operation. In conjunction with the integrated suction channel and a vacuum system, it eliminates practically all of the dust particles that occur. With Mafell's newly developed diamond saw blade, the PSS 3100 SE is well equipped for use with mineral containing materials including cement fiber panels (such as EQUITONE). Full-wave electronics, with speed adjustment and smooth starting, improve safety and allow the speed to be adjusted for various materials, including plastics. The electronics also ensure constant speed under load and protect the machine against overloading.



  Specifications

  • Cutting depth: 0 to 1-3/4"
  • Cutting length: 10.2 ft
  • Feed rate speed: 0.2 to 1.1 ft/s
  • Tilt range: n/a
  • Saw blade diameter: 6-1/4"
  • Nominal speed - no load: 2,600 to 5,200 rpm
  • Motor: 120 V / 60 Hz
  • Current: 13 A
  • Weight with track: 37 lbs

  Standard Equipment

  • 24T Cross-Cutting Carbide Blade
  • Allen Key
  • 13.1 ft Cord

  Accessories

  • First-time diamond blade users will need to order the version with the wider riving knife

  Please note the 5.2 ft and 8.5 ft guide tracks do not extend the standard 10.2 ft track longer, they actually replace this track making the overall system shorter (such as for working in small rooms)

  Uses:

  • Cutting intricate shapes and curves in wood
  • Making internal cutouts in wood panels
  • Creating dovetail joints
  • Trimming wood edges for a clean finish
  • Cutting through plywood, MDF, and other engineered woods
  • Making bevel cuts for joining wood at angles
  • Cutting slots for wood inlays
  • Shaping decorative patterns in woodwork
  • Cutting openings for vents or electrical outlets in cabinetry
  • Trimming excess material from glued-up wood joints
• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF
