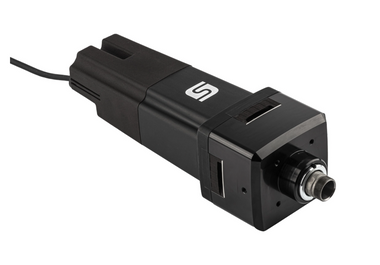

MM-1650DI Spindle

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  DESCRIPTION

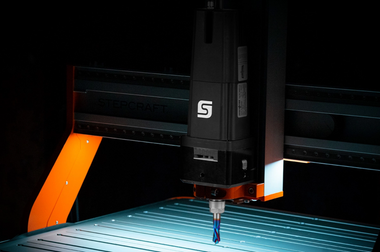

  If you are looking for the most powerful spindle you can get for a desktop/benchtop CNC, you have found it.  The MM-1650 DI spindle is Made In Germany to the highest standards.  The MM-1650 DI is a precision milling spindle that uses precise components, giving you maximum concentricity for even the most demanding precision work.  It has the capability of supporting up to 1/2" shank tooling with a maximum output of 2.2 horsepower. Additionally, the MM-1650 DI has a variable speed setting that can be controlled manually or via the gantry interface. The labyrinth seal protects the spindle and bearings against dust and debris. With a sound level of only 81 dB (A), the milling motor operates extremely silently.

  Should you use a third-party CNC machine, please see the technical drawing in the product images to easily check whether the MM-1650 DI is suitable for your tool holder.

  Technical Details:

  • Input voltage (AC): 110 V
  • Rotary speed: Rotary speed: 10.000 - 23.000 rpm
  • Power: 1650 W
  • Extremely silent: 81 dB (A)
  • Digital electronics with constant speed under load, soft start-up, idle speed reduction, and overload protection
  • Concentricity (cone):≤ 0,02 mm
  • Concentricity (end mill): ≤ 0,07 mm (25 mm distance to cone);
  • Labyrinth seal to protect spindle bearing against foreign particles
  • < />External gantry interface
  • For wood, metal, plastics, foam, polystyrene, stone
  • Weight: 3,16 kg

  Scope of Delivery:

  • 1x milling motor MM-1650 DI
  • 1x collet OZ12A .25"
  • 1x clamping nut
  • 1x spanner wrench
  • 1x sensor cable 4 m incl. PWM converter
  • 1x Mounting Kit MM-1650 for M.Series
