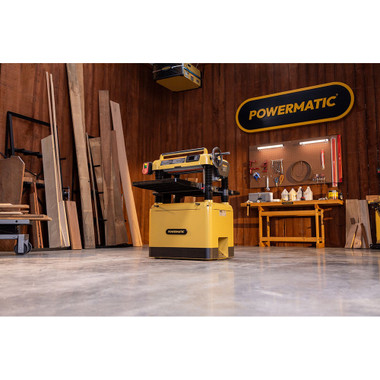

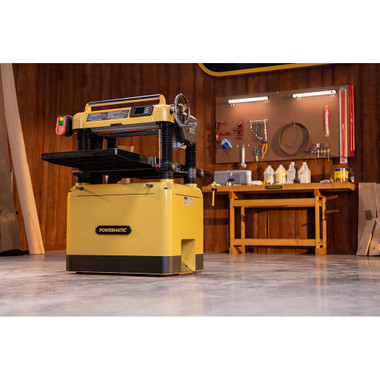

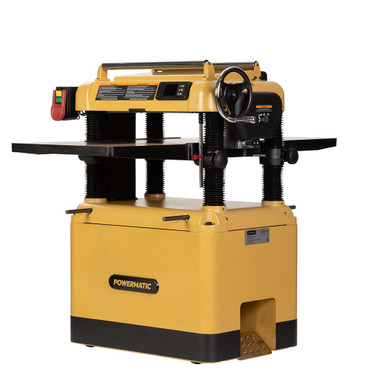

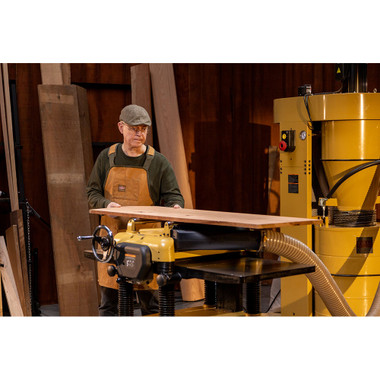

Powermatic 209BHH-4 20" Helical Head Thickness Planer – Built for High-Volume Precision

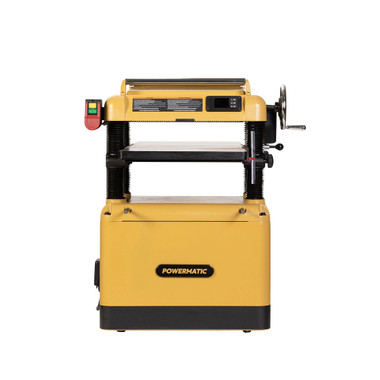

The Powermatic 209BHH-4 is a production-grade 20-inch stationary thickness planer engineered for commercial woodworking shops operating on three-phase power. Driven by a powerful 5 HP motor prewired for 460V, this machine delivers the performance and reliability required for continuous, high-output planing applications. Its generous 20-inch cutting capacity and 8-inch maximum stock thickness make it ideal for processing wide panels, hardwood slabs, and large production runs with ease.

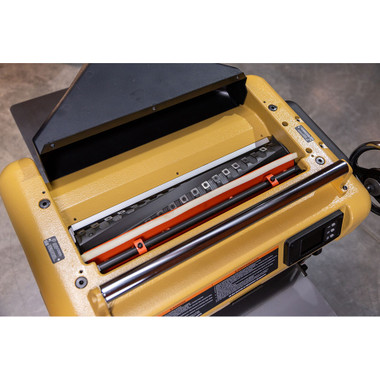

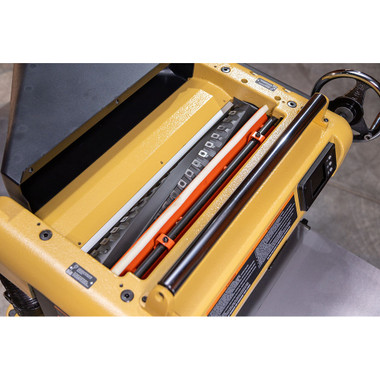

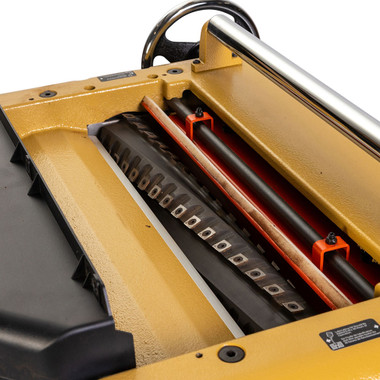

At the heart of the machine is a four-row helical cutterhead equipped with 68 four-sided carbide inserts rotating at 5,200 RPM. This advanced cutterhead design produces an exceptionally smooth finish while reducing tearout, noise, and maintenance requirements. Individual inserts can be quickly rotated or replaced, minimizing downtime and keeping production moving efficiently.

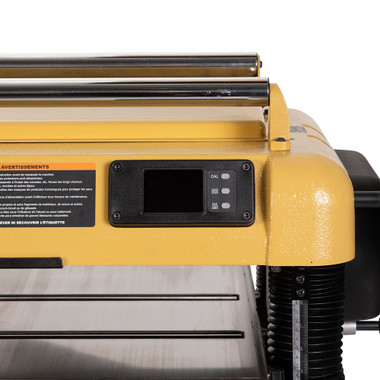

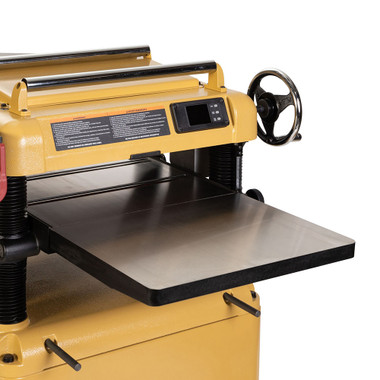

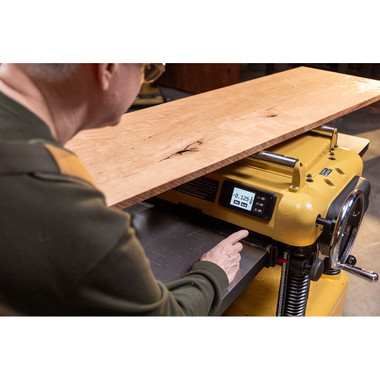

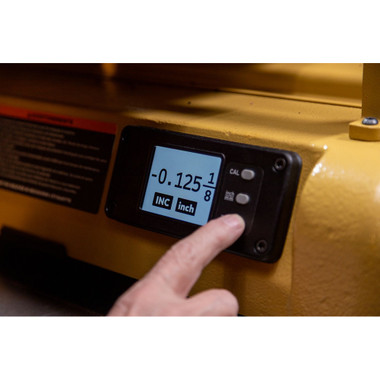

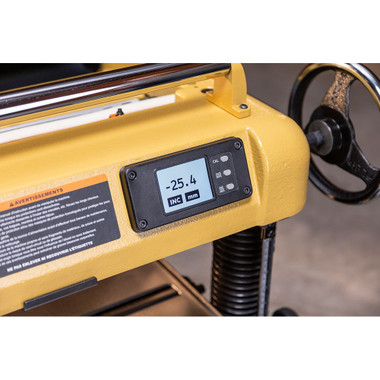

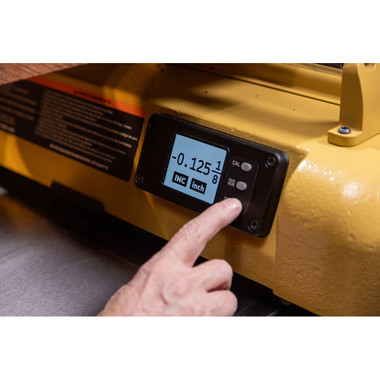

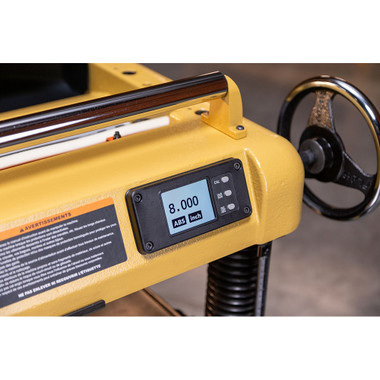

An integrated digital readout (DRO) provides precise thickness measurements in real time, allowing operators to achieve accurate, repeatable results across multiple passes and production shifts. Dual feed speeds of 16 FPM and 28 FPM give users the flexibility to prioritize either superior surface finish or maximum material throughput depending on the application.

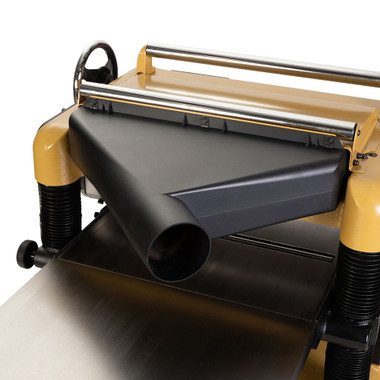

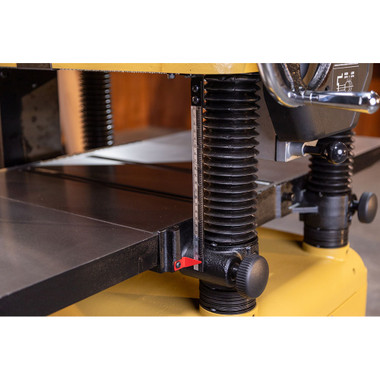

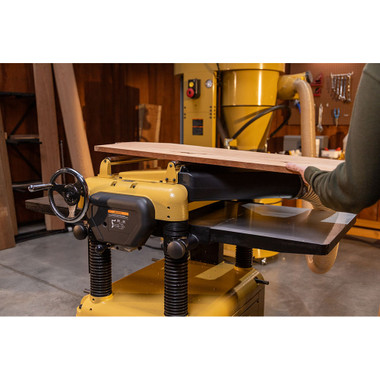

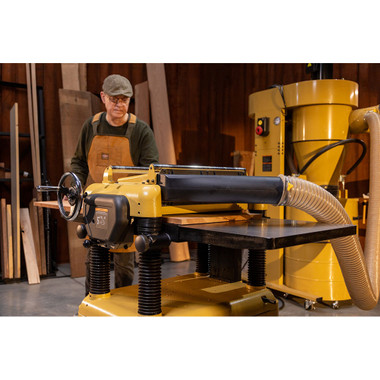

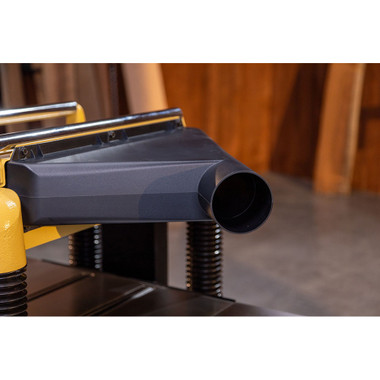

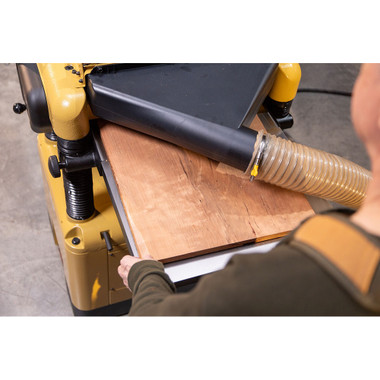

Heavy-duty cast iron infeed and outfeed tables provide a combined 51-1/2-inch support surface that resists flexing and dampens vibration for improved accuracy and consistency. A 4-inch bi-directional dust port allows flexible dust collection setup while maintaining effective chip evacuation with a minimum 900 CFM system.

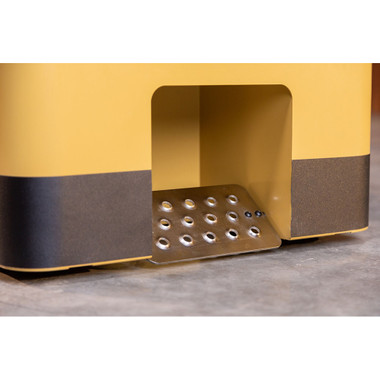

Designed with both productivity and safety in mind, the planer features an oversized emergency stop button for rapid access and an upgraded caster locking and braking system that allows convenient repositioning while ensuring secure operation during use. Backed by Powermatic's Gold Glove Service and a 5-year warranty, the 209BHH-4 is built to deliver dependable performance in demanding production environments.
Features
- DRO and dual feed speeds deliver precision thickness control while maintaining production-level throughput.
- Four-row helical cutterhead with 68 carbide inserts produces smooth finishes with reduced tearout and noise.
- Individual four-sided carbide inserts rotate or replace quickly for low-maintenance operation.
- Selectable 16 FPM and 28 FPM feed rates allow optimization for finish quality or stock removal.
- Heavy-duty cast iron tables provide rigidity, flatness, and vibration damping for consistent results.
- 20-inch planing width accommodates wide panels and large workpieces.
- 8-inch maximum stock thickness capacity handles heavy material with ease.
- Digital readout displays exact board thickness for repeatable setups.

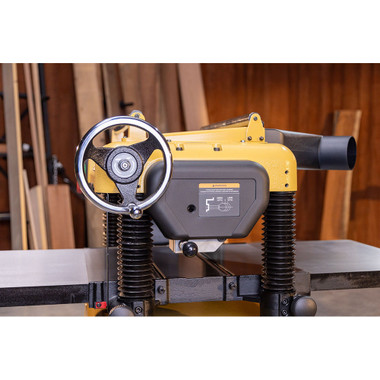

- 4-inch bi-directional dust port supports flexible shop layouts and efficient chip collection.

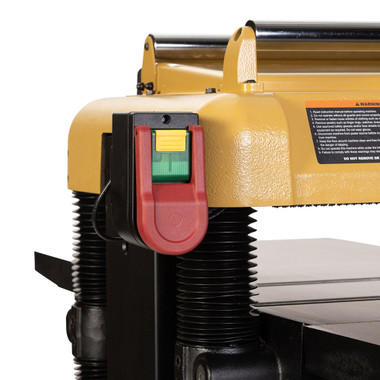

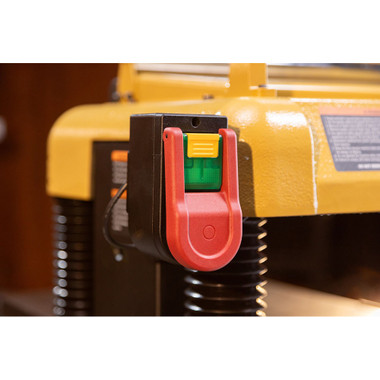

- Oversized emergency stop button improves operator safety and accessibility.

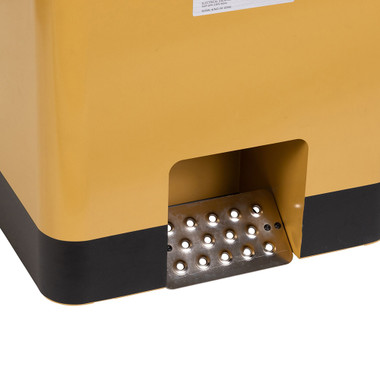

- Upgraded caster locking and braking system offers mobility with secure positioning.
- Powered by a 5 HP three-phase motor prewired for 460V industrial power.
Specifications
- Model Number: 209BHH-4
- SKU: PM1-480
- Motor: 5 HP, Three Phase
- Input Power: 460V Three Phase
- Motor Amps: 20A
- Recommended Circuit Size: 40A
- Cutterhead Type: Helical Head
- Cutterhead Diameter: 3-1/4 in.
- Cutterhead Speed: 5,200 RPM
- Number of Inserts: 68
- Insert Size: 0.59 in. x 0.59 in. x 0.10 in.
- Maximum Planing Width: 20 in.
- Maximum Board Thickness: 8 in.
- Maximum Full-Width Depth of Cut: 3/32 in.
- Feed Rates: 16 FPM / 28 FPM
- Number of Speeds: 2
- Digital Readout: Yes
- Table Material: Cast Iron
- Table Size: 51.5 in. x 33.5 in.

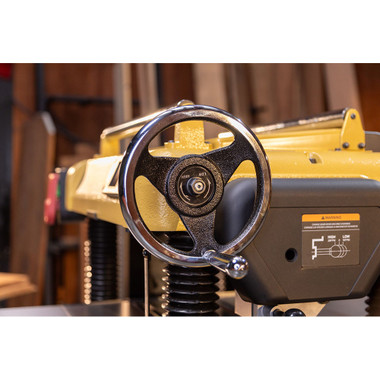

- Table Adjustment: Manual
- Dust Port Diameter: 4 in.
- Required Airflow: 900 CFM Minimum
- Net Weight: 606 lbs.
- Gross Weight: 704 lbs.
- UPC: 019907006886
- Warranty: 5 Year
- Prop 65 Warning: Cancer and Reproductive Harm
Ideal Uses
- Production woodworking shops processing large volumes of lumber and panels.
- Dimensioning rough-sawn hardwood and softwood stock to precise thicknesses.
- Planing wide boards, tabletops, cabinet panels, and furniture components up to 20 inches wide.
- Cabinetmaking operations requiring consistent thickness and superior surface finishes.
- Furniture manufacturing where reduced tearout and minimal sanding are priorities.
- Millwork and architectural woodworking projects demanding repeatable accuracy.
- Commercial workshops equipped with 460V three-phase electrical service.
- Finishing passes on premium hardwoods where surface quality is critical.
- High-throughput stock removal and thicknessing for production schedules.
- Professional shops seeking reduced cutterhead maintenance and long insert life.
-
-
