Trend Digital Depth Gauge with 2 23/64 inch Jaw Opening for Precision Rebate and Groove Setting, GAUGE/D60

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Achieve precision in your woodworking projects with the Trend Digital Depth Gauge, designed for accuracy and ease of use. Featuring a wide aperture of 2 23/64 inches, this gauge can accommodate various router base openings and fence cheeks, making it versatile for different tasks. With an impressive accuracy of 0.003 inches and readouts in 0.002-inch increments, you can set rebates and grooves on router tables with meticulous precision. The magnetic feet allow for hands-free adjustments by securely attaching to metal surfaces, while the locking option ensures that your measurements are easily transferable. Additionally, the clever pointer can be clipped to the ruler for checking holes, mortices, or slots up to 2 inches deep. With a maximum measuring range of 3 5/32 inches, this depth gauge is an essential tool for achieving flawless results in your woodworking endeavors.

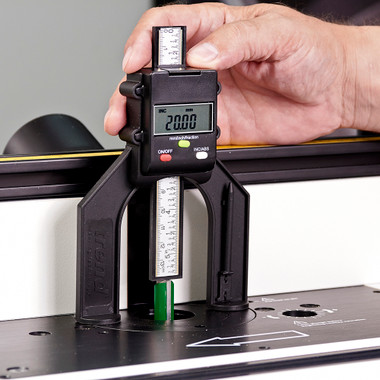

  Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.

  • For hand routers, router tables and saw benches.
  • LCD readout for mm, imperial and fractions with auto shut off 5 mins.
  • Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 2 inch.
  • Self standing with magnetic feet and flat back.
  • Injection plastic moulding with plastic rule.
  • Read-out has relative co-ordinate and absolute function.
  • 2-3/8 inch wide aperture.
  • Professional use only.

  Specifications

  • Measuring range: 80 mm (3 1/8 inch)
  • Opening width: 60 mm (2 3/8 inch)
  • Resolution: 0.05 mm (0.002 inch)
  • Accuracy: +/- 0.1 mm (0.004 inch)
  • Repeatability: +/- 0.1 mm (0.004 inch)
  • Max measuring speed: 1.5 m/s (60 in/s)
  • Weight: 92g
  • ABS mode (Absolute): Measuring single amounts from Zero
  • INC mode (Relative): Measuring from last point

  Uses

  • Precision setting for rebates and grooves
  • woodworking
  • router table adjustments
  • measuring mortices and slots
  • accurate depth measurement
  • metal surface attachment
  • hands-free operation
  • transferring measurements securely
