Woodpeckers BigCal 12 in and 24 in Deluxe Set - With Center and T-Head Attachements

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  When you're looking for piston-fit accuracy, you need a tool that gives you precise inside and outside dimensions. Woodpeckers new BigCal Woodworking Calipers do just that and more. Calipers are often used in metalworking, but most standard calipers max out at just 6" and are graduated to the thousandth of an inch. BigCal combines machinist-level accuracy and furniture-sized scale in a caliper designed for woodworking.

  Precision… Inside AND Out

  BigCal's jaws align perfectly between the inside and outside references. Now, you can transfer critical dimensions with an exact physical reference. To secure the jaws, we engineered a dual-function nut that applies a rock-solid grip and squares the jaw to the blade. That means no slip and no wiggle when transferring critical dimensions. We lock the fixed jaw precisely at zero so you can slide the adjustable jaw out of the way and use BigCal as a T-square. And, we mill the tips of the outside jaws exactly 1/8" square, allowing you to register even the smallest slots or grooves.

  No more complicated dials or confusing fractions. We engraved the scales in both 1/32" and 1mm graduations. Turn BigCal over and you'll find the scales read from the opposite end. You can use this side to gauge the depth of a mortise or groove. We made it easy to transfer that dimension using the scribing notch on the end of the blade.

  Precision-milled from high-quality stainless steel, BigCal's blade is rigid even with the jaws fully extended. We mill the jaws from solid blocks of aircraft-grade aluminum. Then, we finish the jaws in our signature Woodpeckers "Red" which will keep your calipers looking flawless for decades.

  We make BigCal in two sizes. The large caliper lets you measure inside or outside dimensions over 24" (or 610mm). That's 18 inches more than most standard calipers. On the smaller BigCal, you'll get over 12" between the jaws. The jaws on both are 2-1/4" deep for outside measurements and 3/4" for inside measurements. Each BigCal includes a wall-mountable Rack-It so your new tool will always be perched and ready to go to work.

  Our specially-designed add-on accessories draw features from the machinists making our top-quality tools. The T-Head attachment slides on the end of the rule and gives you a 5” wide head for gauging depth or transferring dimensions. The Center attachments clamp to BigCal’s jaws and the conical self-centering design allows you to take precise measurements of hole centers. Now, you can transfer critical center-to-center dimensions using a pair of dividers or the outside jaws.

  Like all Woodpeckers products, each BigCal Woodworking Caliper is precisely machined and carefully inspected in Strongsville, Ohio, facility (just south of Cleveland).

  Uses:

  • Measuring and marking precise dimensions on wood
  • Checking the flatness or straightness of surfaces
  • Drawing long, straight lines for cuts or joins
  • Measuring and setting angles for miter cuts
  • Finding the center point on boards for drilling or cutting
  • Transferring measurements from one piece of wood to another
  • Creating large diameter circles or arcs
  • Establishing and marking out mortises and tenons
  • Aligning and squaring project components during assembly
  • Extending layout lines around corners or along edges

  Read More

• Reviews
• Questions and Answers
• Videos

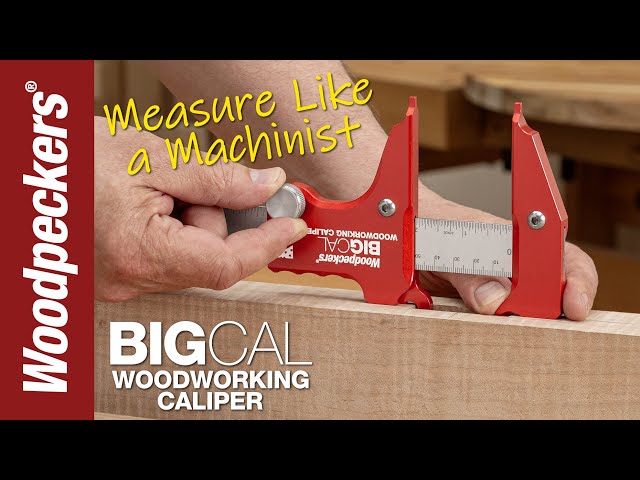

  BigCal Woodworking Calipers | Woodpeckers Tools

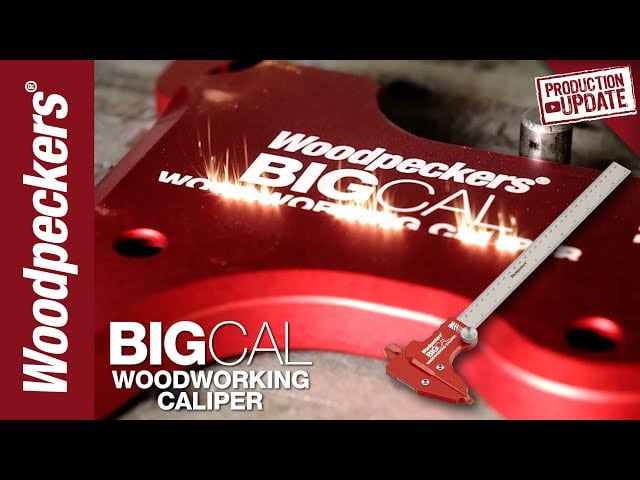

  BigCal Production Update | Woodpeckers Tools

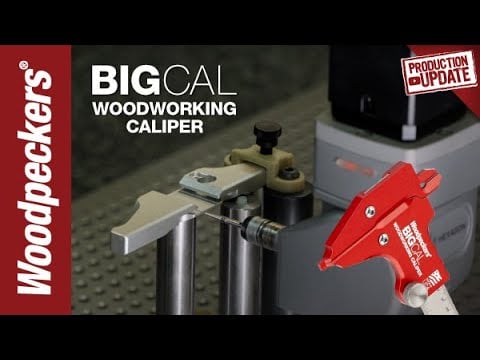

  Production Update: BigCal Woodworking Calipers & Attachments
