xTool P2 Conveyor Rail (25.5 Inch)

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Larger Area,
  Amazing Effects

  The maximum processing area is supersized up to 118''×19.6'', giving you the option to
  engrave anything up to 118 inches long in size effortlessly, and set more quantity at one time.





  Automatic Conveying,
  Farewell Accuracy Deviation

  Automatic engraving path planning and material conveying;
  Farewell to manual material feeding and accuracy deviation.

  Automatic Engraving



  Automatic Cutting



  Creations Unrestrained
  by Materials

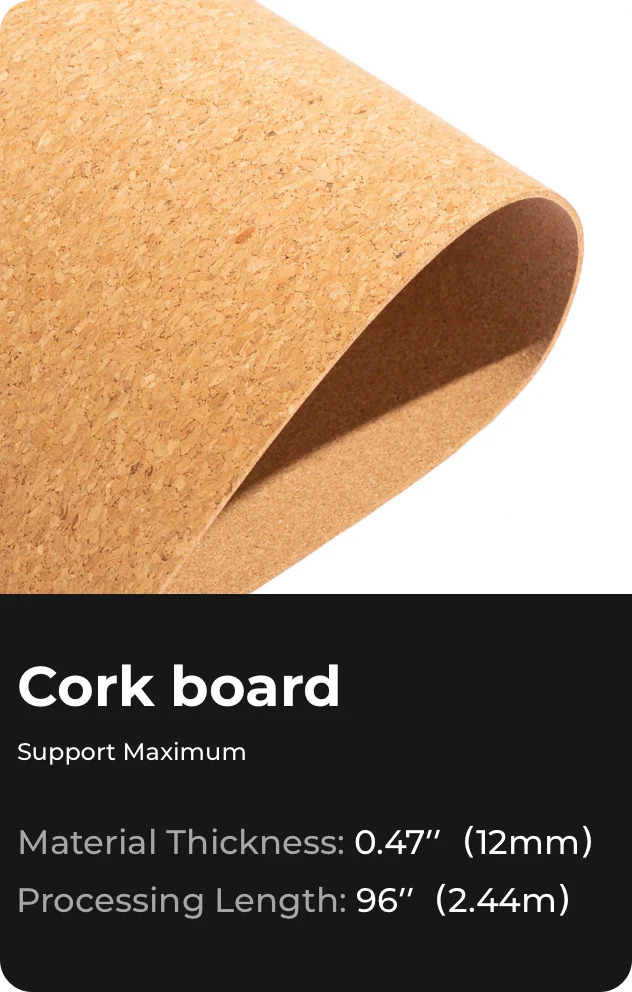

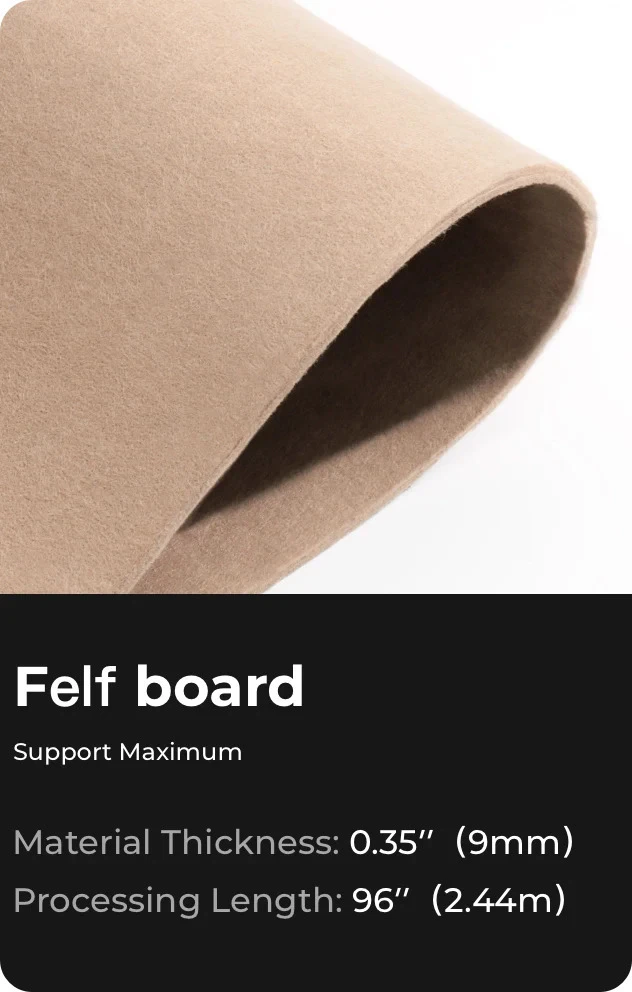

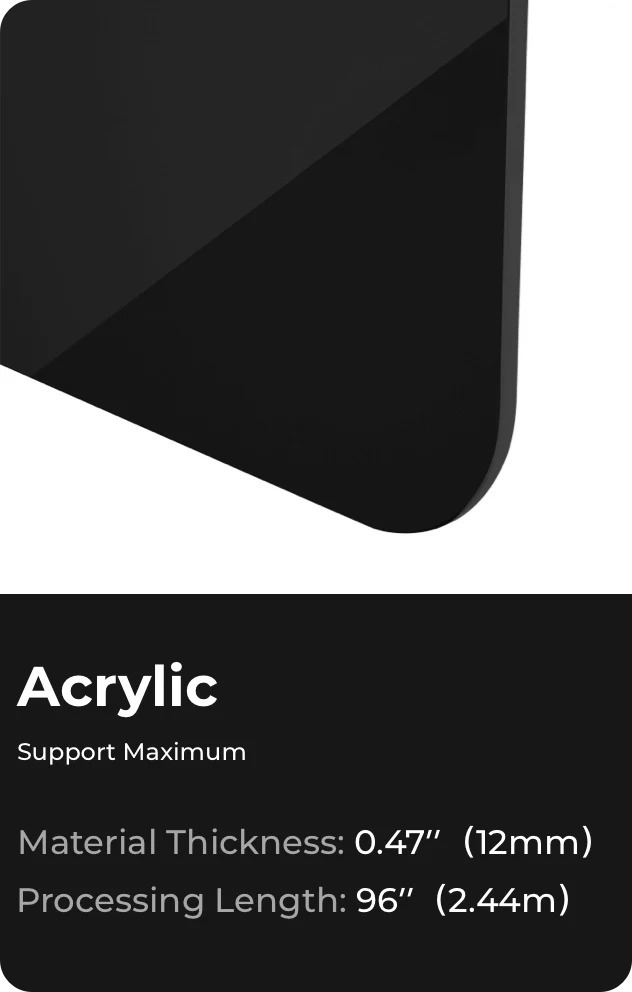

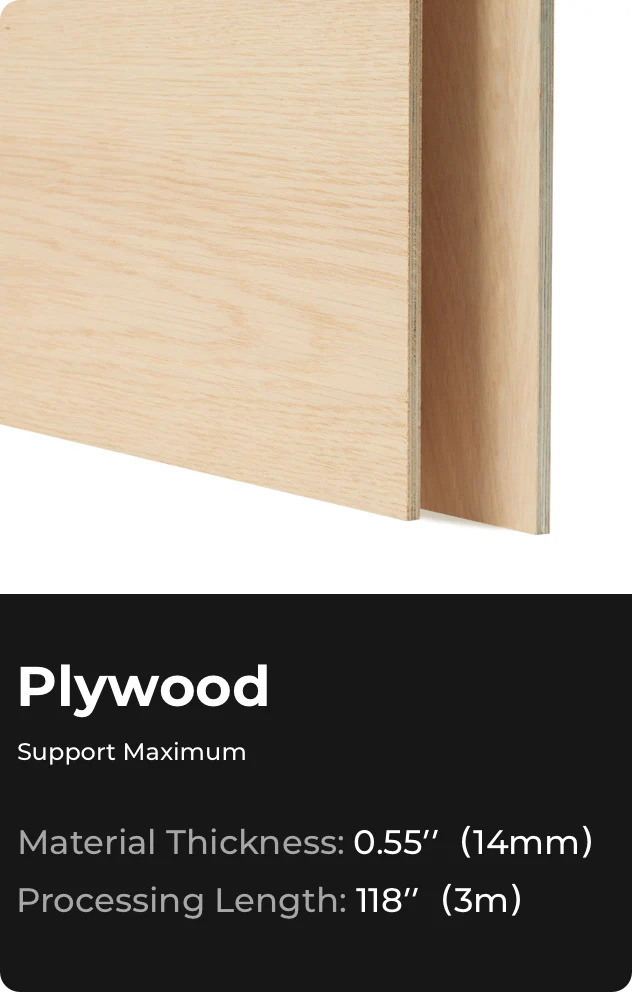

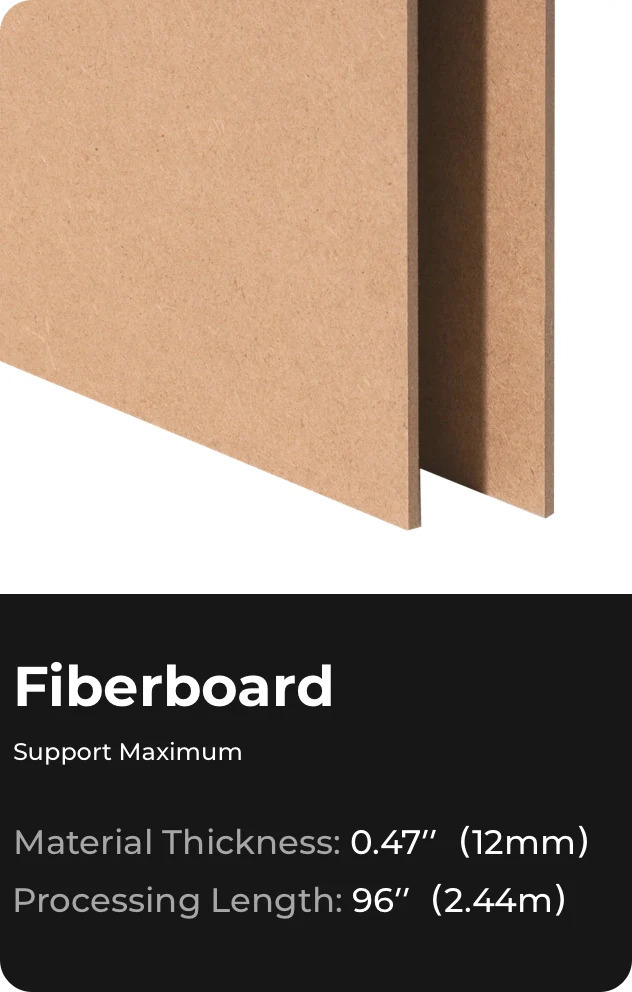

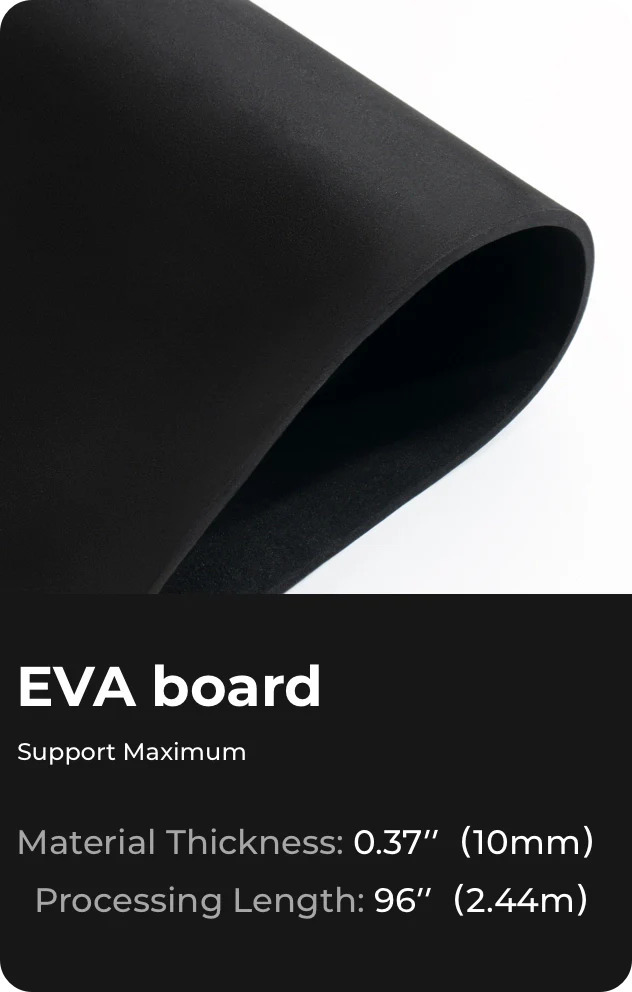

  The material range is expanded from plywood, acrylic and fiberboard to soft materials like felt, cork and EVA



  Hard board

  •

  •

  •


  Soft and thick board

  •

  •

  •


  *Note: During processing, there may be a deviation of less than 2mm per 1000mm of conveying.

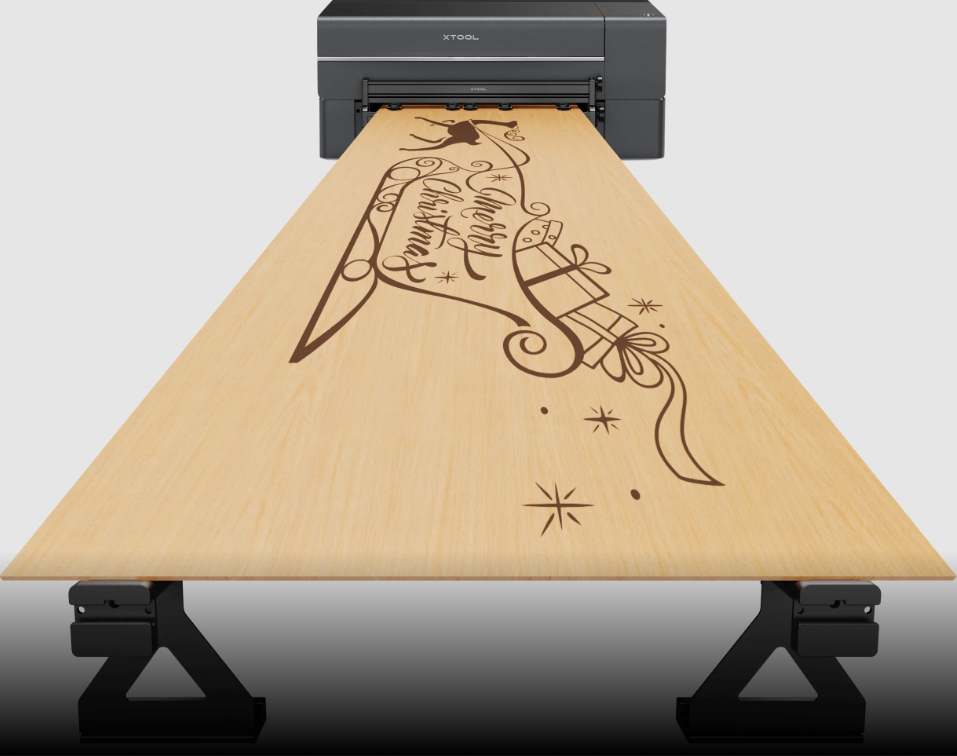

  Creations Made Longer and Higher





  More Thoughtful Design

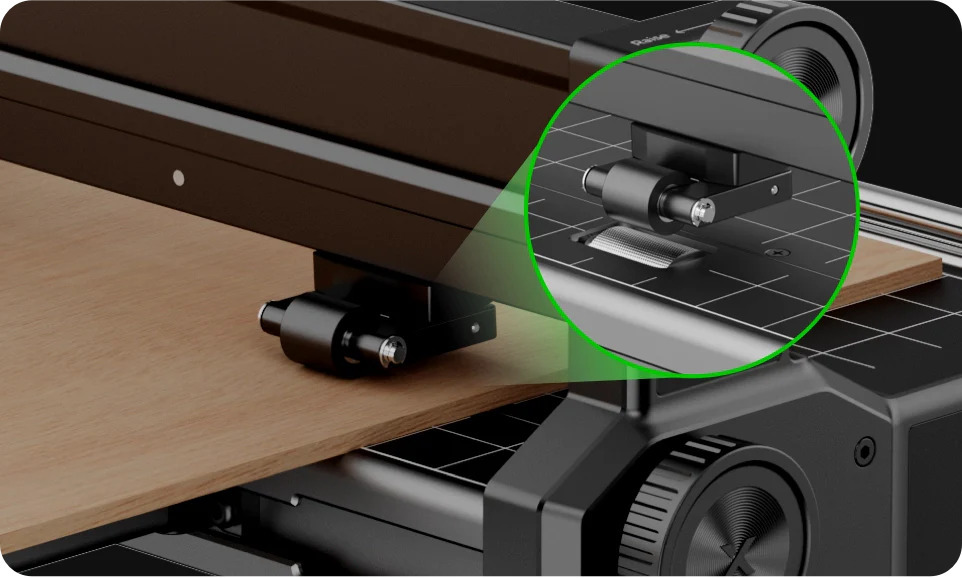

  Pressing Wheels, High Stability The upper and lower pressure wheels use anti-slip materials, and materials of various sizes can be easily fixed to prevent them from slipping or shifting during the conveying process.

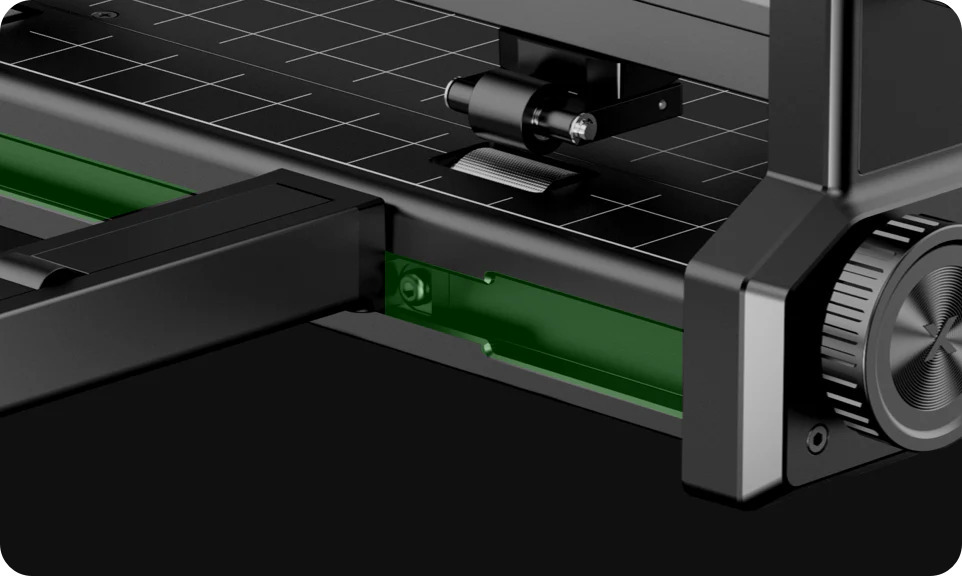

  Buckle Design, Easier Assembly With buckle design, the conveyor rail can be installed easily.

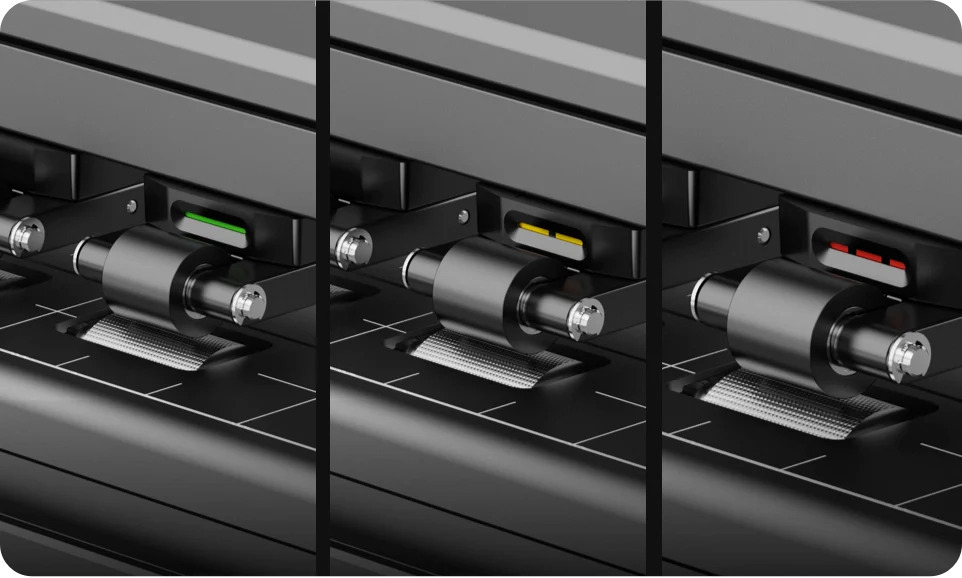

  Color Markings for Pressure Setting Different pressures need to be set for processing different materials. With color markings quickly matching each material pressure level, the pressure can be easily adjusted according to the material type.

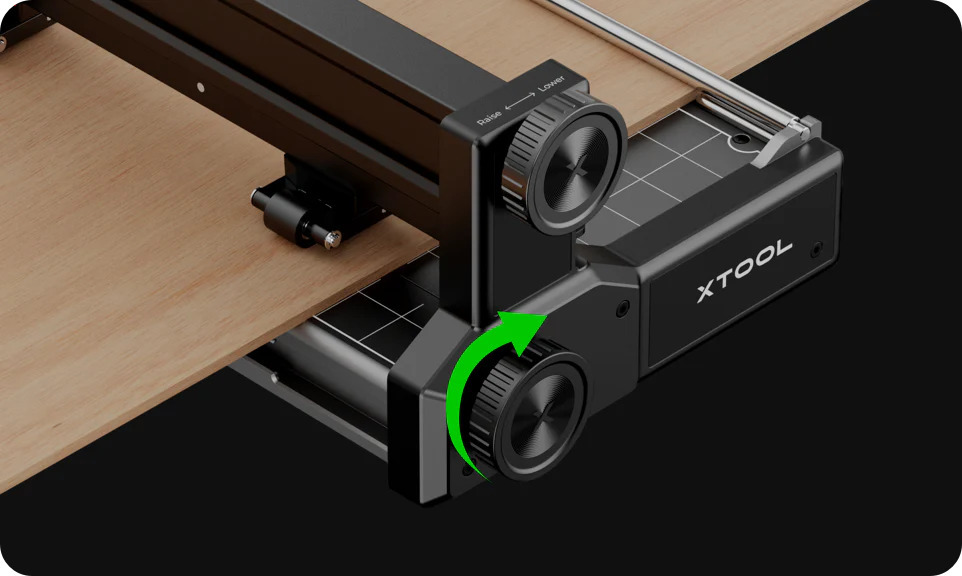

  Knob for Easy Positioning Adjustment Users can easily adjust the position of materials with the lower knob.

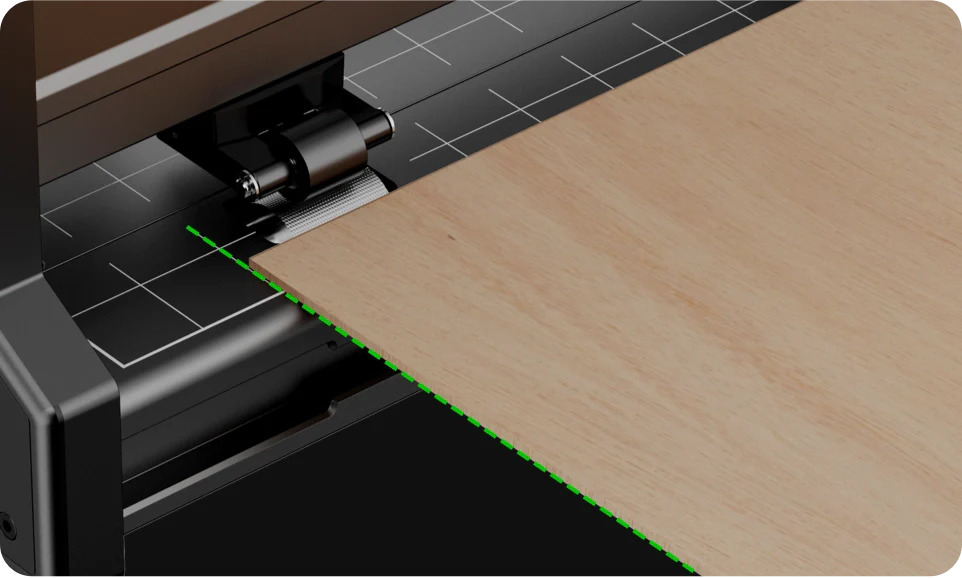

  Aligning Grids, for Precise Process Align the material with the grids on the conveyor feeder and convey the material to the device, so that the material is parallel to the conveying direction.



  Specification

  Product Infomation	Automatic Conveyor Feeder for xTool P2
  Applicable to	xTool P2
  Package Size	30.2''×10.1''×9.1'' (769×255×230mm）
  Product Size	27.1''×7.8''×5.3'' (687×200×135mm)
  Product Weight	8.045kg
  Max. speed	160mm/s
  Work Area
  Maximum Processing Area	118''×19.6'' (3000mm×500mm)
  Maximum Material Width	24.5'' (624mm)
  Minimum Material Width	2.5'' (65mm)
  Maximum Material Thickness	0.55'' (14mm)



  Conveyor Rail	Support Hard Material Length (including hanging in the air 30cm)	Support Processing Length (including hanging in the air 30cm)
  Basic (2 pairs)*1	39'' (1m)	34'' (0.85m)
  Basic (2 pairs)*1+add on kit (2 pairs)*1	64.5'' (1.64m)	58.6'' (1.49m)
  Basic (2 pairs)*1+add on kit (2 pairs)*2	90'' (2.3m)	84.6'' (2.15m)
  Basic (2 pairs)*1+add on kit (2 pairs)*3	118'' (3m)	112.2'' (2.85m)



  Soft Material

  Without Conveyor Rail, the material can be hung down on both sides of the working area of conveyor feeder.（Some soft materials need to be processed with PET tape

• Reviews
• Questions and Answers
• FAQ

  Does the conveyor rail need to be purchased separately?

  There are 2 pairs as standard, and the support hard material length is 39 inches. Add conveyor rails according to the length of the material to be processed. Make sure that the part of a material hung in the air is no longer than 30 cm. To use more conveyor rails, you need to purchase them.

  Unexpected sounds are made at the pinch rollers, what can I do?

  Check whether the pressure of the pinch rollers is set too high. Setting the pressure too high may cause machine faults. When this happens, reduce the pressure of the pinch rollers.

  Note: If you are using xTool P2, the motors are locked when the lid is closed, and you can't adjust the position of the material. Open the lid of the machine, raise the pinch rollers, and then adjust the position of the material.

  What is the maximum thickness of plywood supported by the conveyor feeder?

  The maximum thickness of plywood supported is 14 mm. When you process a piece of plywood thicker than 9 mm, however, the conveying accuracy significantly depends on the flatness of the plywood. Therefore, to process a piece thicker than 9 mm, you need to ensure that it is flat without warped edges or being twisted.

  How do I ensure the material processing accuracy?

  1. Use flat materials without warped edges, arched parts, or being twisted, when possible.

  2. Soft and flexible materials are easy to distort, may not be accurately conveyed, and are easy to stick in gaps. For soft and flexible materials of thickness less than 3 mm, you are advised to stick PET tape on its back before processing.

  Can I use the conveyor feeder to process corrugated paper?

  You are advised not to process corrugated paper with the conveyor feeder. To ensure the accuracy of conveying the corrugated paper, high pressure is required, which may damage the surface of the corrugated paper.

  How do I clean the conveyor feeder?

  1. If residues (such as wood chips) accumulate under the pinch rollers, you can turn over the conveyor feeder, and clean the pinch rollers with a brush (such as a toothbrush) while turning the knob.

  2. If the smoke produced due to material processing is not exhausted in time, the working area may become dirty. You can clean it by using tissues moistened with alcohol.

• Videos

  Unboxing xTool P2 Automatic Conveyor Feeder
