Brand: xTool
SKU: #XT-P5010291This item has been discontinued.
*Ships direct from manufacturer, Shipping fees may apply
*Coupon codes are not applicable for this item
Watch Video
Easy Financing
Instant Approval
PRODUCT DETAILS
Click an item to expand and learn more
The working area of 118''×18.5'', along with the S1 Conveyor Feeder, totally makes batch engraving and cutting much easier.
*Maximum length requires additional purchase of 8 pairs of rails.
Automatic engraving path planning and material conveying; Farewell to manual material feeding and accuracy deviation.
|

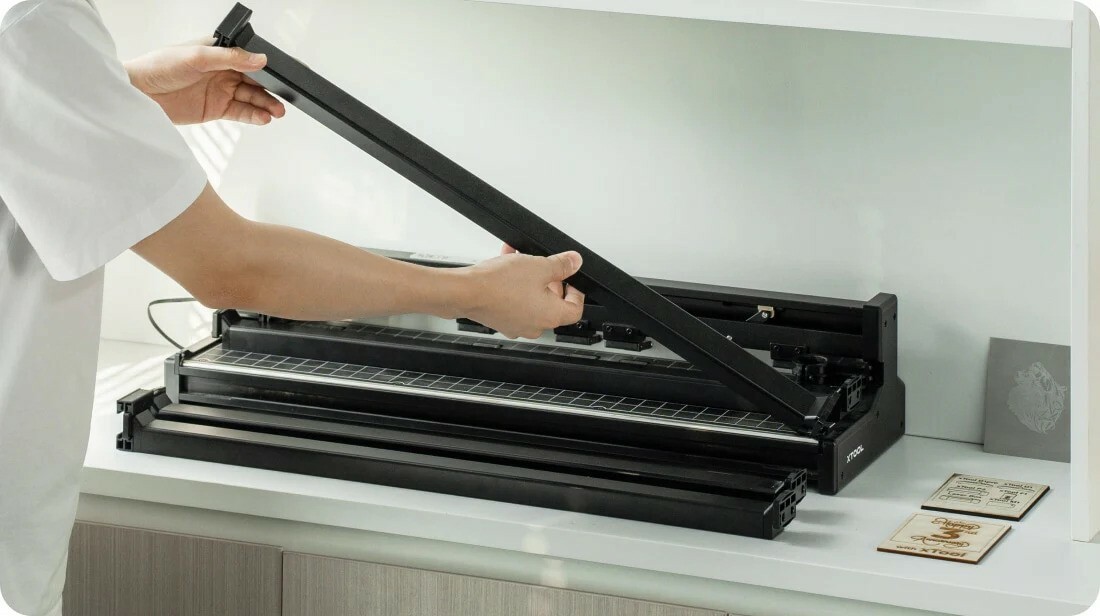

Easy Disassembly and
|
Ensure safety while improving processing results.

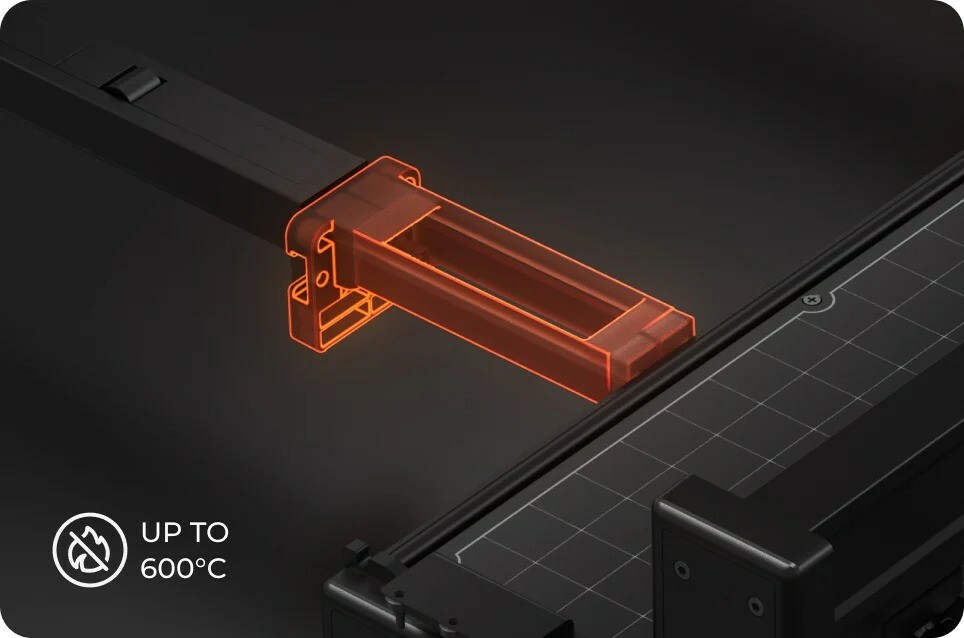

Safety Materials: resistant to temperatures up to 600°C.
Cleaner Effects: breathable design of the processing area greatly reduces the burn marks.

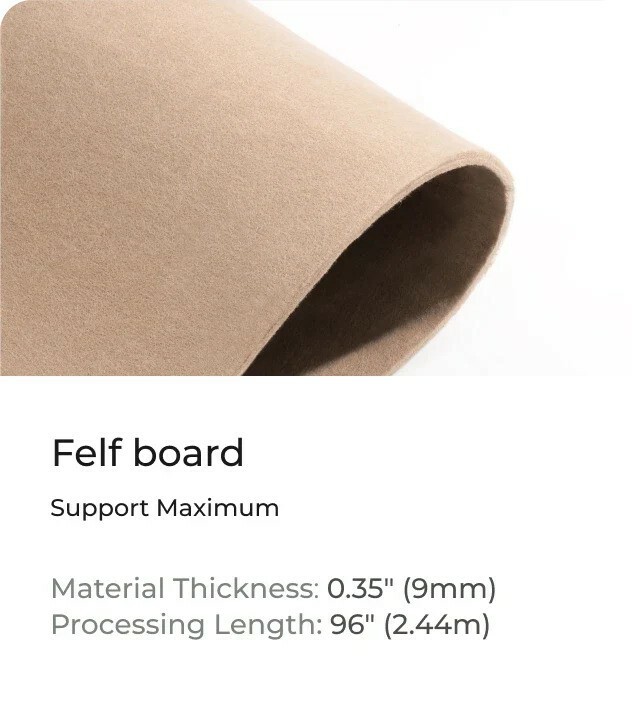

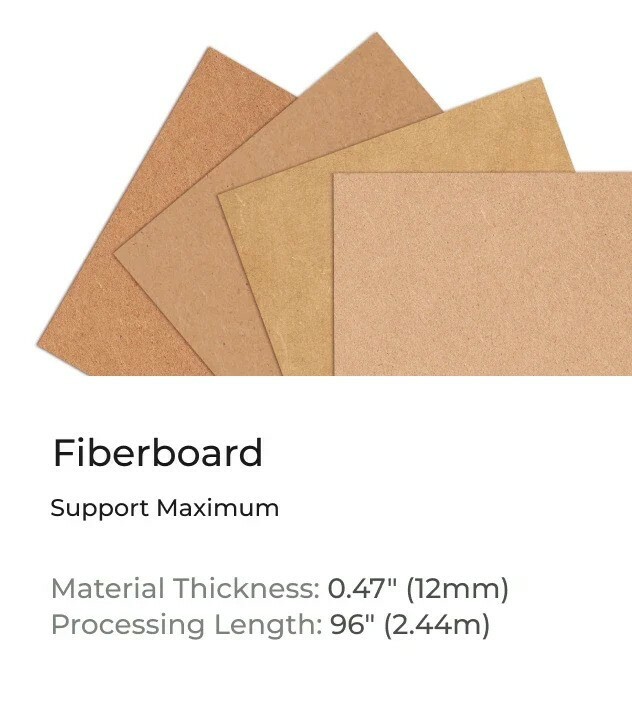

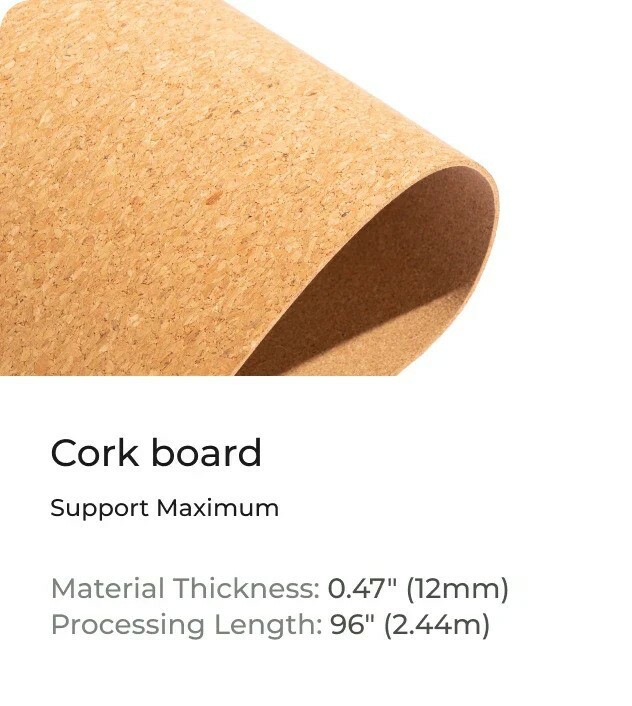

The material range is expanded from plywood, acrylic and fiberboard to soft materials like felt, cork and EVA.
Hard board
Soft and thick board
![]() |
Pressing Wheels, High Stability The upper and lower pressure wheels use anti-slip materials, and materials of various sizes can be easily fixed to prevent them from slipping or shifting during the conveying process. |
Buckle Design, Easier Assembly With buckle design, the conveyor rail can be installed easily. |
![]() |
![]() |

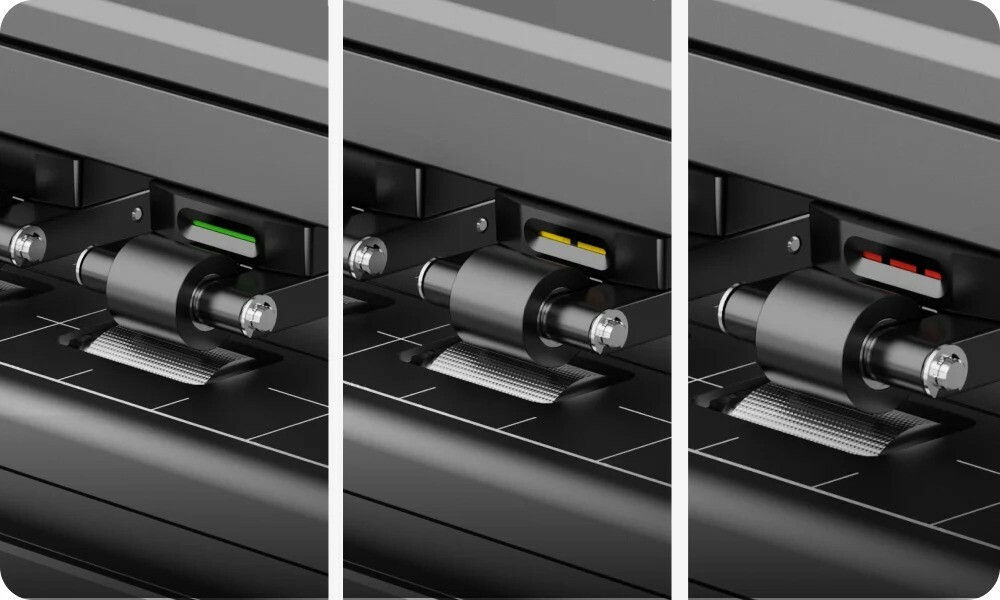

Color Markings for Pressure Setting Different pressures need to be set for processing different materials. With color markings quickly matching each material pressure level, the pressure can be easily adjusted according to the material type. |

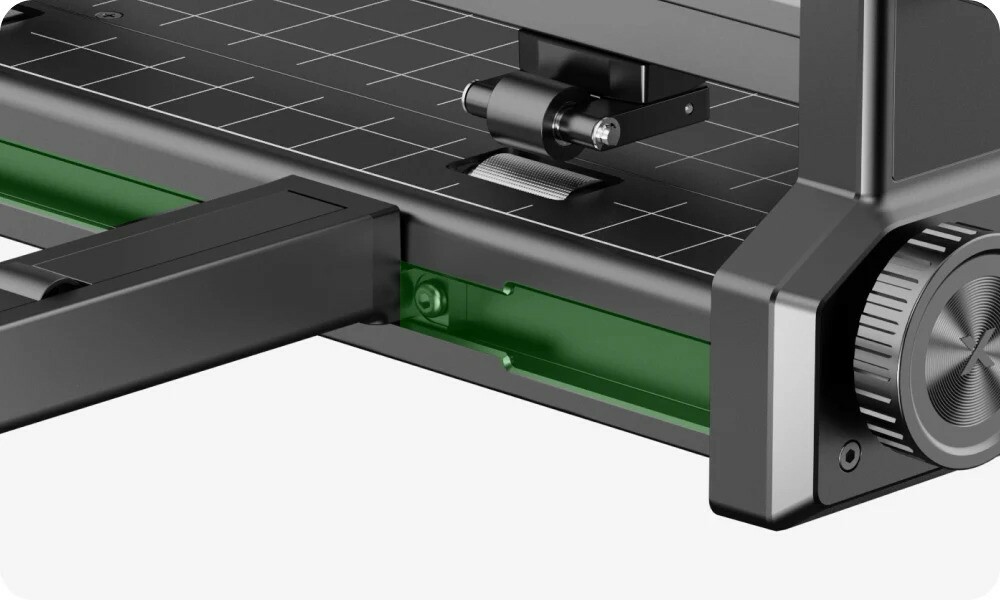

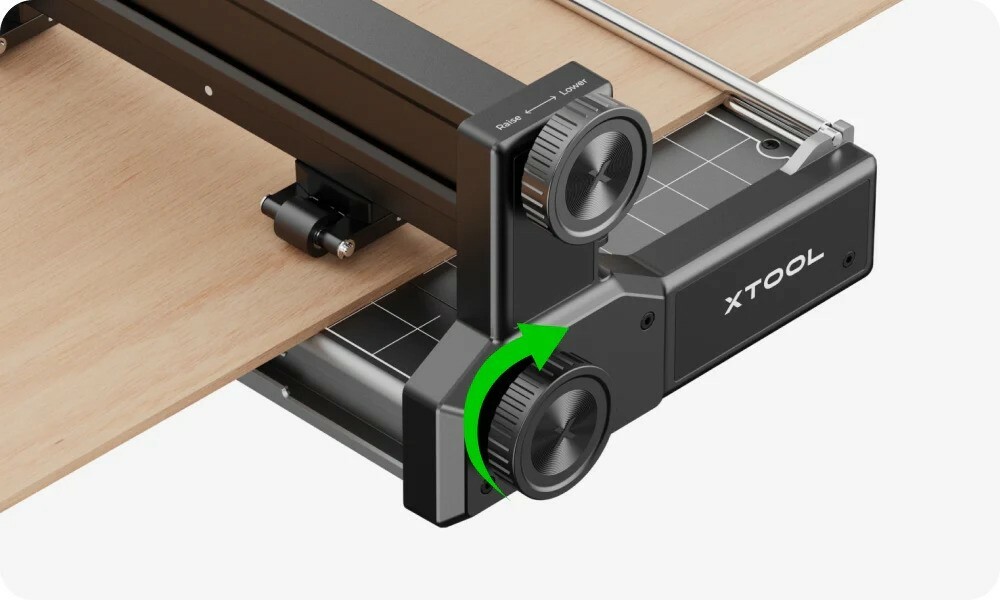

Knob for Easy Positioning Adjustment Users can easily adjust the position of materials with the lower knob. |
![]() |
![]() |
Aligning Grids, for Precise Process Align the material with the grids on the conveyor feeder and convey the material to the device, so that the material is parallel to the conveying direction. |
Product Infomation | Automatic Conveyor Feeder for xTool S1 |
---|---|
Applicable to | xTool S1 |
Package Size | 29.8''*10.7''*8.5'' (757*271×*216mm) |
Product Size | 24.7''*7.9''*5.3'' (628*200*135mm) |
Product Weight | 7.8kg |
Max. speed | 160mm/s |
Work Area | |
Maximum Processing Area | 118''×18.5'' (3000*470mm) |
Maximum Material Width | "21.5'' (545mm)" |
Minimum Material Width | 2.5'' (65mm) |
Maximum Material Thickness | 0.55'' (14mm) |
Conveyor Rail | Support Hard Material Length (including hanging in the air 30cm) |
Support Processing Length (including hanging in the air 30cm) |
---|---|---|
Basic (2 pairs)*1 | 39'' (1m) | 34'' (0.85m) |
Basic (2 pairs)*1+add on kit (2 pairs)*1 | 64.5'' (1.64m) | 58.6'' (1.49m) |
Basic (2 pairs)*1+add on kit (2 pairs)*2 | 90'' (2.3m) | 84.6'' (2.15m) |
Basic (2 pairs)*1+add on kit (2 pairs)*3 | 118'' (3m) | 112.2'' (2.85m) |
Soft Material
Without Conveyor Rail, the material can be hung down on both sides of the working area of conveyor feeder.(Some soft materials need to be processed with PET tape)
